ZHCSG14D October 2015 – October 2017 LMK61A2-100M , LMK61A2-125M , LMK61A2-156M , LMK61A2-312M , LMK61A2-644M , LMK61E0-050M , LMK61E0-155M , LMK61E0-156M , LMK61E2-100M , LMK61E2-125M , LMK61E2-156M , LMK61E2-312M , LMK61I2-100M
PRODUCTION DATA.
- 1 特性
- 2 應用
- 3 說明
- 4 修訂歷史記錄
- 5 Pin Configuration and Functions
-
6 Specifications
- 6.1 Absolute Maximum Ratings
- 6.2 ESD Ratings
- 6.3 Recommended Operating Conditions
- 6.4 Thermal Information
- 6.5 Electrical Characteristics - Power Supply
- 6.6 LVPECL Output Characteristics
- 6.7 LVDS Output Characteristics
- 6.8 HCSL Output Characteristics
- 6.9 OE Input Characteristics
- 6.10 Frequency Tolerance Characteristics
- 6.11 Power-On/Reset Characteristics (VDD)
- 6.12 PSRR Characteristics
- 6.13 PLL Clock Output Jitter Characteristics
- 6.14 Typical 156.25-MHz Output Phase Noise Characteristics
- 6.15 Additional Reliability and Qualification
- 6.16 Typical Characteristics
- 7 Parameter Measurement Information
- 8 Power Supply Recommendations
- 9 Layout
- 10器件和文檔支持
- 11機械、封裝和可訂購信息
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- SIA|6
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
7.1 Device Output Configurations

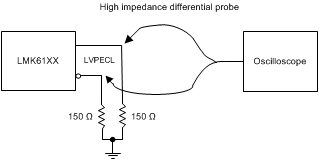

Figure 10. LVPECL Output DC Configuration During Device Test
Figure 11. LVDS Output DC Configuration During Device Test

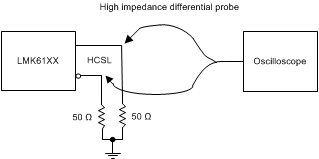

Figure 12. HCSL Output DC Configuration During Device Test

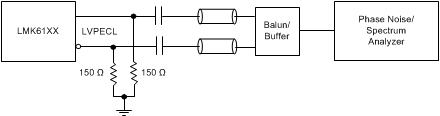

Figure 13. LVPECL Output AC Configuration During Device Test
Figure 14. LVDS Output AC Configuration During Device Test

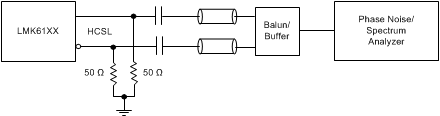

Figure 15. HCSL Output AC Configuration During Device Test

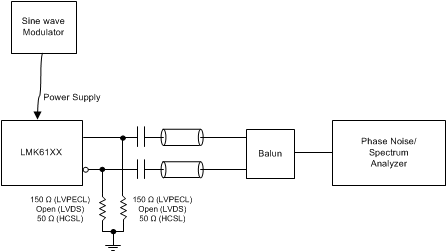

Figure 16. PSRR Test Setup
Figure 17. Differential Output Voltage and Rise/Fall Time
