ZHCSLS7A December 2020 – January 2022 LMK1C1106 , LMK1C1108
PRODUCTION DATA
- 1 特性
- 2 應用
- 3 說明
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
- PW|16
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
7 Parameter Measurement Information

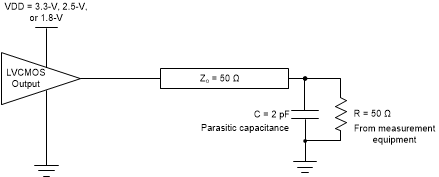

Figure 7-1 Test Load
Circuit

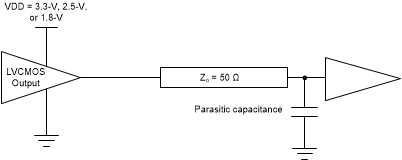

Figure 7-2 Application Load
With 50-Ω Termination

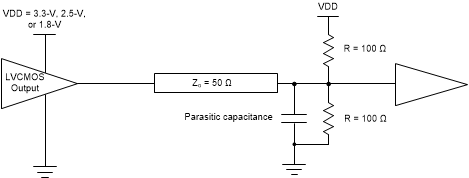

Figure 7-3 Application Load
With Termination

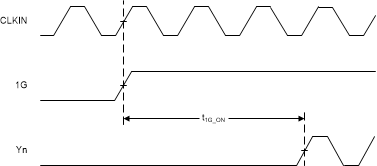

Figure 7-4 t1G_ON
Output Enable Time

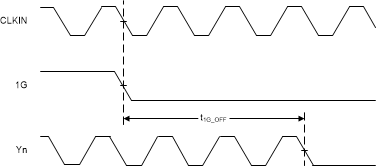

Figure 7-5 t1G_OFF Output Disable Time

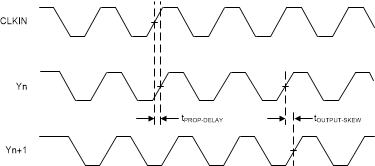

Figure 7-6 Propagation Delay
tPROP-DELAY and Output Skew tOUTPUT-SKEW
Figure 7-7 Rise and Fall
Time tRISE-FALL
