8 Parameter Measurement Information

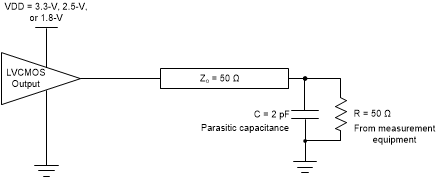

Figure 8-1 Test
Load Circuit

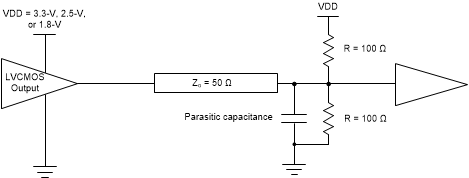

Figure 8-2 Application Load With 50-Ω Termination

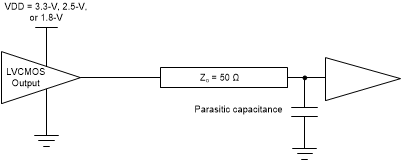

Figure 8-3 Application Load With Termination

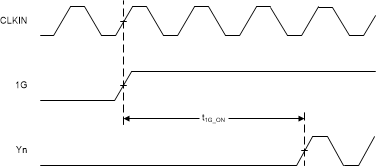

Figure 8-4 t1G_ON Output Enable Time
Figure 8-5 t1G_OFF Output Disable Time

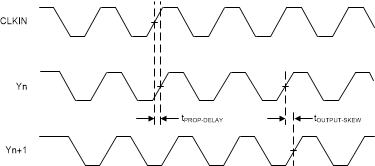

Figure 8-6 Propagation Delay tPROP-DELAY and Output Skew
tOUTPUT-SKEW
Figure 8-7 Rise
and Fall Time tRISE-FALL
