10.3.3 Application Curves

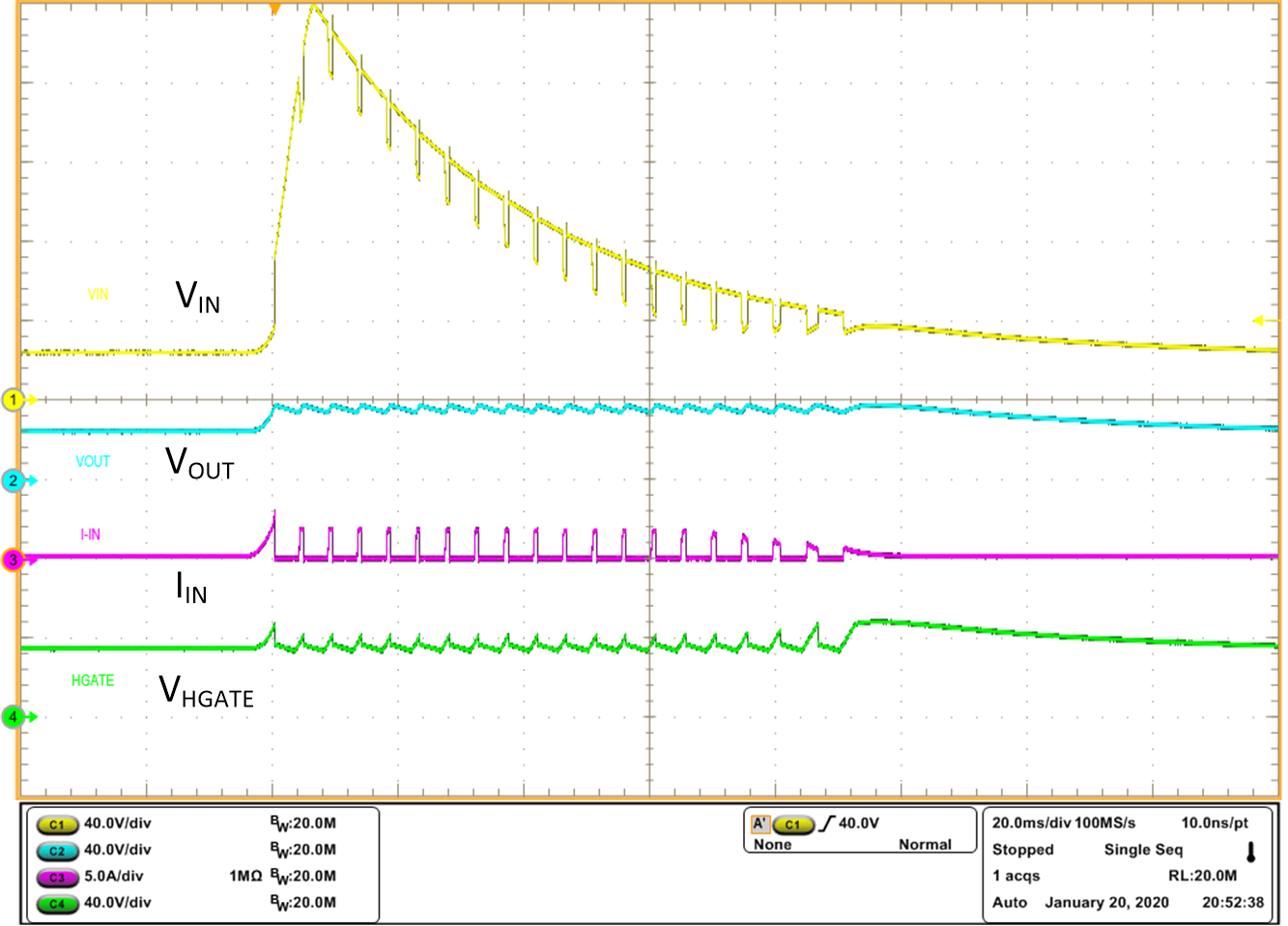

Figure 10-26 Unsuppressed Load Dump 200 V - Output
Clamp

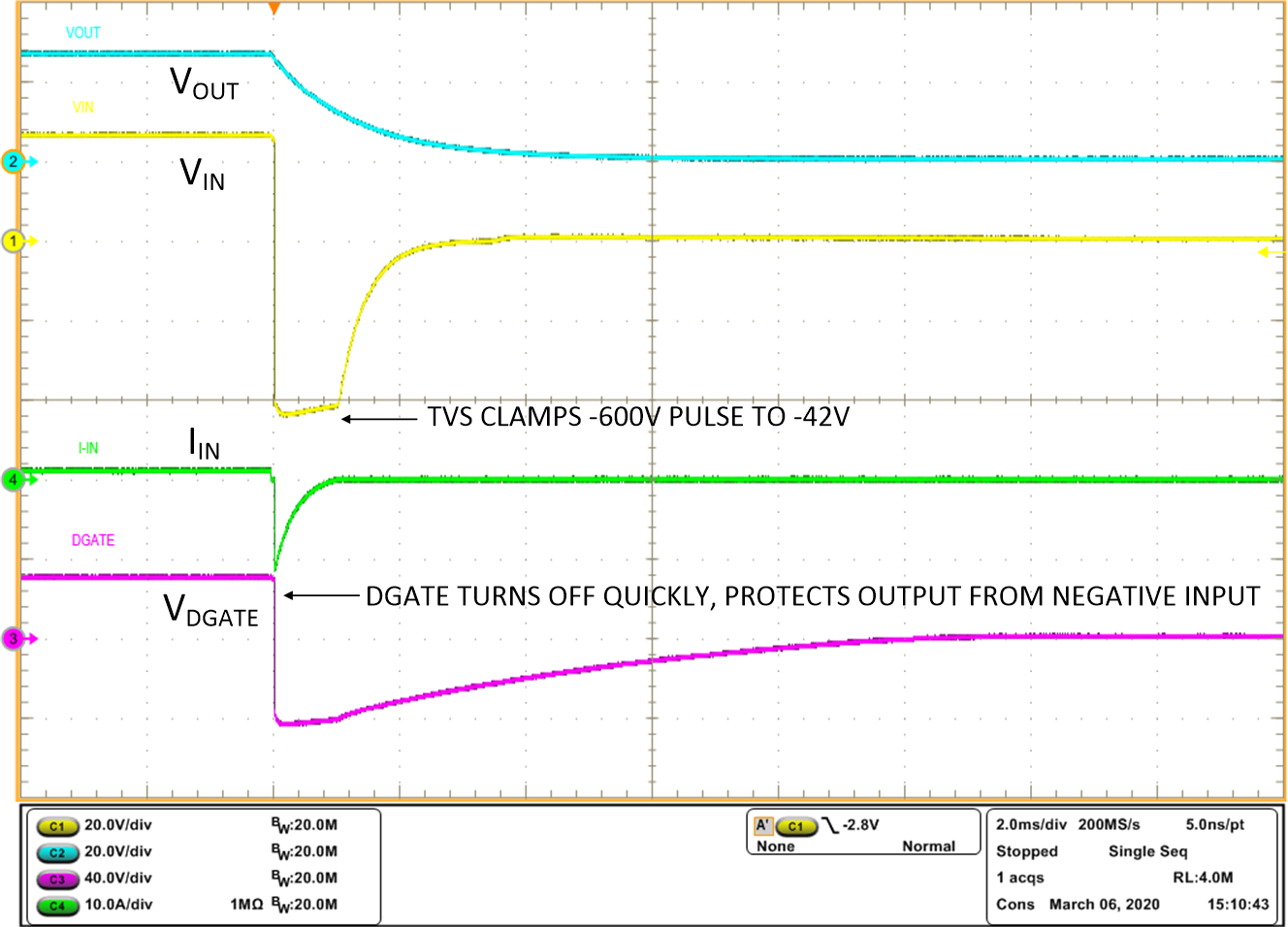

Figure 10-28 ISO 7637-2 Pulse 1 –600 V 50 Ω

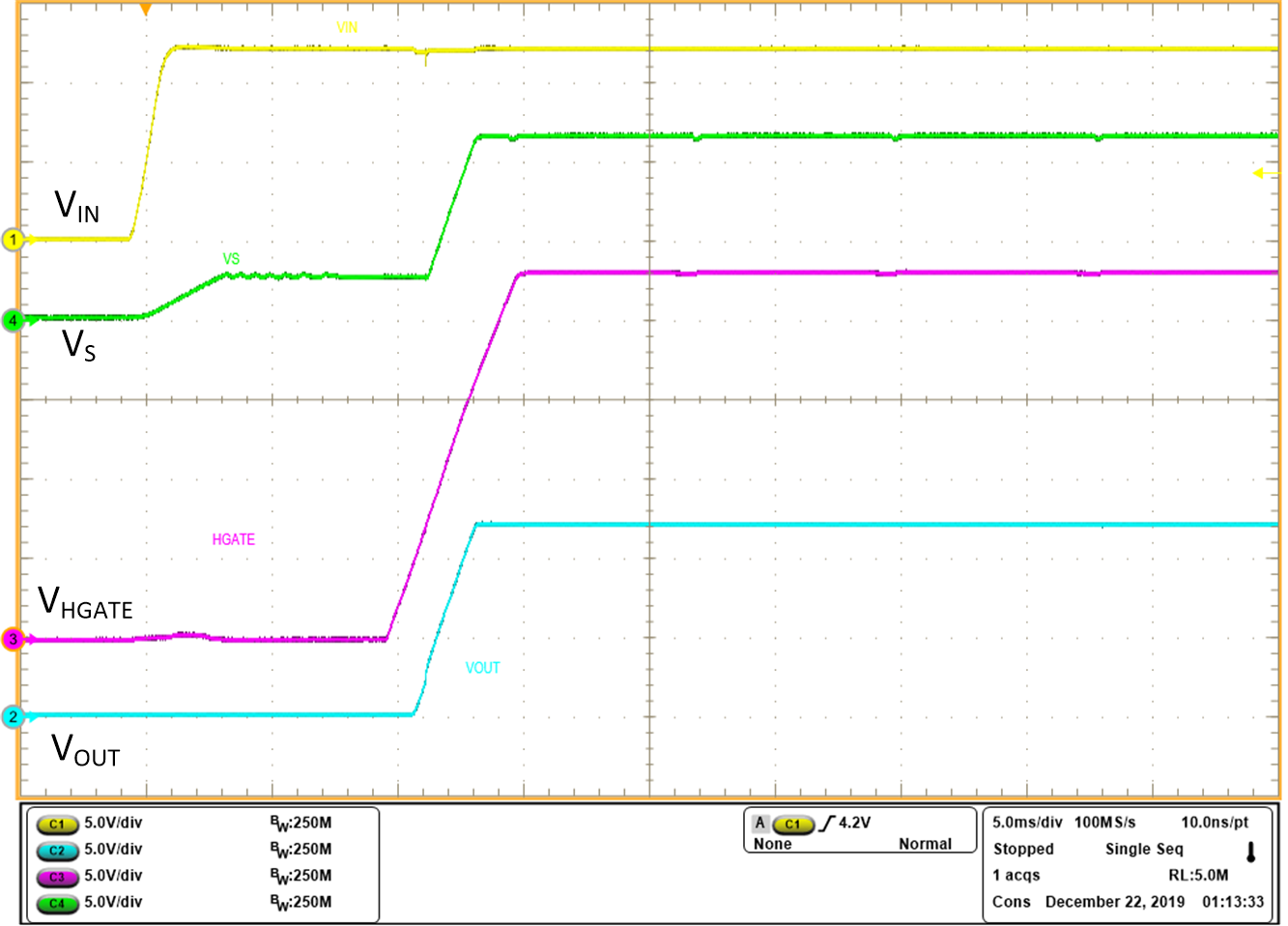

Figure 10-30 Power up 12 V - HGATE and Output

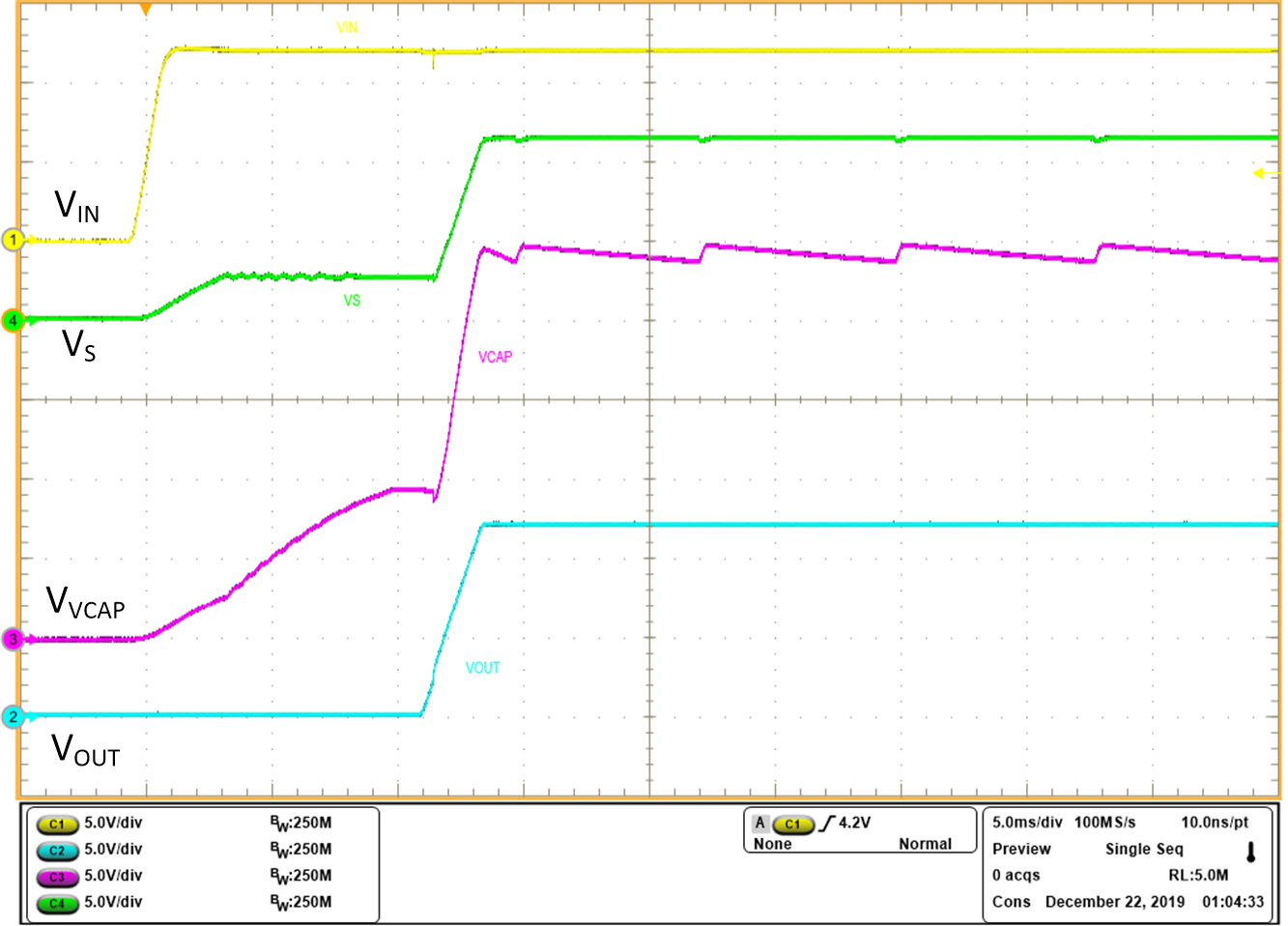

Figure 10-32 Power up 12 V - Charge Pump VCAP
Figure 10-27 Unsuppressed Load Dump 200 V - Output
Cut-off
Figure 10-29 ISO 7637-2 Pulse 1 –600 V 50 Ω
Figure 10-31 Power up 12 V - DGATE and A

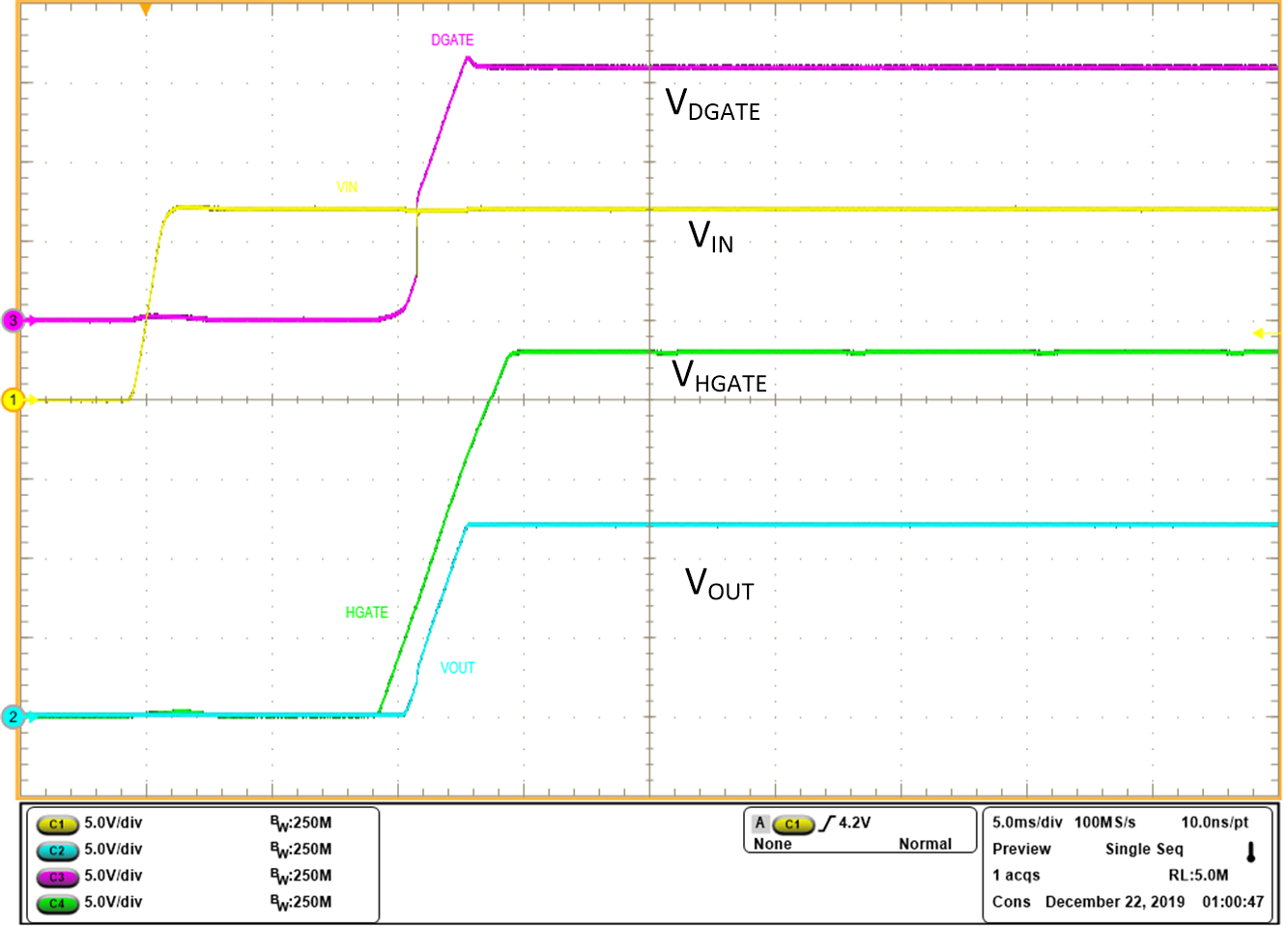

Figure 10-33 Power up 12 V - DGATE and HGATE
