3 說明
LM5157x-Q1 器件是一款具有集成式 50V、6.5A (LM5157-Q1) 或 50V、4.33A (LM51571-Q1) 電源開關和寬輸入范圍的非同步升壓轉換器。
該器件可用于升壓、SEPIC 和反激式拓?fù)?。該器件可由電壓至少?2.9V 的單節電池啟動。如果 BIAS 引腳的電壓高于 2.9V，該器件可在低至 1.5V 的輸入電源電壓下運行。
器件信息
| 器件型號 | 封裝(1) | 封裝尺寸（標稱值） |
|---|---|---|
| LM5157-Q1 | WQFN (16) | 3.00mm × 3.00mm |
| LM51571-Q1 |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

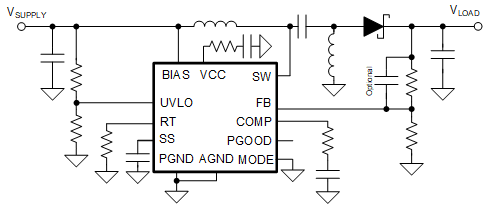

典型 SEPIC 應用
