8.6 Typical Characteristics

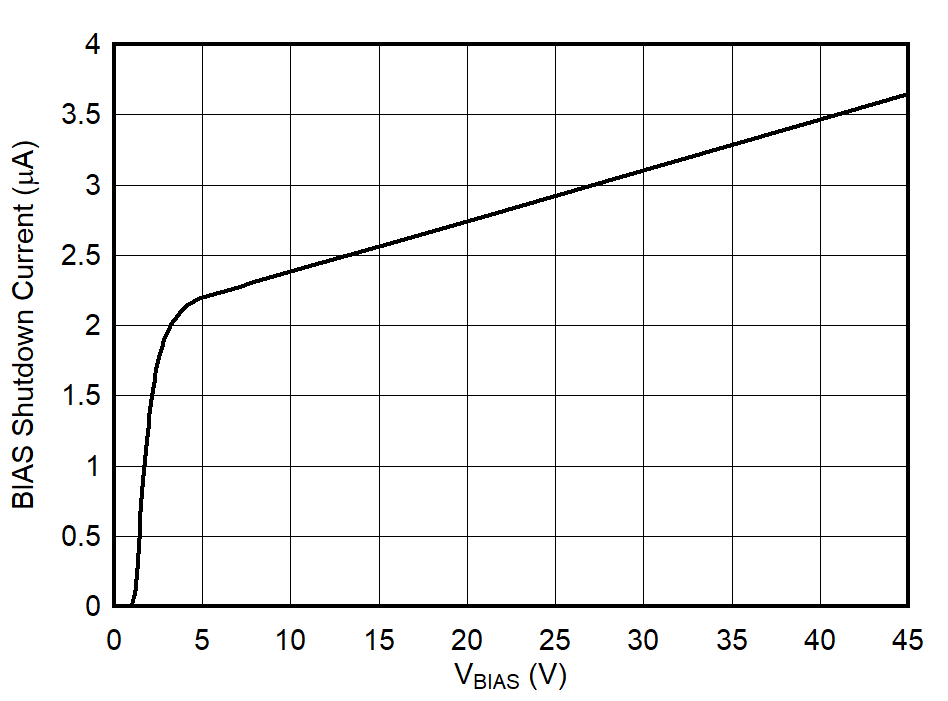

Figure 8-1 BIAS
Shutdown Current vs VBIAS
Figure 8-3 BIAS
Operating Current vs Temperature

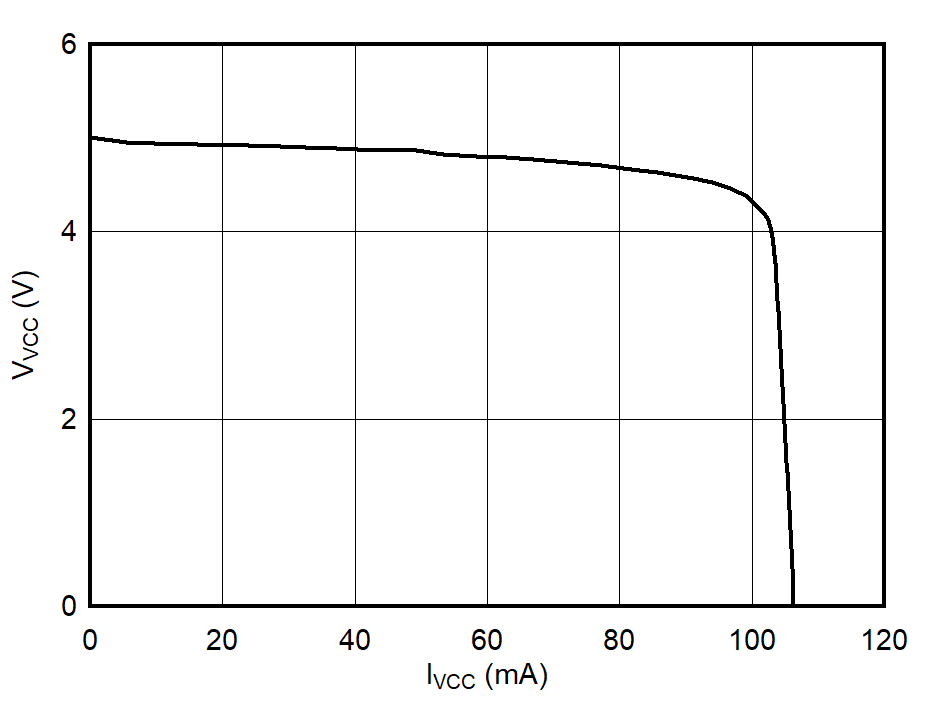

Figure 8-5 VVCC vs
IVCC

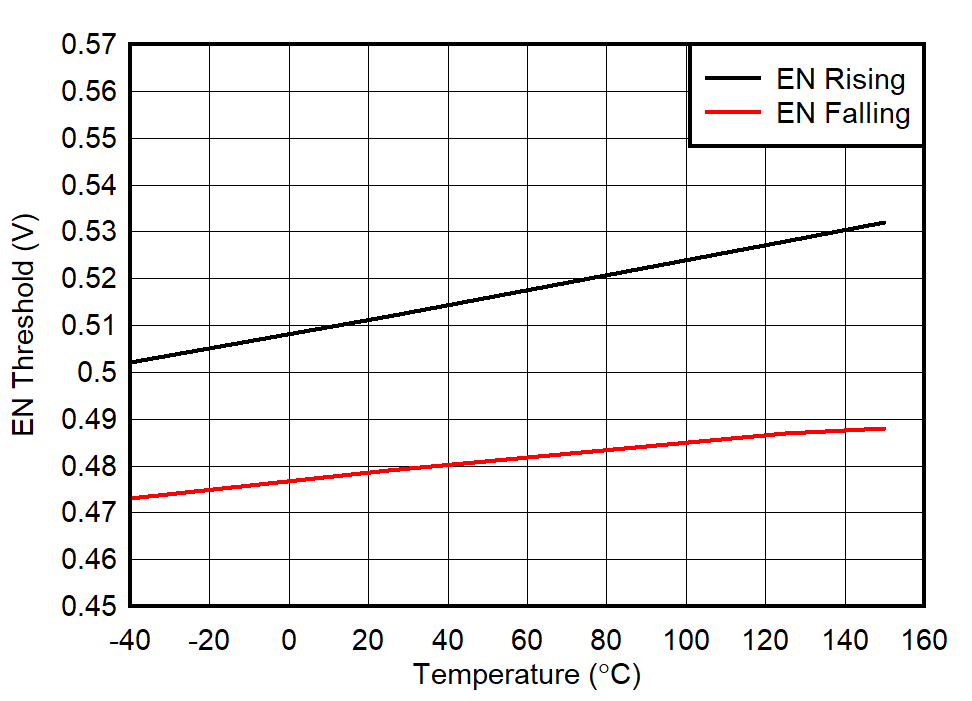

Figure 8-7 EN
Threshold vs Temperature
Figure 8-9 FB
Reference vs Temperature
Figure 8-11 Frequency vs Temperature

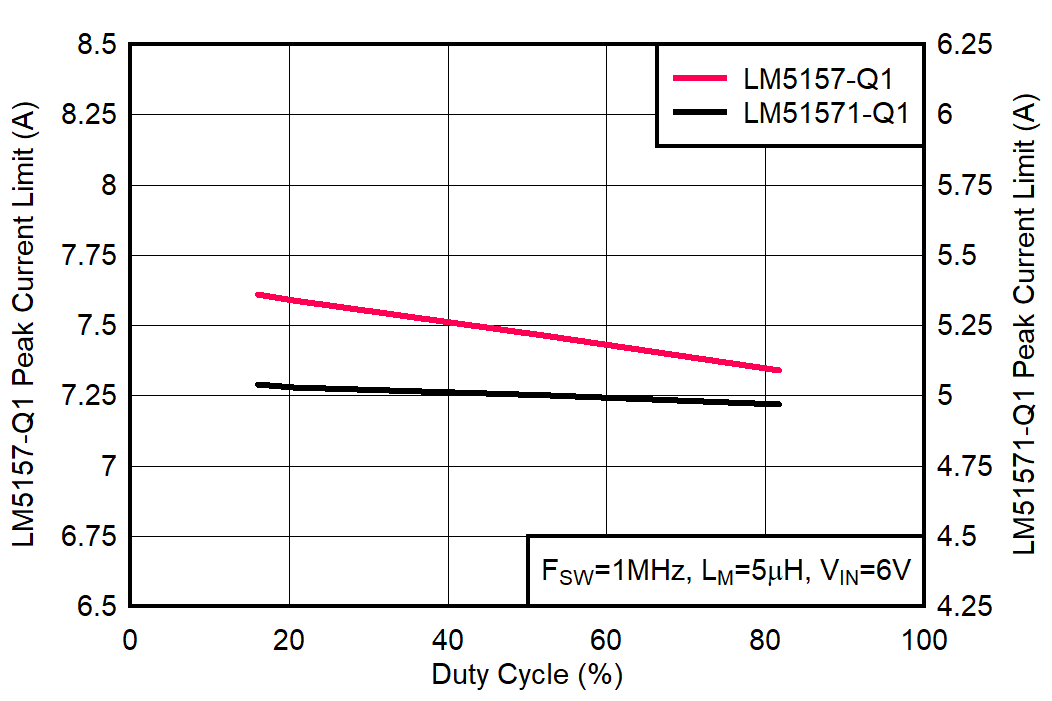

Figure 8-13 Peak
Current Limit vs Duty Cycle
Figure 8-15 Minimum On Time vs Frequency
Figure 8-2 BIAS
Shutdown Current vs Temperature
Figure 8-4 VVCC vs VBIAS

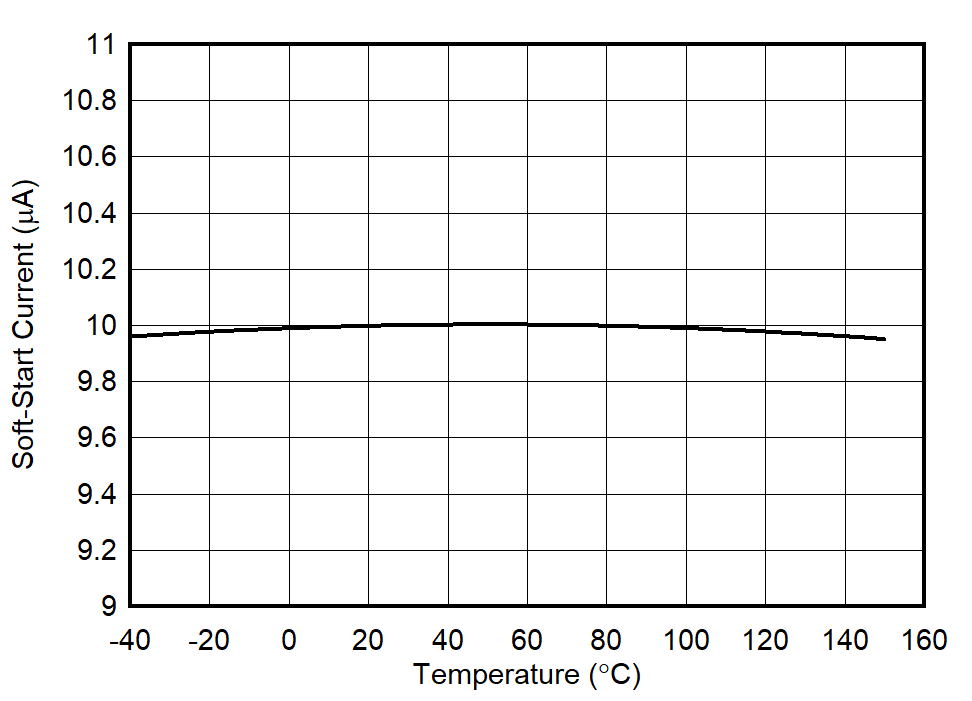

Figure 8-6 ISS vs Temperature

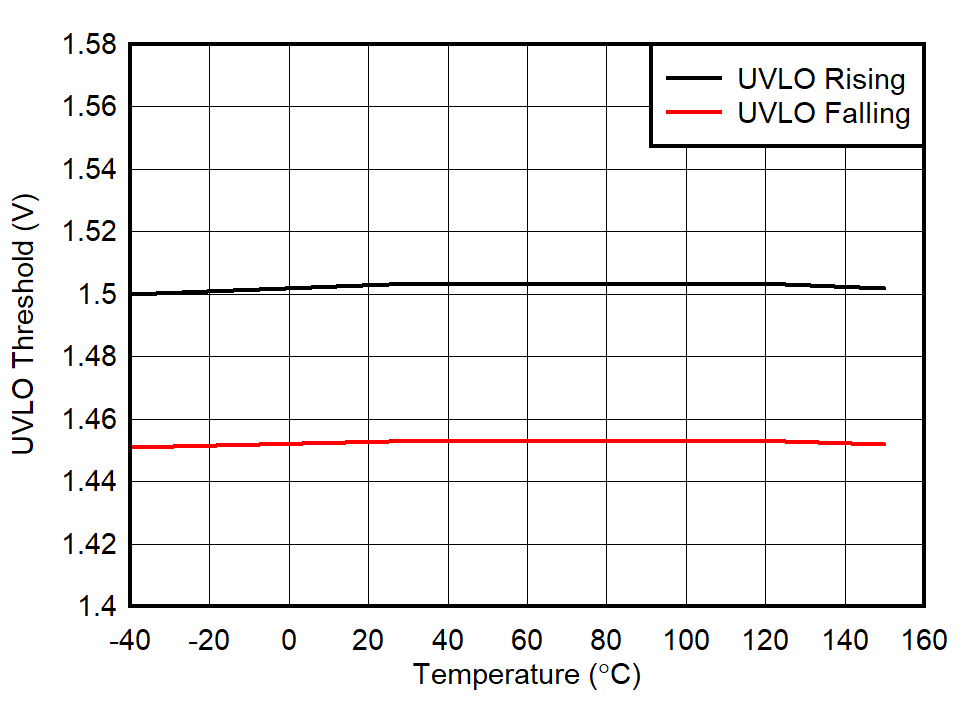

Figure 8-8 UVLO
Threshold vs Temperature

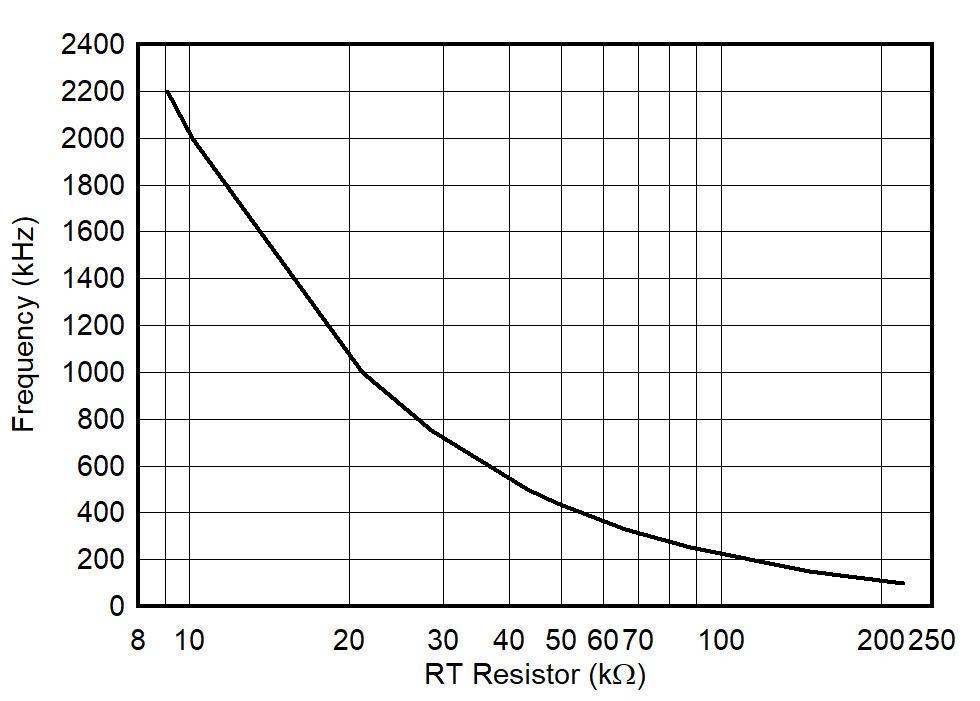

Figure 8-10 Frequency vs RT Resistance

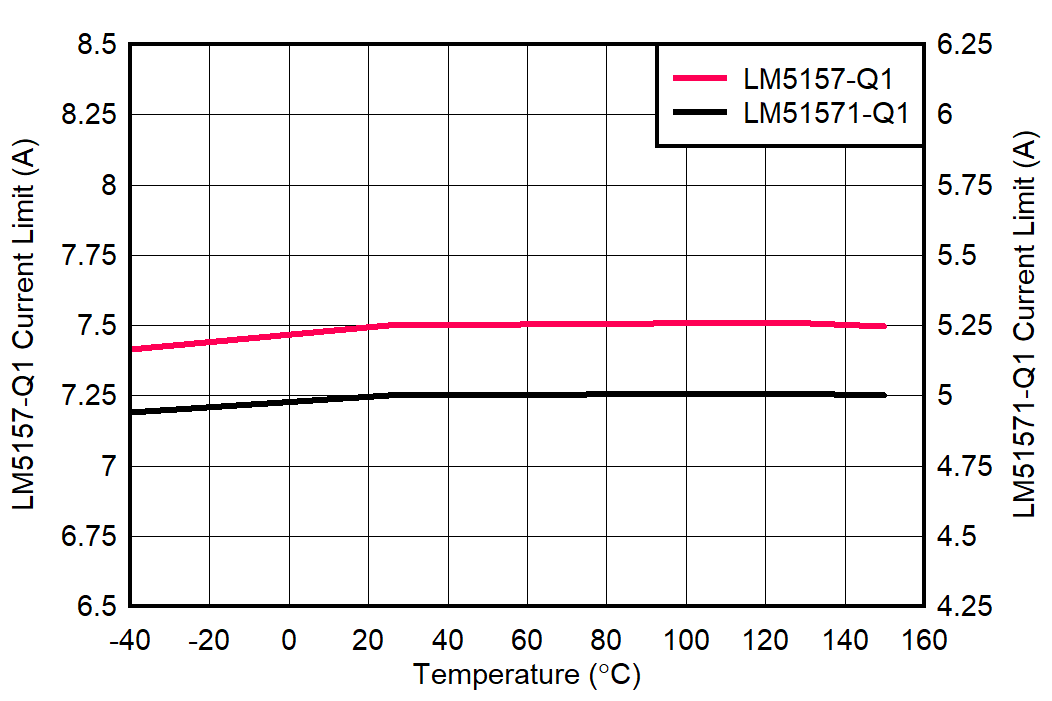

Figure 8-12 Current Limit Threshold vs Temperature
Figure 8-14 Internal MOSFET Drain Source On-state Resistance vs Temperature

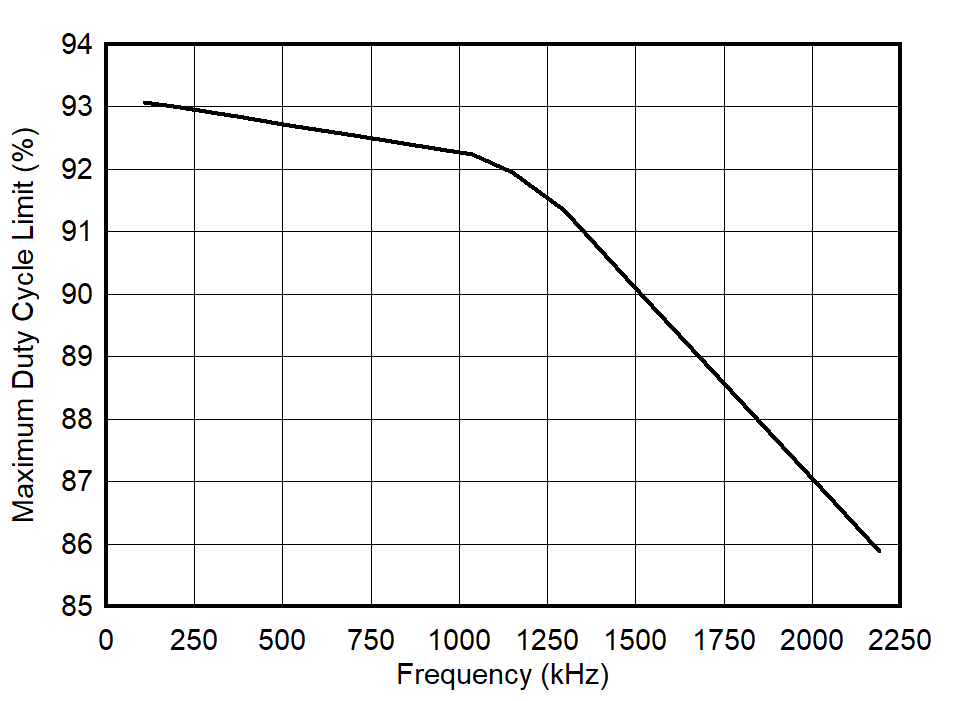

Figure 8-16 Maximum Duty Cycle Limit vs Frequency
