8.2.3 Application Curves

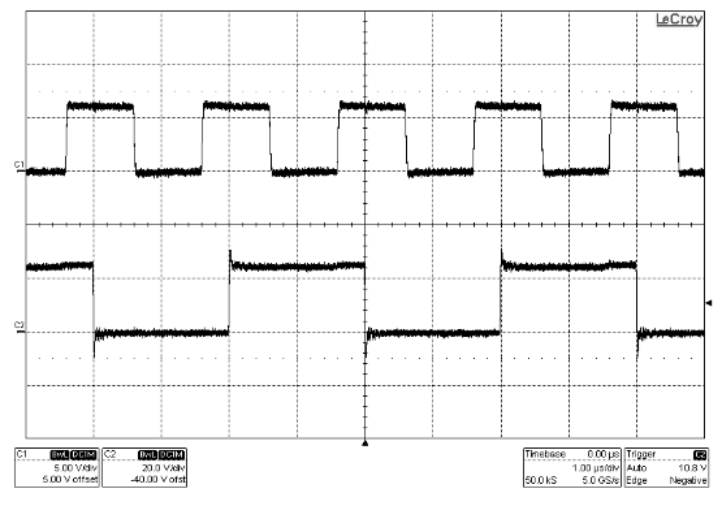

| C1: FSYNC | C2: SW | VSUPPLY = 12 V, |
| FSYNC = 500 kHz |

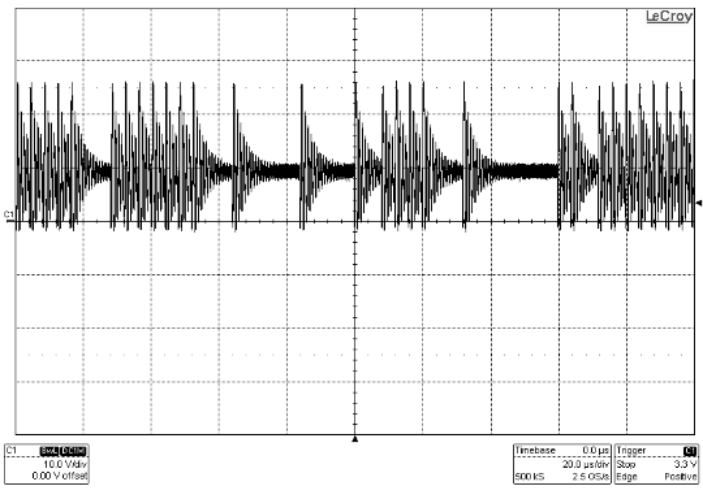

| C1:SW | VSUPPLY = 12 V | ILOAD = 0 A |

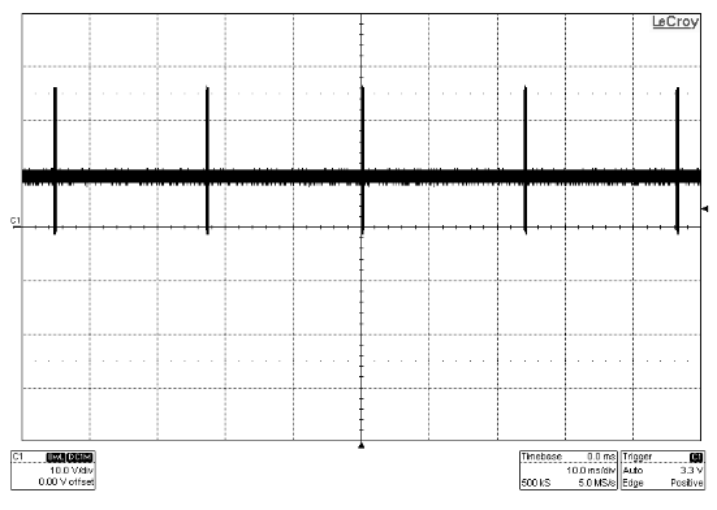

| C1:SW | VSUPPLY = 12 V | ILOAD = 0 A |

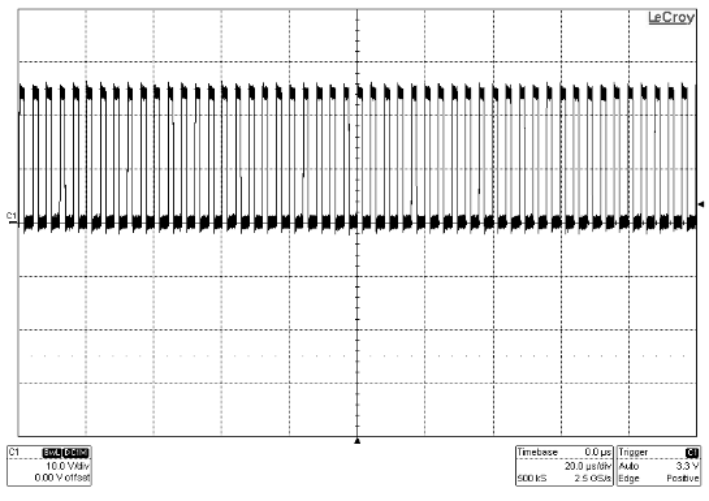

| C1:SW | VSUPPLY = 12 V | ILOAD = 0 A |
| C1:SW | VSUPPLY = 12 V | ILOAD = 0 A |

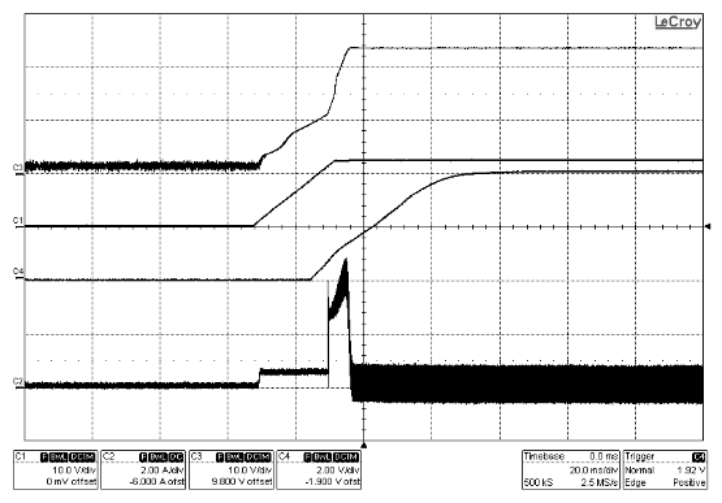

| C1: VSUPPLY, C2: Inductor current | VSUPPLY = 12 V | ||
| C3: VOUT, C4: SS | ILOAD = 0 A |
