6.6 Typical Characteristics
At TA = 25°C, unless otherwise stated.
| VOUT=12 V | Fsw=300 kHz | L1=4.7 μH |
| IOUT=5 A |

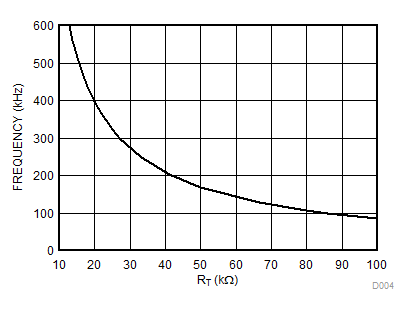

Figure 6-3 Oscillator Frequency
Figure 6-5 IIN Operating vs VIN

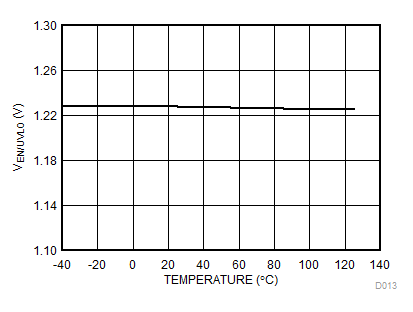

Figure 6-7 ENABLE/UVLO Rising Threshold vs Temperature
Figure 6-9 Boost Current Limit vs Temperature
| VOUT=12 V | VIN=11 V | |
| VOUT=12 V | VIN=13 V | |

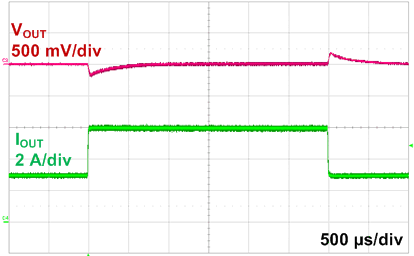

| VIN=6 V | VOUT=12 V | Load 3A to 6A |

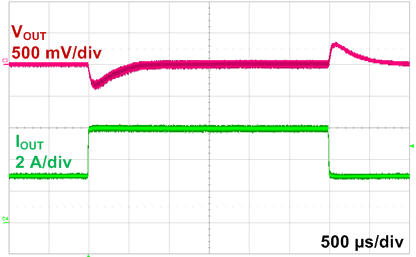

| VIN=24 V | VOUT=12 V | Load 3A to 6A |
| VIN=24 V | VOUT=12 V | Hiccup Enabled |
| VOUT =12 V | Fsw=300 kHz | L1=4.7 μH |
Figure 6-4 VCC vs VIN
Figure 6-6 IIN Shutdown vs VIN
Figure 6-8 Buck Current Limit vs Temperature

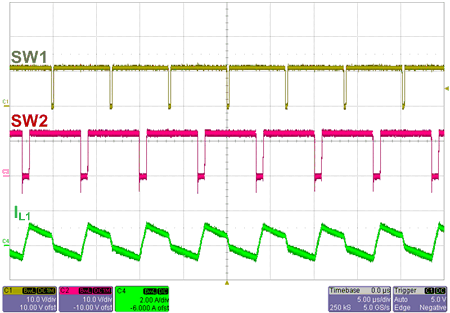

| VOUT=12 V | VIN=6 V | |

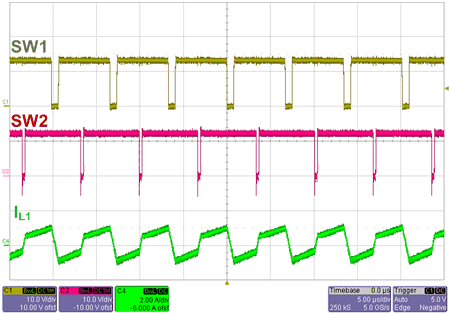

| VOUT=12 V | VIN=12 V | |

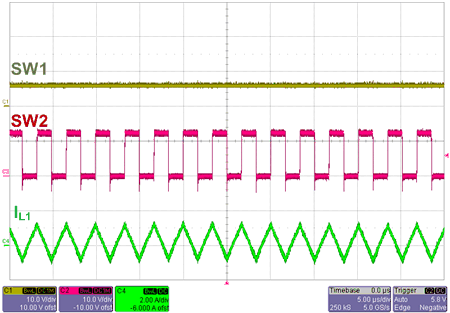

| VOUT=12 V | VIN=24 V | |
| VIN=12 V | VOUT=12 V | Load 3A to 6A |

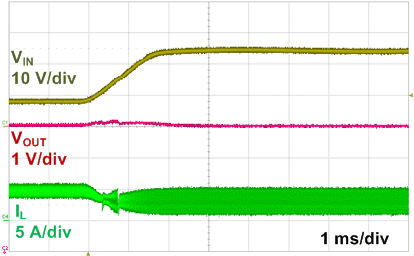

| VIN=8 V to 24 V | VOUT=12 V | IOUT=3A |

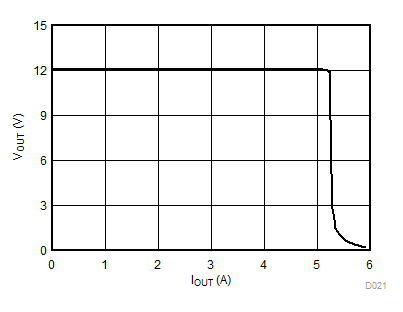

| VIN=24 V | RSNS=10 mΩ | |
