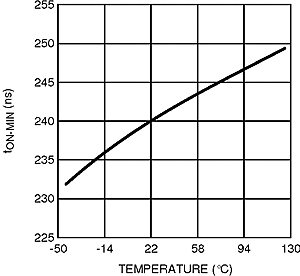

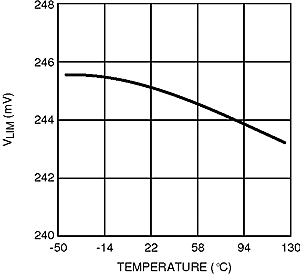

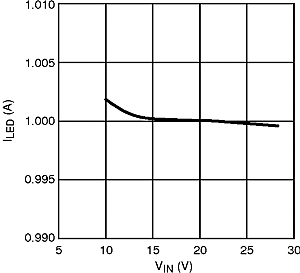

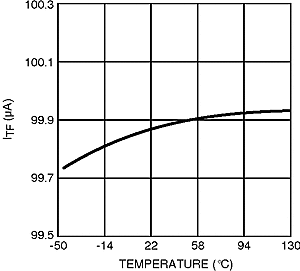

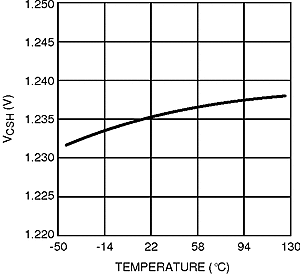

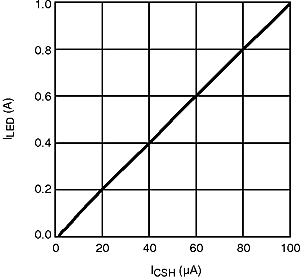

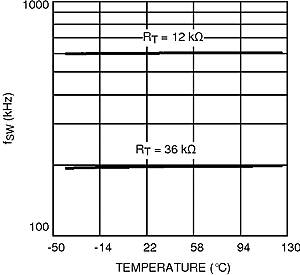

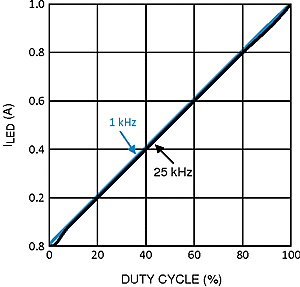

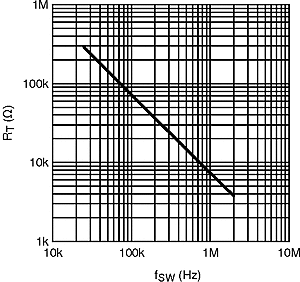

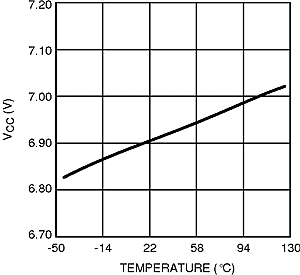

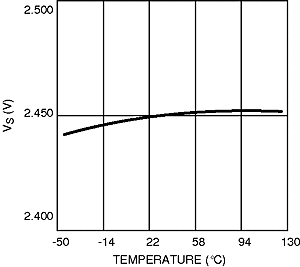

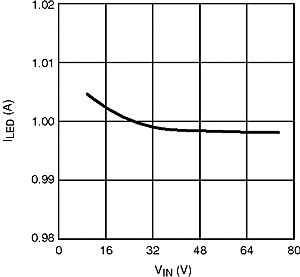

6.6 Typical Characteristics
TA = 25°C and VIN = 14 V unless otherwise specified. The measurements for Figure 1, Figure 3, andFigure 6 were made using the standard boost evaluation board from AN-1967 LM3424 Buck-Boost Evaluation Board (SNVA397). The measurements for Figure 2, Figure 4, and Figure 5 were made using the standard buck-boost evaluation board from AN-1969 LM3424 Boost Evaluation Board (SNVA398).

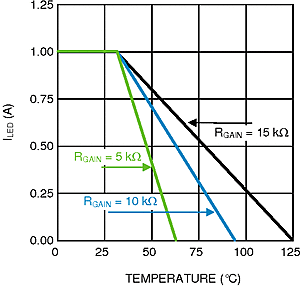

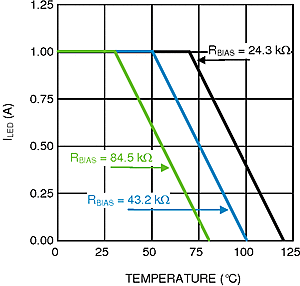

| VO = 32 V (9 LEDs) | ||
| VO = 32 V (9 LEDs) | ||
| VO = 21 V (6 LEDs) | VIN = 24 V | |
| RGAIN = 10 kΩ | VTSENSE = 0.5 V | VTREF = 1.5 V |
| RREF1 = RREF2 = 49.9 kΩ | ||
| RNTC-BK = RBIAS = 43.2 kΩ | ||
A.

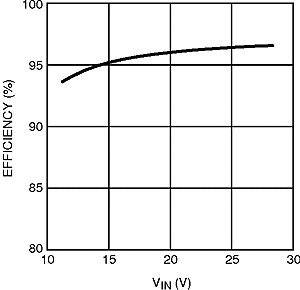

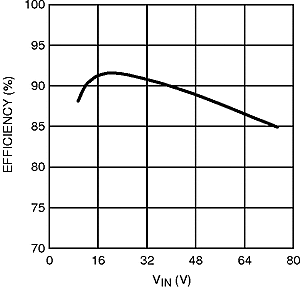

Figure 2. Buck-Boost Efficiency vs. Input Voltage | VO = 21 V (6 LEDs) | ||
| VO = 21 V (6 LEDs) | ||
| VO = 32V (9 LEDs) | VIN = 24 V | |
| RREF1 = RREF2 = 49.9 kΩ | RGAIN = 10 kΩ | |
