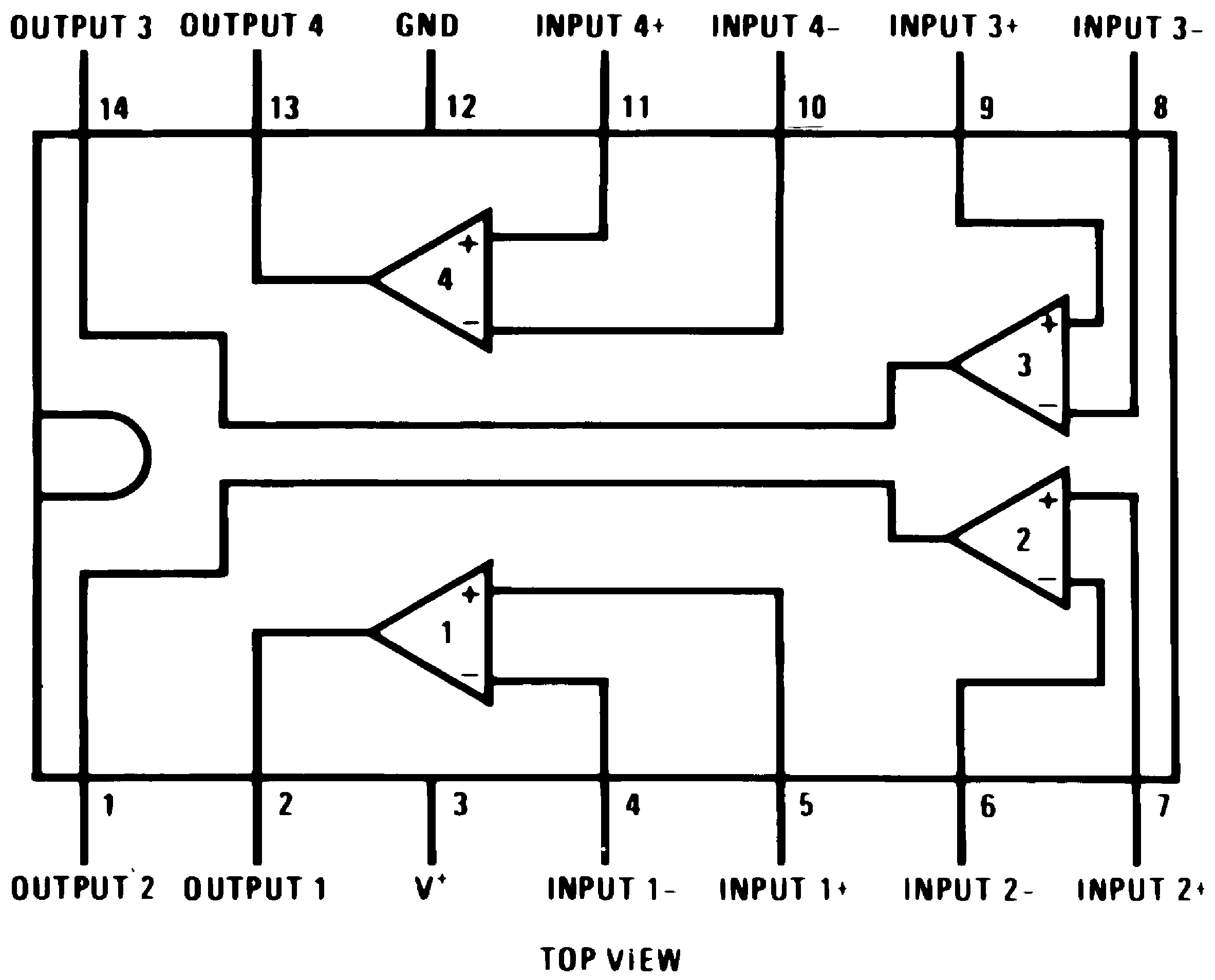

5 Pin Configuration and Functions
J, D, and NFF Packages
14-Pin CDIP, SOIC, and PDIP
Top View
Pin Functions
| PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NO. | NAME | ||
| 1 | OUTPUT2 | O | Output, Channel 2 |
| 2 | OUTPUT1 | O | Output, Channel 1 |
| 3 | V+ | P | Positive Supply |
| 4 | INPUT1- | I | Inverting Input, Channel 1 |
| 5 | INPUT1+ | I | Noninverting Input, Channel 1 |
| 6 | INPUT2- | I | Inverting Input, Channel 2 |
| 7 | INPUT2+ | I | Noninverting Input, Channel 2 |
| 8 | INPUT3- | I | Inverting Input, Channel 3 |
| 9 | INPUT3+ | I | Noninverting Input, Channel 3 |
| 10 | INPUT4- | I | Inverting Input, Channel 4 |
| 11 | INPUT4+ | I | Noninverting Input, Channel 4 |
| 12 | GND | P | Ground |
| 13 | OUTPUT4 | O | Output, Channel 4 |
| 14 | OUTPUT3 | O | Output, Channel 3 |
