7.3.3 Adjustable Output, Low-Ripple Power Supply
Figure 7-4 shows a 3-A power supply that features an adjustable output voltage. An additional LC filter that reduces the output ripple by a factor of 10 or more is included in this circuit.
Complete circuit not shown.

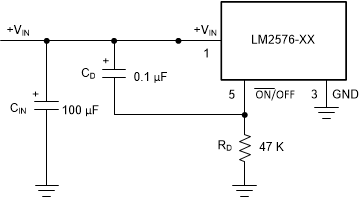

Figure 7-3 Delayed Start-Up
Figure 7-4 1.2-V to 55-V Adjustable 3-A Power Supply With Low Output Ripple
