8.2.3 Design 2: PSR Flyback Converter With Dual Outputs of 15 V and –15 V at 0.3 A
The schematic diagram of a dual-output flyback converter intended for isolated IGBT and SiC MOSFET gate drive power supply applications is given in Figure 8-16.

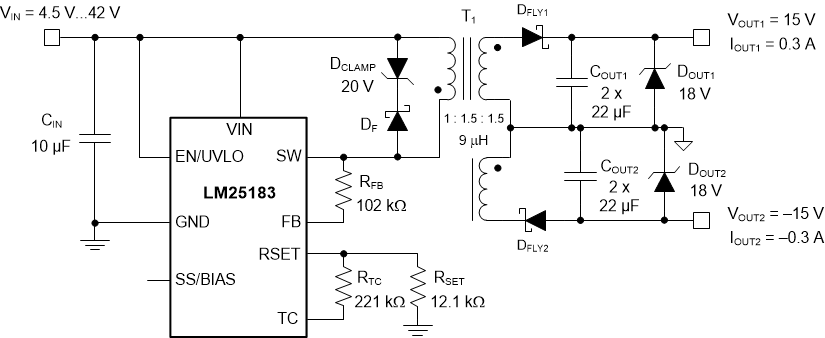

Figure 8-16 Schematic for Design 2 With
VIN(nom) = 24
V,
VOUT1 = 15 V, VOUT2 = –15 V, IOUT = 0.3 A
