8.2.1.3 Application Curves
| VIN = 24 Vdc | IOUT rising from 2 A to 6 A |
| Top trace: VOUT = 3.3 V, 100 mV/div, AC-coupled | Bottom trace: IOUT, 2 A/div |
| Horizontal resolution: 0.5 ms/div |

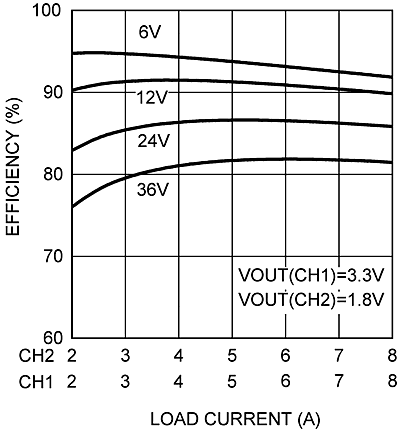

Figure 22. Typical Efficiency vs Load Current
