6 Pin Configurations and Functions
LM117H,

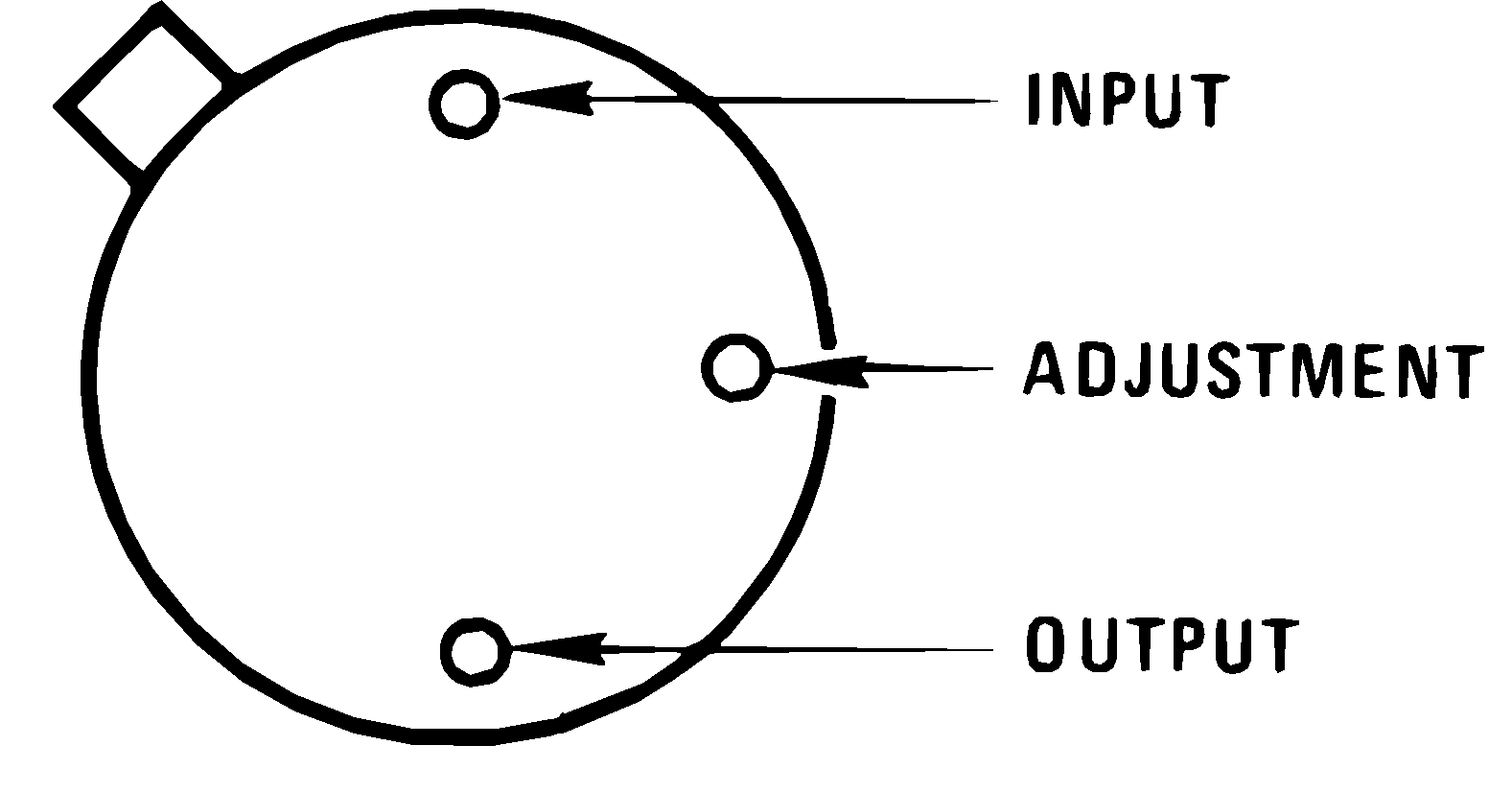

LM117NDTTO-39 (NDT) 3-Pin Metal Can Package (Bottom View)
LM117GW CFP
SOIC (NAC) 16-Pin Ceramic Package (Top View)Table 6-1 Pin Functions
| PIN | I/O(1) | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | TO-39 (NDT) | CFP SOIC (NAC) | ||
| ADJ | 2 | 3 | – | Adjust pin. |
| VIN | 1 | 5 | I | Input voltage pin for the regulator. |
| VOUT | 3, CASE | 12 | O | Output voltage pin for the regulator. |
| OUTPUT/SENSE | – | 13 | – | Used to sense the output voltage. Must be connected to VOUT for proper operation. |
| N/C | – | 1, 2, 4, 6, 7, 8, 9, 10, 11, 14, 15, 16 | – | No connection. These pins have no internal connections and may be grounded or left floating. They may also be connected to the board heatsink and used for thermal dissipation. |
(1) I = input, O = output, P = power, FB = feedback, GND = ground, NC = no connect
