ZHCSNF0B May 2018 – October 2021 ISOW1412 , ISOW1432

PRODMIX

封裝選項

機械數據 (封裝 | 引腳)

DFM|20
- MCSS009

散熱焊盤機械數據 (封裝 | 引腳)

訂購信息

8.14 Typical Characteristics

MODE = GND2	V_DD = 3.3 V	RE = GND1
T_A = 25°C	DE = V_IO

Figure 8-3 ISOW1412 V_DD Supply Current vs. Data Rate - RS485 Mode

MODE = GND2	V_DD = 3.3 V	RE = GND1
DE = V_IO

Figure 8-5 ISOW1412 VDD Current vs. Temperature - RS485 Mode

MODE = GND2	V_DD = 3.3 V	LOAD = 54 Ω \|\| 50pF
DE = V_IO

Figure 8-7 ISOW1412 Driver Propagation Delay vs. Temperature - RS485 Mode

MODE = GND2	V_DD = 3.3 V	RE = GND1
LOAD = 54 Ω \|\| 50pF

Figure 8-9 ISOW1412 Receiver Propagation Delay vs. Temperature - RS485 Mode

MODE = GND2	V_DD = 3.3 V	DE = V_IO
LOAD = 54 Ω \|\| 50pF	T_A = 25°C

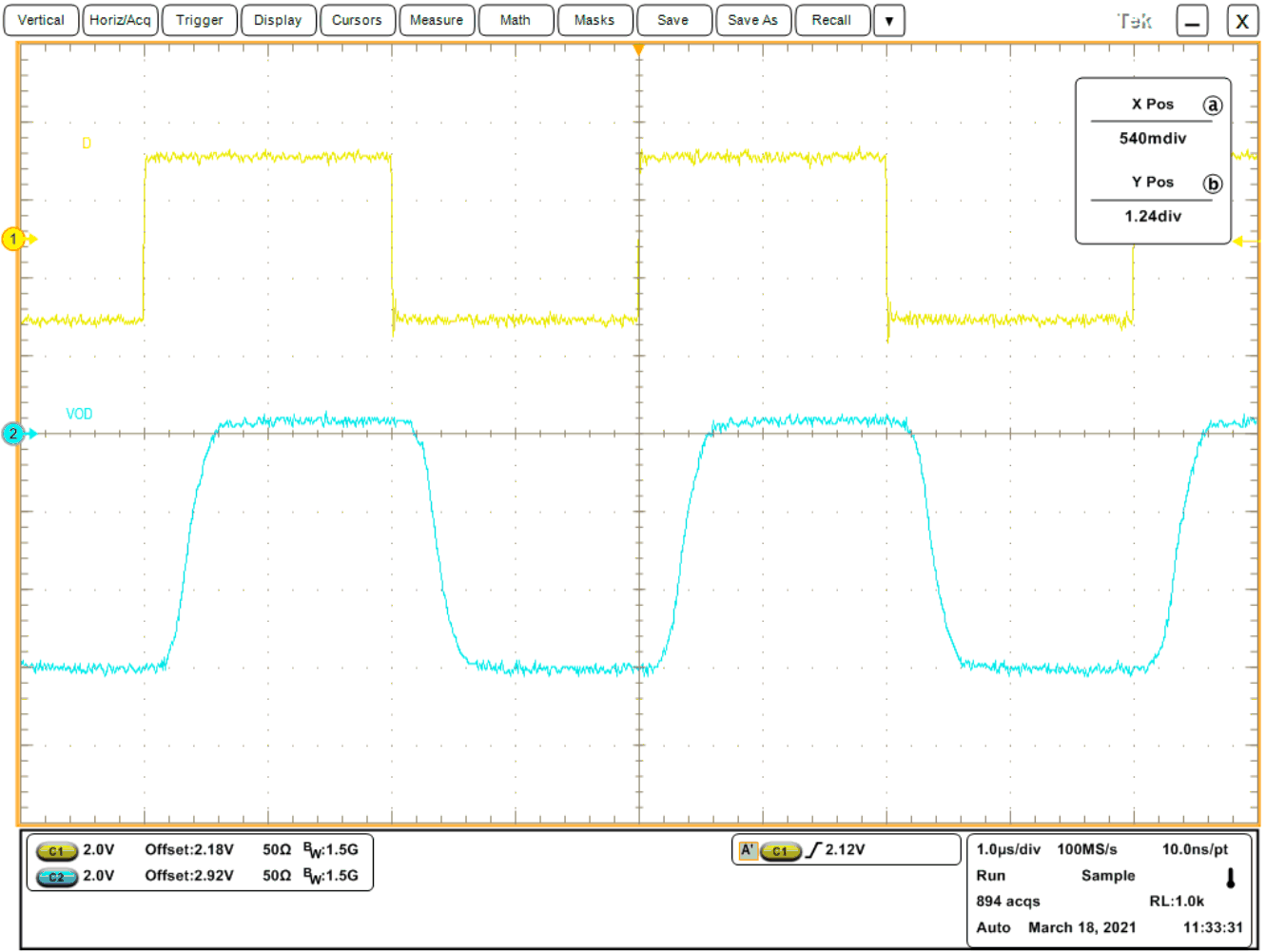

Figure 8-11 ISOW1412 Driver Propagation Delay - Profibus Mode

MODE = GND2	V_DD = 3.3 V	RE = GND1
LOAD = 54 Ω \|\| 50pF	T_A = 25°C

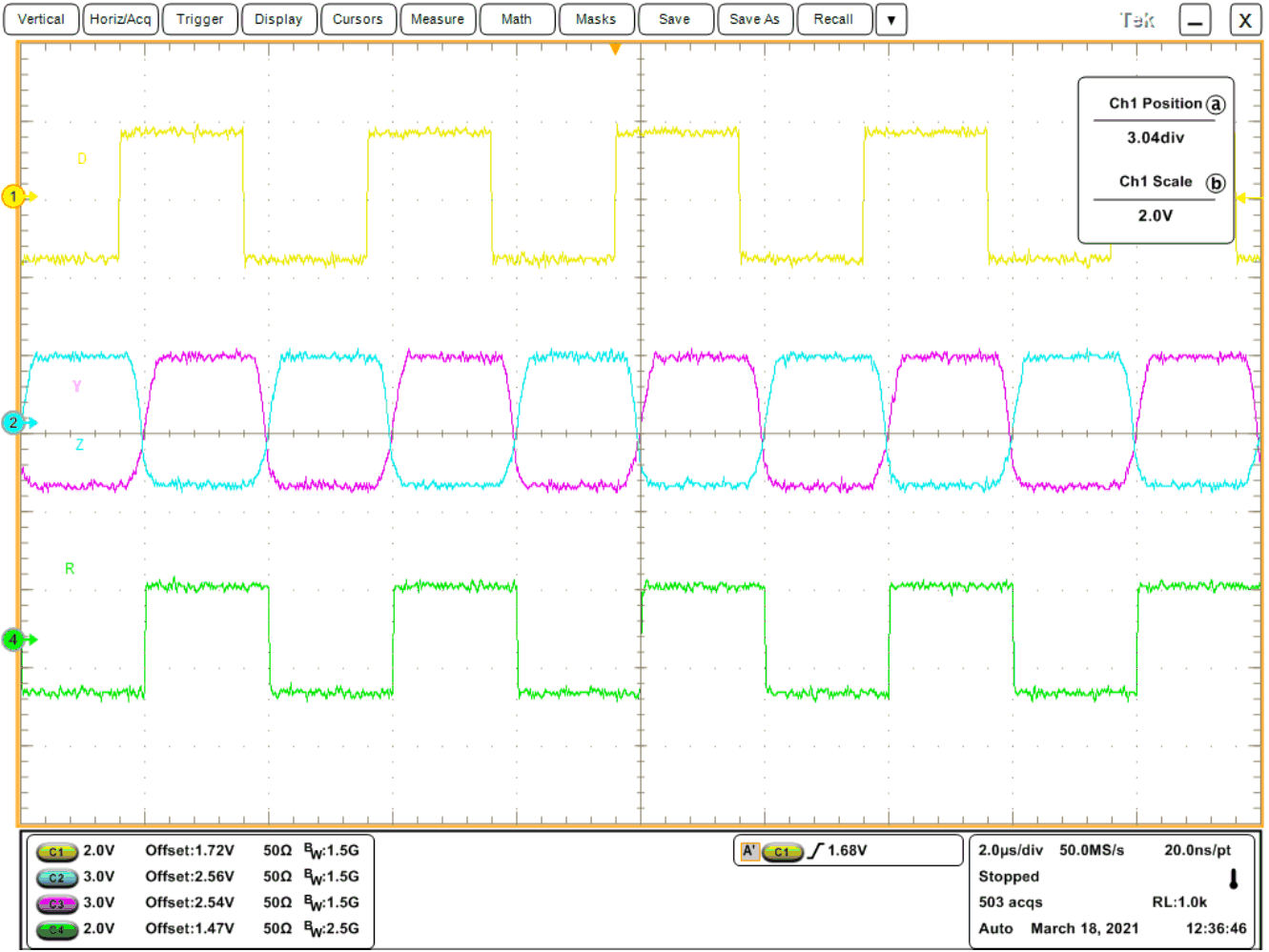

Figure 8-13 ISOW1412 Receiver Propagation Delay - Profibus Mode

MODE = GND2	V_DD = 3.3 V	DE = V_IO
LOAD = 54 Ω	T_A = 25°C

Figure 8-15 ISOW1412 Driver output voltage vs. Driver output current - RS485 Mode

RE = GND1

Load = 54 Ω

T_A = 25°C

Figure 8-17 ISOW1412 Receiver Buffer High Level output voltage vs. High Level output current - RS485 & Profibus Mode

RE = GND1

LOAD = 54 Ω

T_A = 25°C

Figure 8-19 ISOW1412 Receiver Buffer Low Level output voltage vs. Low Level output current - RS485 & Profibus Mode

For PWD ≤±5%

T_A = 25°C

Figure 8-21 ISOW1412 Receiver VID vs. Data Rate - RS485 & Profibus Mode

MODE = V_ISOOUT	D = V_IO	DE = V_IO
T_A = 25°C	LOAD = 54 Ω \|\| 50pF

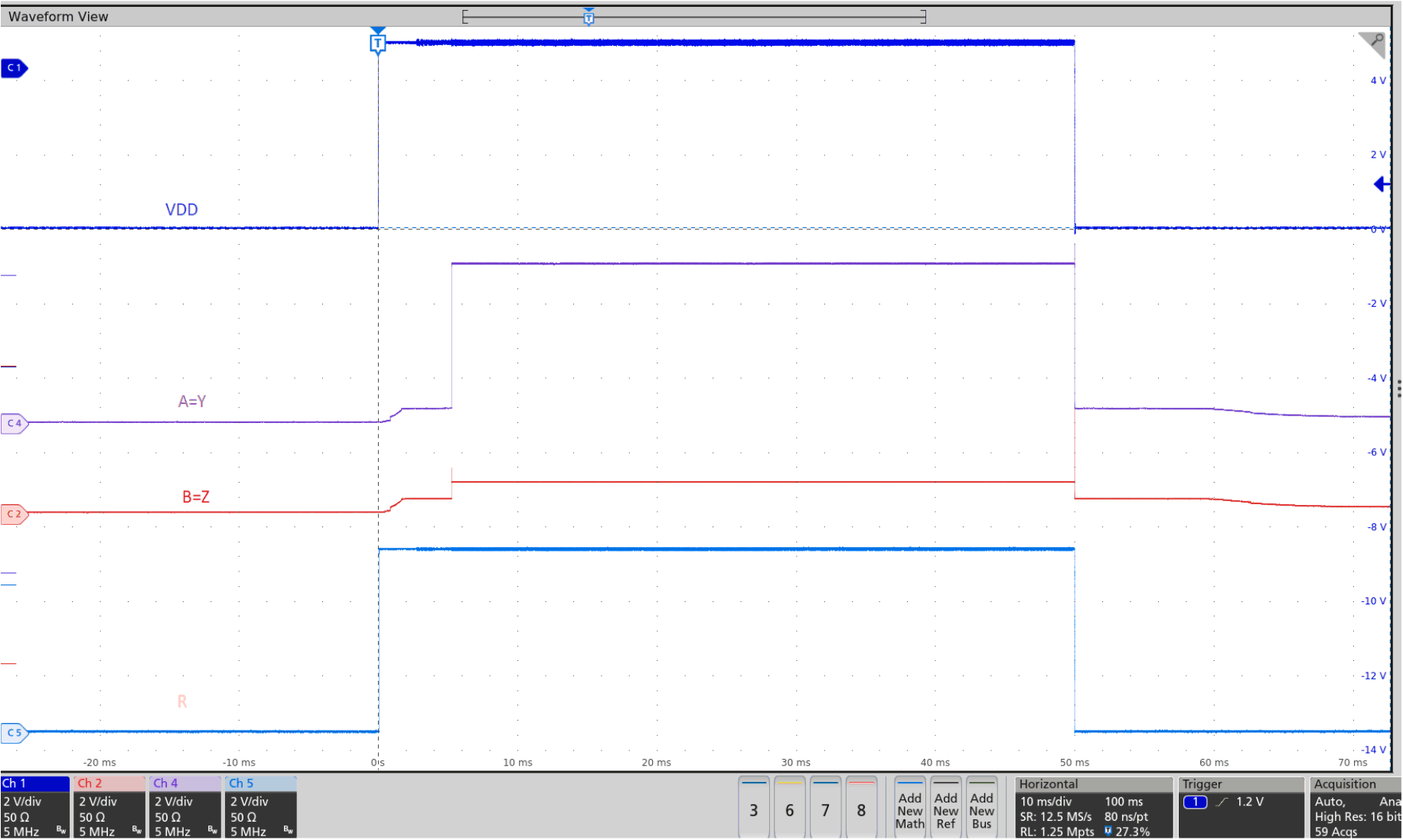

Figure 8-23 Glitch-free Power up/down- Profibus Mode

MODE = GND2	V_DD = 3.3 V	RE = GND1
T_A = 25°C	DE = V_IO

Figure 8-4 ISOW1412 VIO Supply Current vs. Data Rate - RS485 Mode

MODE = GND2	V_DD = 3.3 V	RE = GND1
DE = V_IO

Figure 8-6 ISOW1412 VIO Current vs. Temperature - RS485 Mode

MODE = V_ISOOUT	V_DD = 5 V	LOAD = 54 Ω \|\| 50pF
DE = V_IO

Figure 8-8 ISOW1412 Driver Propagation Delay vs. Temperature - Profibus Mode

MODE = V_ISOOUT	V_DD = 5 V	RE = GND1
LOAD = 54 Ω \|\| 50pF

Figure 8-10 ISOW1412 Receiver Propagation Delay vs. Temperature - Profibus Mode

MODE = V_ISOOUT	V_DD = 5 V	DE = V_IO
LOAD = 54 Ω \|\| 50pF	T_A = 25°C

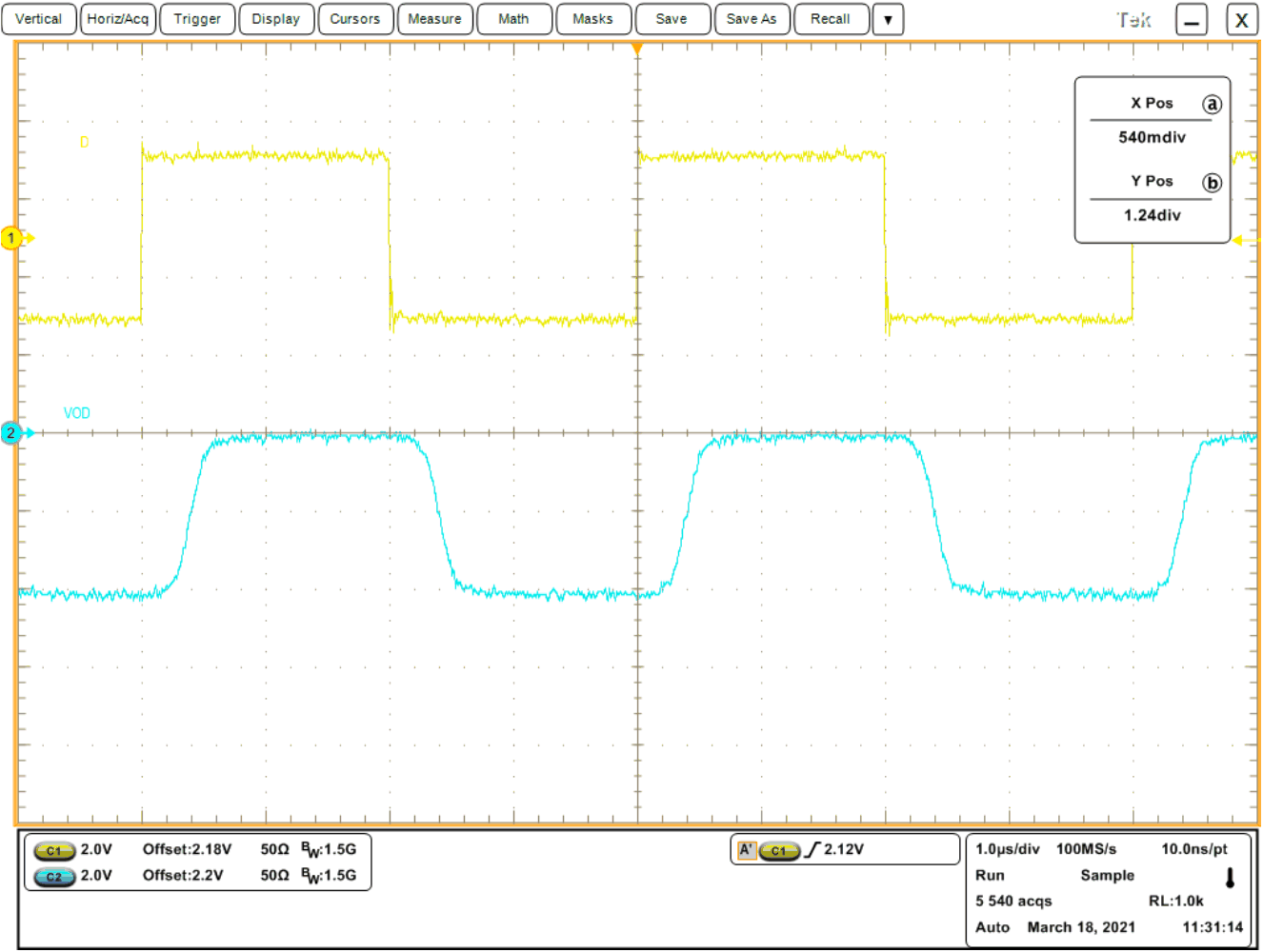

Figure 8-12 ISOW1412 Driver Propagation Delay - RS485 Mode

MODE = V_ISOOUT	V_DD = 5 V	RE = GND1
LOAD = 54 Ω \|\| 50pF	T_A = 25°C

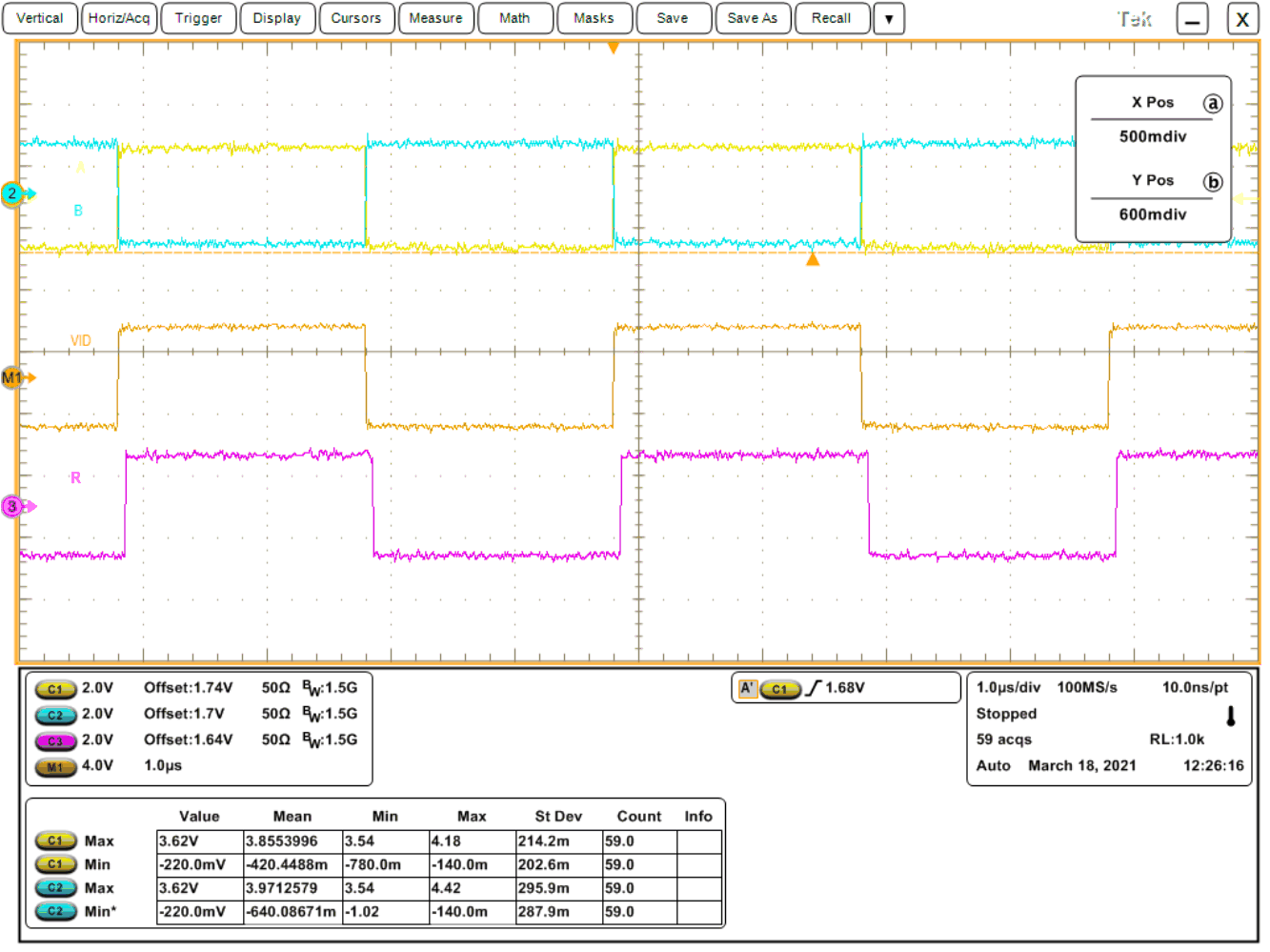

Figure 8-14 Receiver Propagation Delay - RS485 Mode

MODE = V_ISOOUT	V_DD = 5 V	DE = V_IO
LOAD = 54 Ω	T_A = 25°C

Figure 8-16 ISOW1412 Driver output voltage vs. Driver output current - Profibus Mode

RE = GND1

LOAD = -2 mA (RS485 Mode), -4mA (Profibus Mode)

Figure 8-18 ISOW1412 Receiver Buffer High Level output voltage vs. Temperature - RS485 & Profibus Mode

RE = GND1

LOAD = 2 mA (RS485 Mode), 4mA (Profibus Mode)

Figure 8-20 ISOW1412 Receiver Buffer Low Level output voltage vs. Temperature - RS485 & Profibus Mode

MODE = GND2	D = V_IO	DE = V_IO
RE = GND1	T_A = 25°C	LOAD = 54 Ω \|\| 50pF

Figure 8-22 Glitch-free Power up/down- RS485 Mode
