ZHCSFJ8 September 2016 ISO5451-Q1
PRODUCTION DATA.
請(qǐng)參考 PDF 數(shù)據(jù)表獲取器件具體的封裝圖。

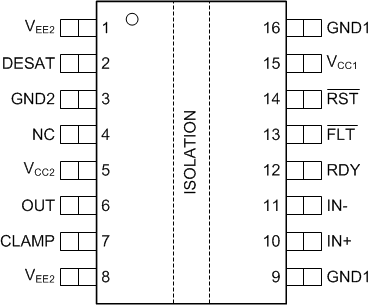

| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| VEE2 | 1, 8 | - | Output negative supply. Connect to GND2 for Unipolar supply application. |
| DESAT | 2 | I | Desaturation voltage input |
| GND2 | 3 | - | Gate drive common. Connect to IGBT emitter. |
| NC | 4 | - | Not connected |
| VCC2 | 5 | - | Most positive output supply potential. |
| OUT | 6 | O | Gate drive voltage output |
| CLAMP | 7 | O | Miller clamp output |
| GND1 | 9, 16 | - | Input ground |
| IN+ | 10 | I | Non-inverting gate drive voltage control input |
| IN- | 11 | I | Inverting gate drive voltage control input |
| RDY | 12 | O | Power-good output, active high when both supplies are good. |
| FLT | 13 | O | Fault output, low-active during DESAT condition |
| RST | 14 | I | Reset input, apply a low pulse to reset fault latch. |
| VCC1 | 15 | - | Positive input supply (3 V to 5.5 V) |
