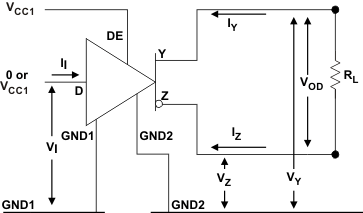

7 Parameter Measurement Information

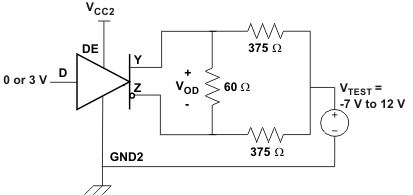

Figure 7-1 Driver VOD Test and Current Definitions

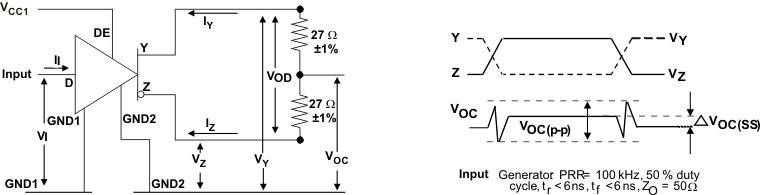

Figure 7-2 Driver VOD With Common-Mode Loading Test Circuit
Figure 7-3 Test
Circuit and Waveform Definitions For The Driver Common-Mode Output
Voltage

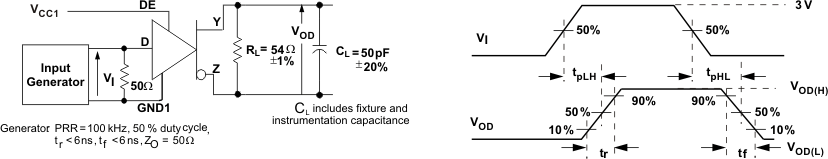

Figure 7-4 Driver
Switching Test Circuit and Voltage Waveforms

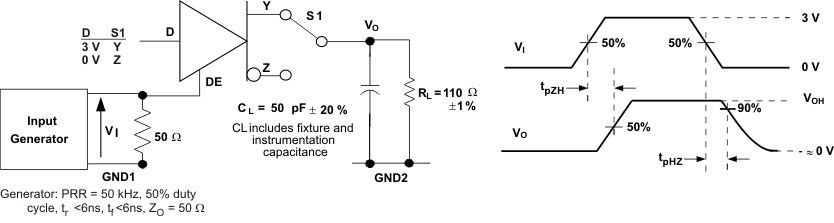

Figure 7-5 Driver
High-Level Output Enable and Disable Time Test Circuit and Voltage
Waveforms

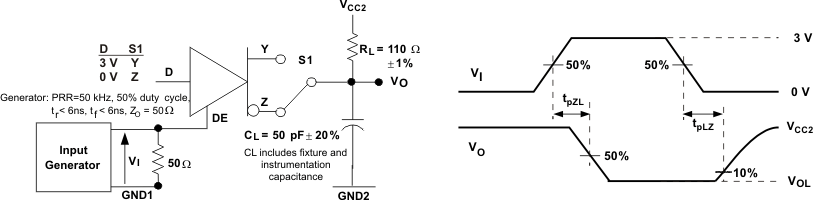

Figure 7-6 Driver
Low-Level Output Enable and Disable Time Test Circuit and Voltage
Waveform

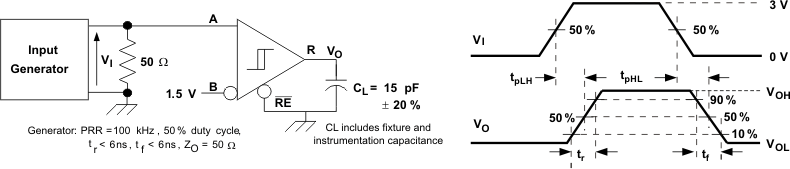

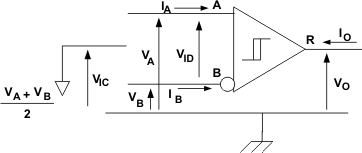

Figure 7-7 Receiver
Voltage and Current Definitions
Figure 7-8 Receiver
Switching Test Circuit and Waveforms

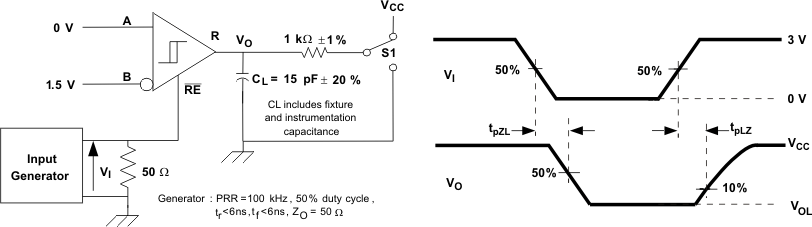

Figure 7-9 Receiver
Enable Test Circuit and Waveforms, Data Output High

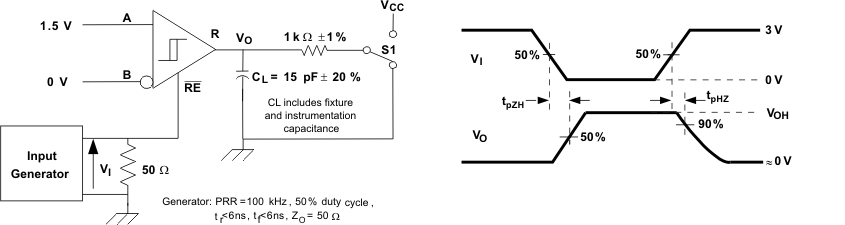

Figure 7-10 Receiver
Enable Test Circuit and Waveforms, Data Output Low

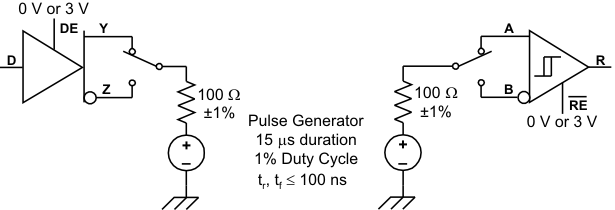

Figure 7-11 Transient
Over-Voltage Test Circuit
Figure 7-12 Common-Mode Transient Immunity Test Circuit

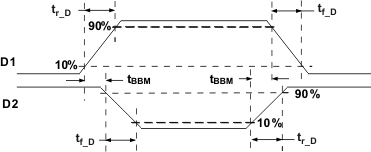

Figure 7-13 Transition Times and Break-Before-Make Time Delay for D1, D2 Outputs
