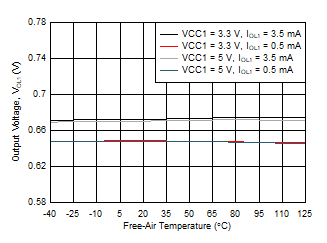

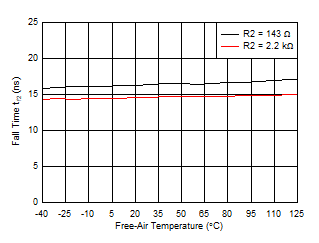

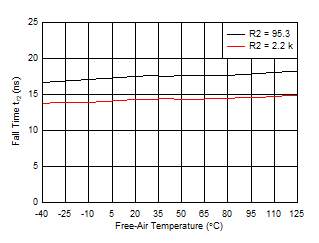

6.13 Typical Characteristics
| TA = 25°C |
| VCC1 = 3.3 V |
| VCC2 = 3.3 V | C2 = 400 pF |
| C1 = 80 pF | C2 = 400 pF |

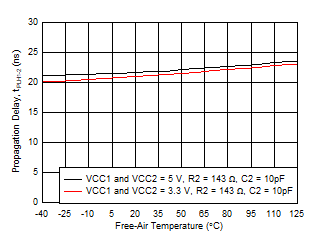

Figure 6-13 tPLH1-2 Propagation Delay vs Free-Air
Temperature

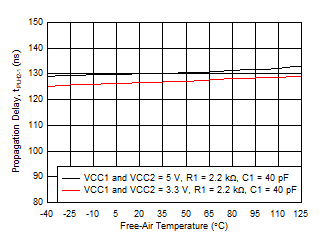

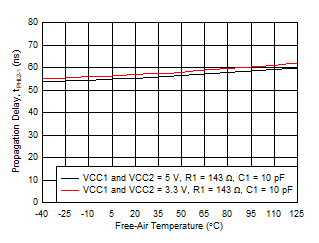

Figure 6-15 tPHL1-2 Propagation Delay vs Free-Air
Temperature

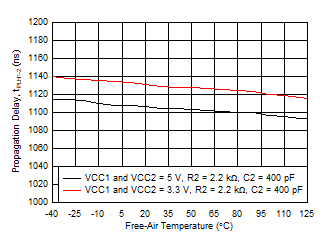

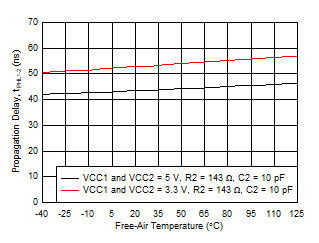

Figure 6-17 tPLH2-1 Propagation Delay vs Free-Air
Temperature
Figure 6-19 tPHL2-1 Propagation Delay vs Free-Air
Temperature

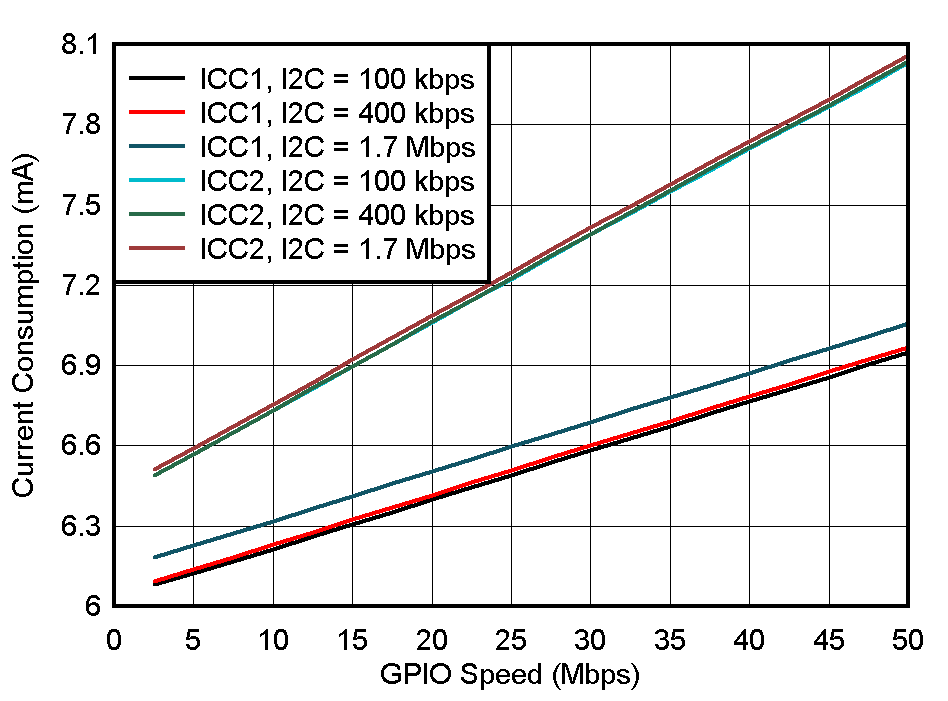

Figure 6-21 ISO1642: ICC vs
GPIO Speed at 3.3V

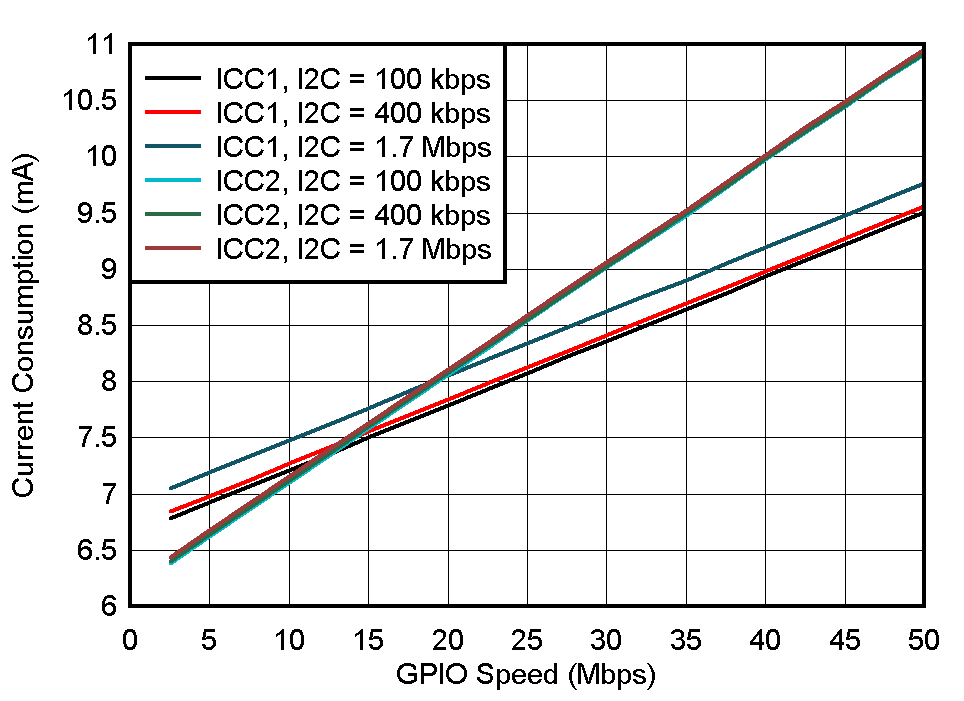

Figure 6-23 ISO1643: ICC vs
GPIO Speed at 3.3V

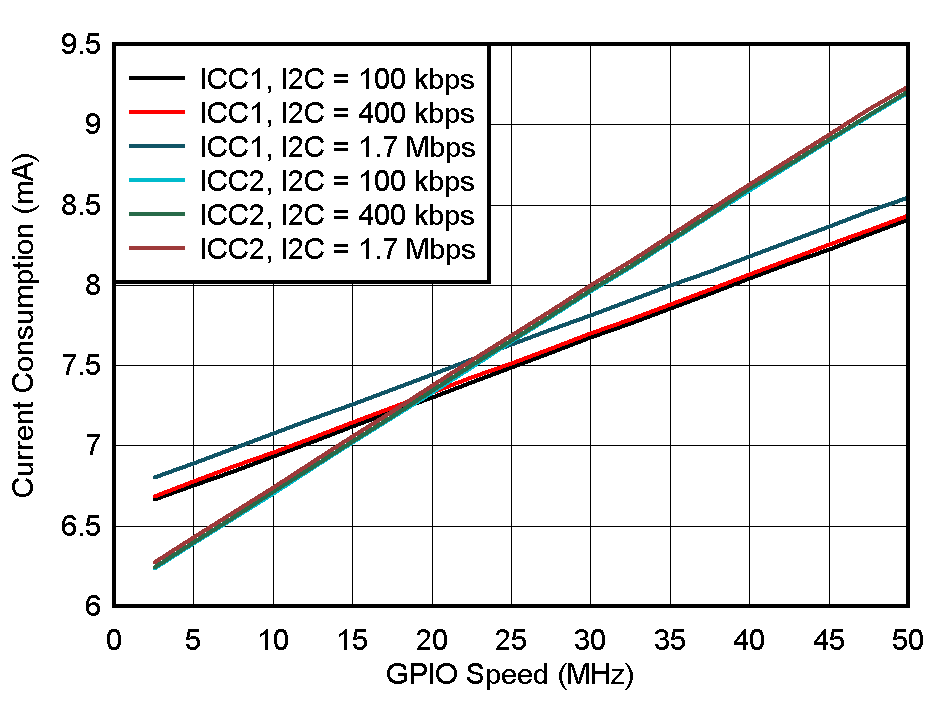

Figure 6-25 ISO1644: ICC vs
GPIO Speed at 3.3V
| VCC1 = 5 V |
| VCC2 = 5 V | C2 = 400 pF |
| VCC2 = 2.5 V | C2 = 400 pF |
| C1 = 80 pF | C2 = 400 pF |

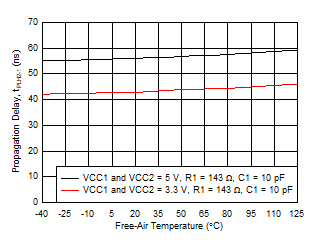

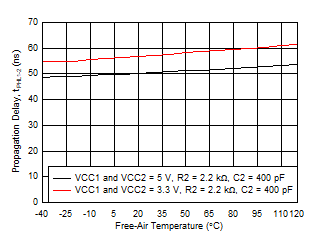

Figure 6-14 tPLH1-2 Propagation Delay vs Free-Air
Temperature
Figure 6-16 tPHL1-2 Propagation Delay vs Free-Air
Temperature

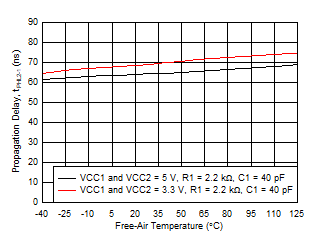

Figure 6-18 tPLH2-1 Propagation Delay vs Free-Air
Temperature
Figure 6-20 tPHL2-1 Propagation Delay vs Free-Air
Temperature

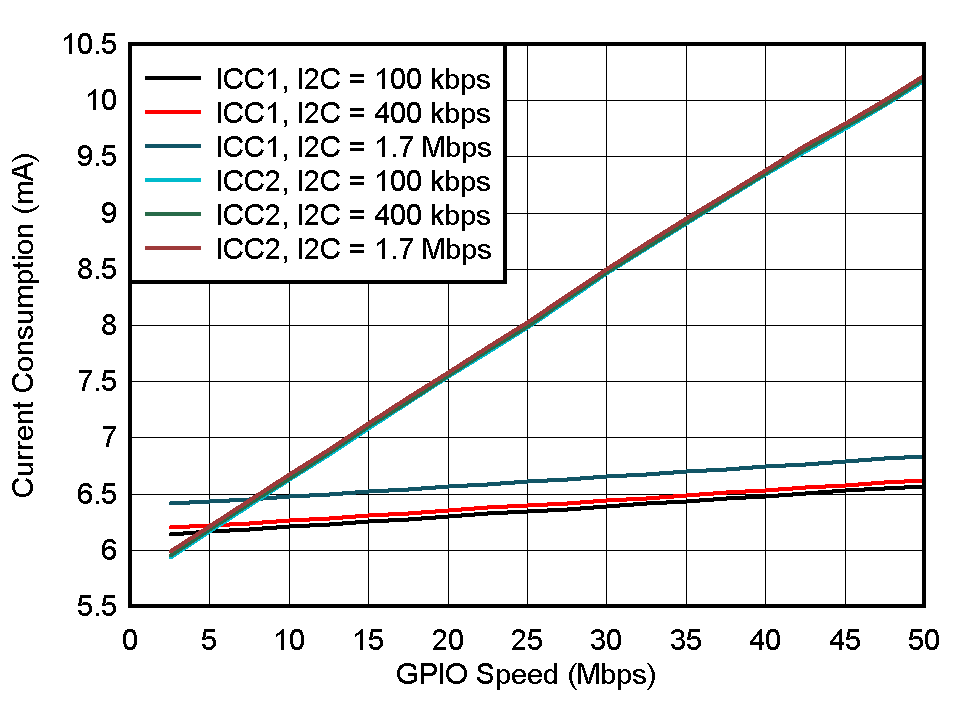

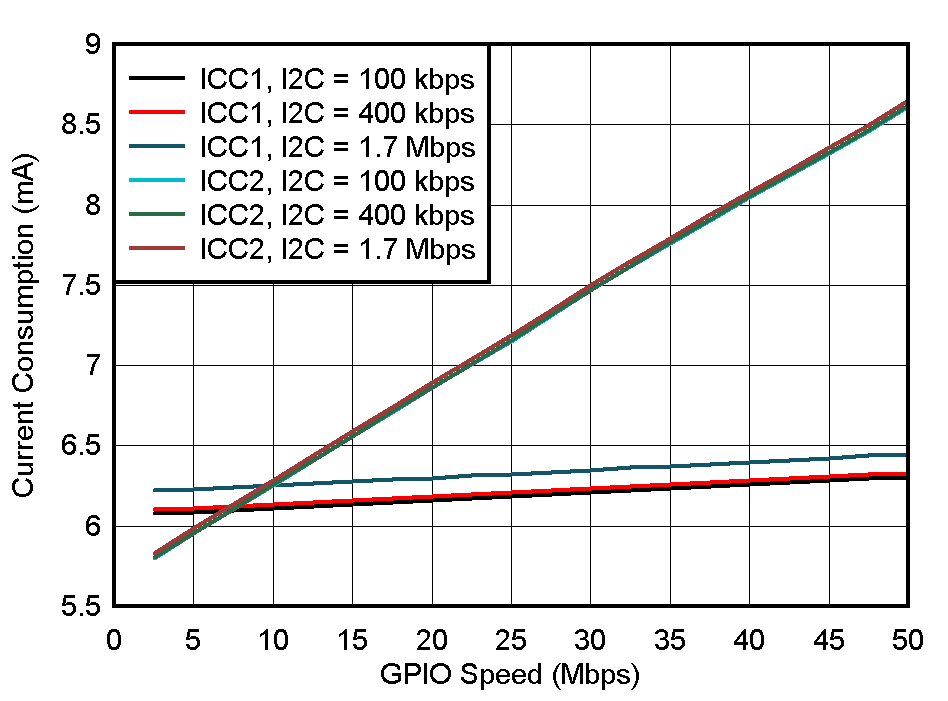

Figure 6-22 ISO1642: ICC vs
GPIO Speed at 5V
Figure 6-24 ISO1643: ICC vs
GPIO Speed at 5V
Figure 6-26 ISO1644: ICC vs
GPIO Speed at 5V
