5 Pin Configuration and Functions

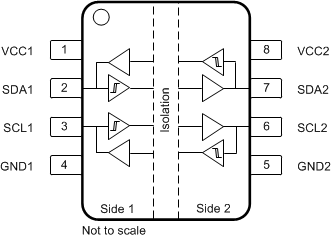

Figure 5-1 ISO1640B-Q1 Package8-Pin SOICTop View

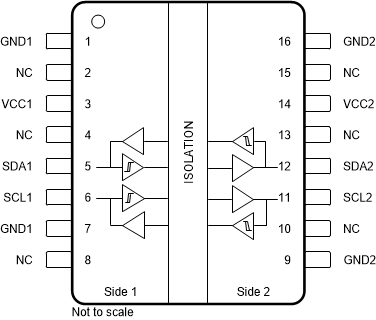

Figure 5-2 ISO1640-Q1 Package16-Pin SOICTop
ViewTable 5-1 Pin Functions — ISO1640-Q1
| PIN | I/O | DESCRIPTION | ||
|---|---|---|---|---|
| 8-D | 16-DW | |||
| NAME | NO. | NO. | ||
| GND1 | 4 | 1, 7 | — | Ground, side 1 |
| GND2 | 5 | 9, 16 | — | Ground, side 2 |
| NC | — | 2, 4, 8, 10, 13, 15 | — | No Connection |
| SCL1 | 3 | 6 | I/O | Serial clock input / output, side 1 |
| SCL2 | 6 | 11 | I/O | Serial clock input / output, side 2 |
| SDA1 | 2 | 5 | I/O | Serial data input / output, side 1 |
| SDA2 | 7 | 12 | I/O | Serial data input / output, side 2 |
| VCC1 | 1 | 3 | — | Supply voltage, side 1 |
| VCC2 | 8 | 14 | — | Supply voltage, side 2 |
