7.1 Test Circuits

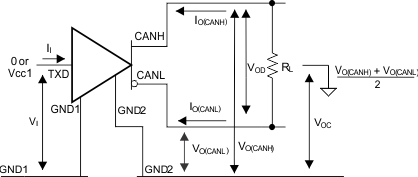

Figure 15. Driver Voltage, Current and Test Definitions

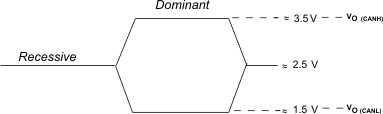

Figure 16. Bus Logic State Voltage Definitions
A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle,
tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.

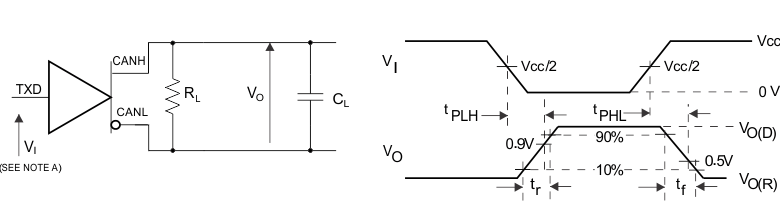

Figure 17. Driver Test Circuit and Voltage Waveforms tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.

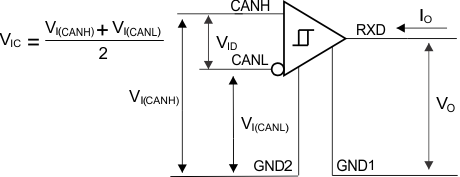

Figure 18. Receiver Voltage and Current Definitions
A. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle,
tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.

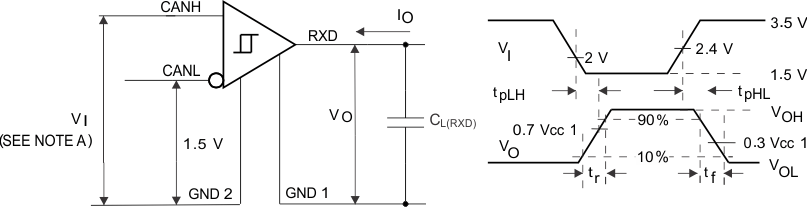

Figure 19. Receiver Test Circuit and Voltage Waveforms tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
Table 1. Receiver Differential Input Voltage Threshold Test
| INPUT | OUTPUT | |||
|---|---|---|---|---|
| VCANH | VCANL | |VID| | RXD | |
| -29.5 V | -30.5 V | 1000 mV | L | VOL |
| 30.5 V | 29.5 V | 1000 mV | L | |
| -19.55 V | -20.45 V | 900 mV | L | |
| 20.45 V | 19.55 V | 900 mV | L | |
| -19.75 V | -20.25 V | 500 mV | H | VOH |
| 20.25 V | 19.75 V | 500 mV | H | |
| -29.8 V | -30.2 V | 400 mV | H | |
| 30.2 V | 29.8 V | 400 mV | H | |
| Open | Open | X | H | |
Figure 20. tLOOP Test Circuit and Voltage Waveforms
Figure 21. CAN FD Timing Parameter Measurement
A. The input pulse is supplied by a generator having the following characteristics: tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.

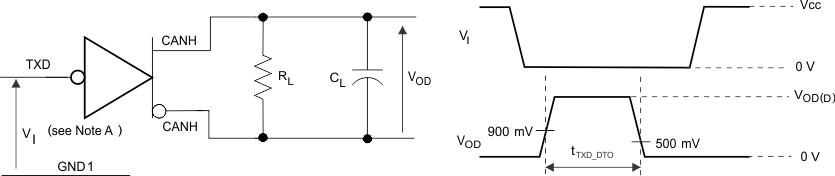

Figure 22. Dominant Time-out Test Circuit and Voltage Waveforms

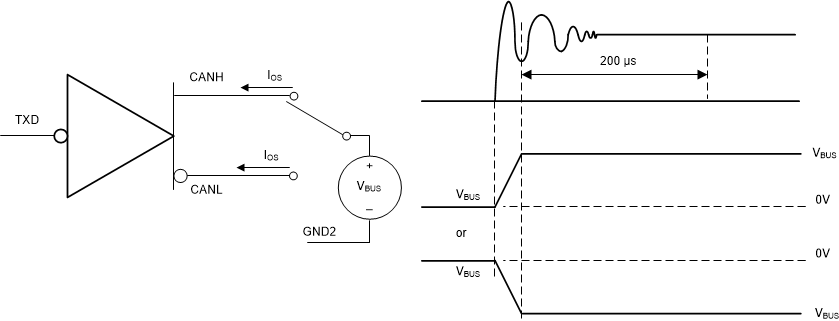

Figure 23. Driver Short-Circuit Current Test Circuit and Waveforms
Figure 24. Common-Mode Transient Immunity Test Circuit
