7 Parameter Measurement Information

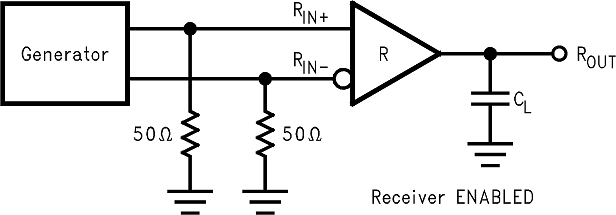

Figure 15. Receiver Propagation Delay and Transition Time Test Circuit

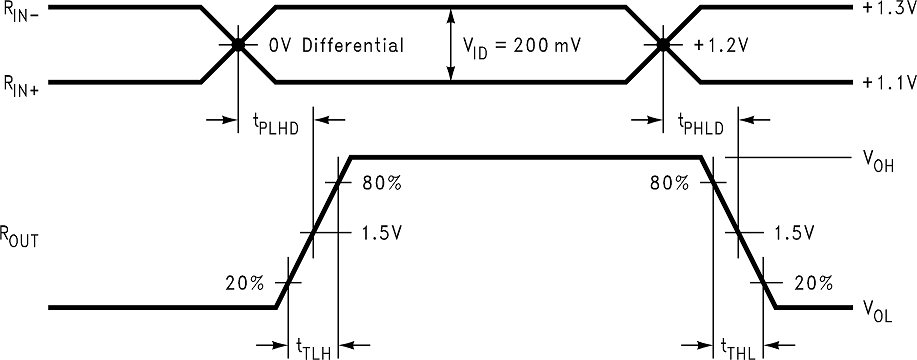

Figure 16. Receiver Propagation Delay and Transition Time Waveforms
CL includes load and test jig capacitance.
S1 = VCC for tPZL and tPLZ measurements.
S1 = GND for tPZH and tPHZ measurements.

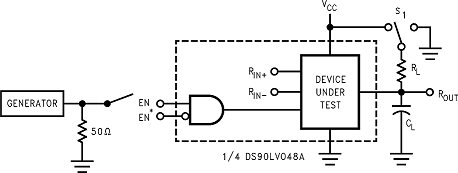

Figure 17. Receiver TRI-STATE Delay Test Circuit
S1 = VCC for tPZL and tPLZ measurements.
S1 = GND for tPZH and tPHZ measurements.

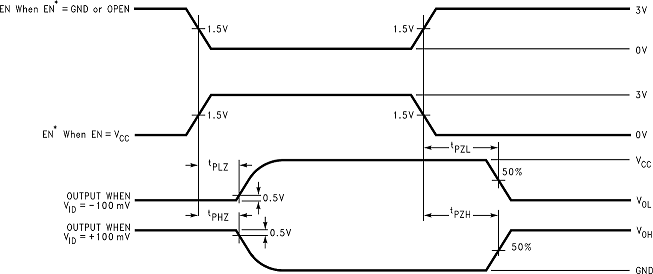

Figure 18. Receiver TRI-STATE Delay Waveforms
