8.2.1.3 Application Curves
These application curves were taken using an HA200 solenoid with a 100-g mass, and the acceleration was measured using the DRV-AAC16-EVM accelerometer. The following scales apply to the graphs:
- Output Differential Voltage scale is shown on the plots at 5-V/div
- Acceleration scale is 5.85-G/div
- Current scale is 2-A/div

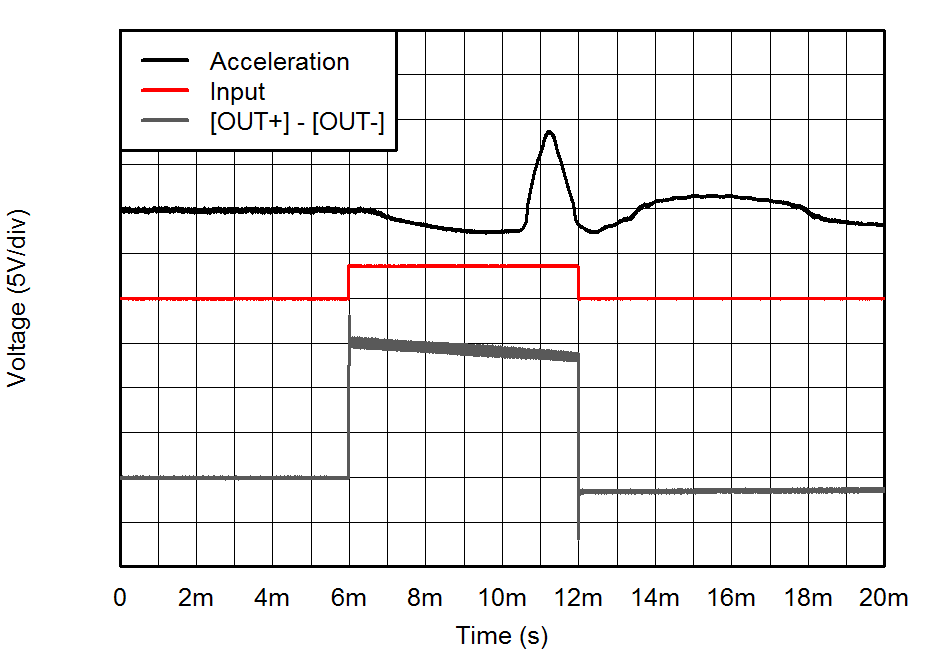

Figure 8-2 Voltage and Acceleration vs Time (Input Square Wave)

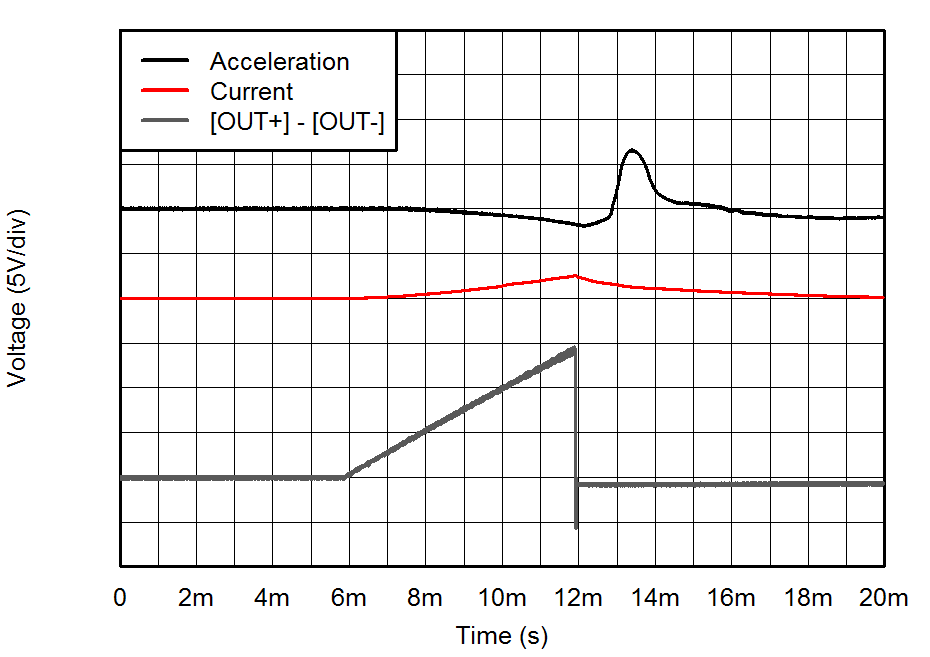

Figure 8-4 Voltage and Acceleration vs Time (Ramp Wave)

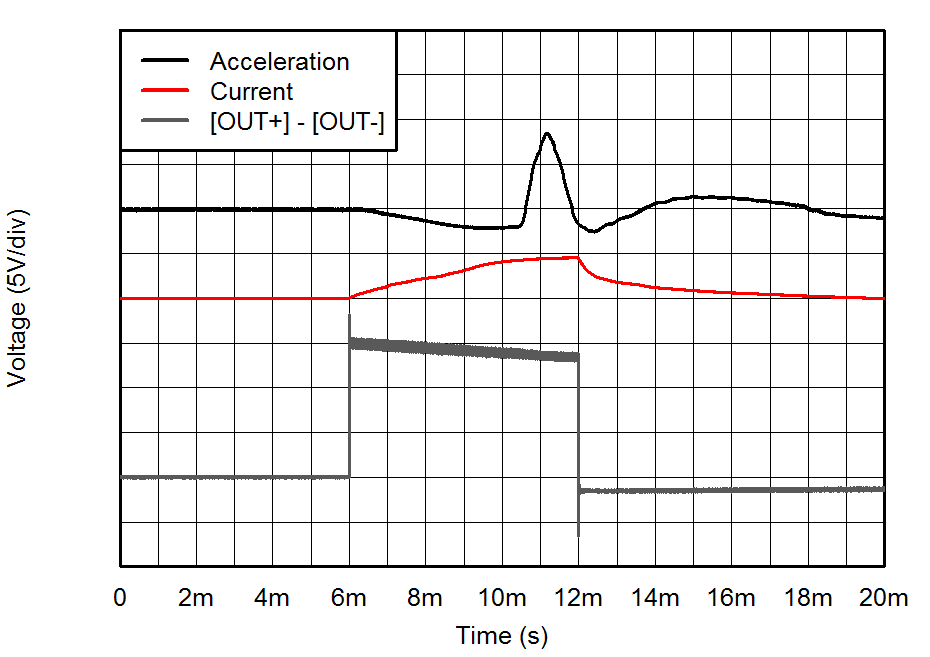

Figure 8-3 Voltage and Acceleration vs Time (Square Wave)

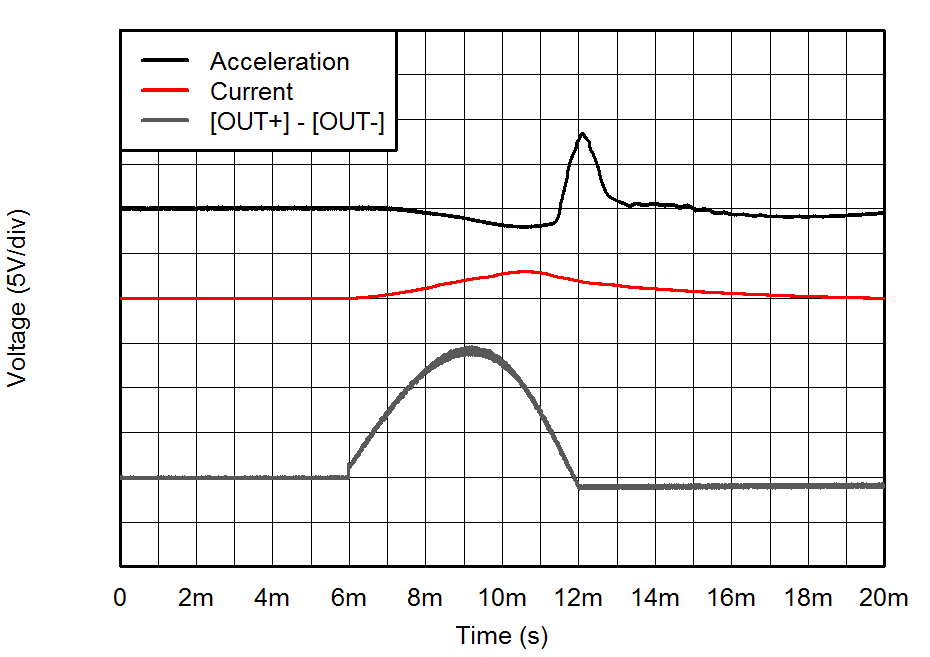

Figure 8-5 Voltage and Acceleration vs Time (1/2 Sine Wave)
