7 Parameter Measurement Information
This section describes the characterization test setup of each block in the CDCM6208.
Figure 9. LVCMOS Output AC Configuration During Device Test (VOH, VOL, tSLEW)

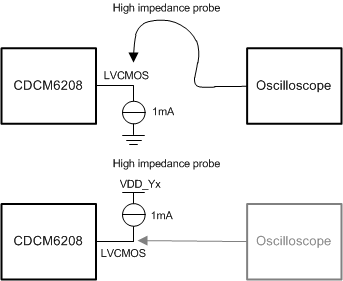

Figure 10. LVCMOS Output DC Configuration During Device Test
Figure 11. LVCMOS Output AC Configuration During Device Phase Noise Test

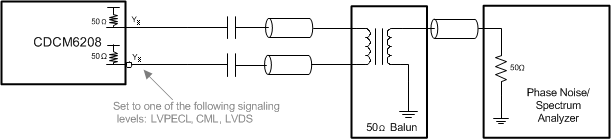

Figure 12. LVDS, CML, and LVPECL Output AC Configuration During Device Test
Figure 13. HCSL Output DC Configuration During Device Test

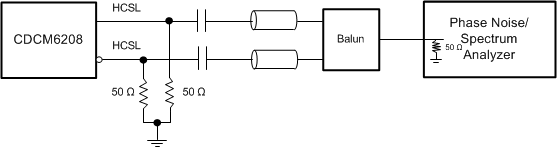

Figure 14. HCSL Output AC Configuration During Device Test
Figure 15. LVCMOS Input DC Configuration During Device Test

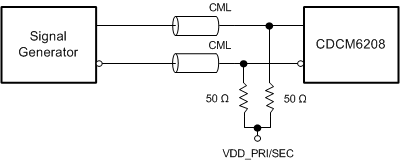

Figure 16. CML Input DC Configuration During Device Test
Figure 17. LVDS Input DC Configuration During Device Test
Figure 18. LVPECL Input DC Configuration During Device Test

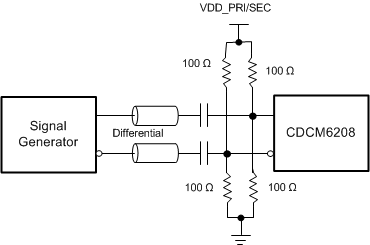

Figure 19. Differential Input AC Configuration During Device Test
Figure 20. Crystal Reference Input Configuration During Device Test

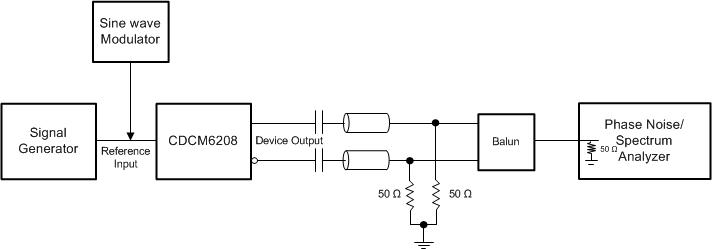

Figure 21. Jitter Transfer Test Setup

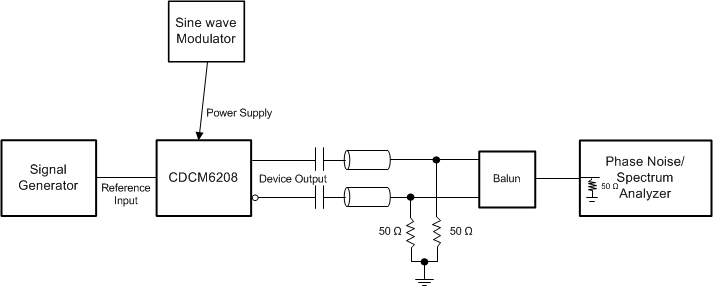

Figure 22. PSNR Test Setup

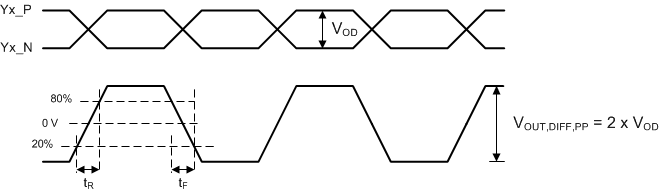

Figure 23. Differential Output Voltage and Rise and Fall Time

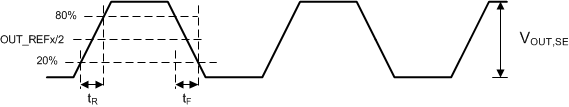

Figure 24. Single-Ended Output Voltage and Rise and Fall Time
Figure 25. Differential and Single-Ended Output Skew and Propagation Delay
