11.2 Layout Examples
Figure 11-1 through Figure 11-3 are printed circuit board (PCB) layout examples that show the application of thermal design practices and a low-inductance ground connection between the device DAP and the PCB.

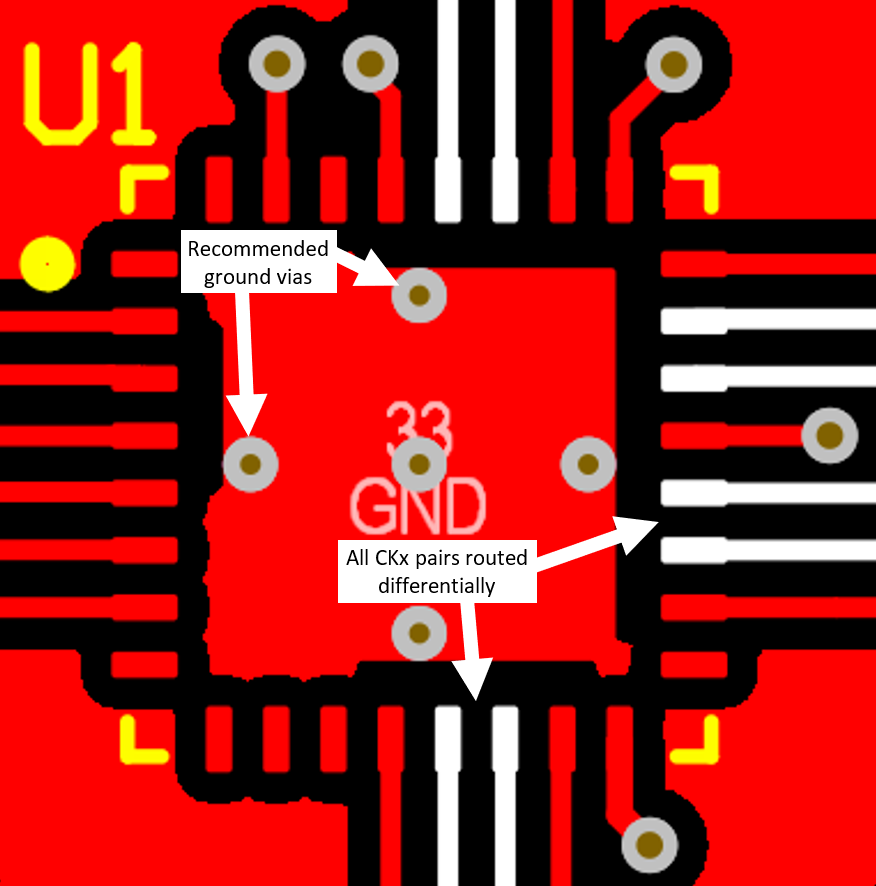

Figure 11-1 PCB
Layout Example for CDCDB400, Top layer

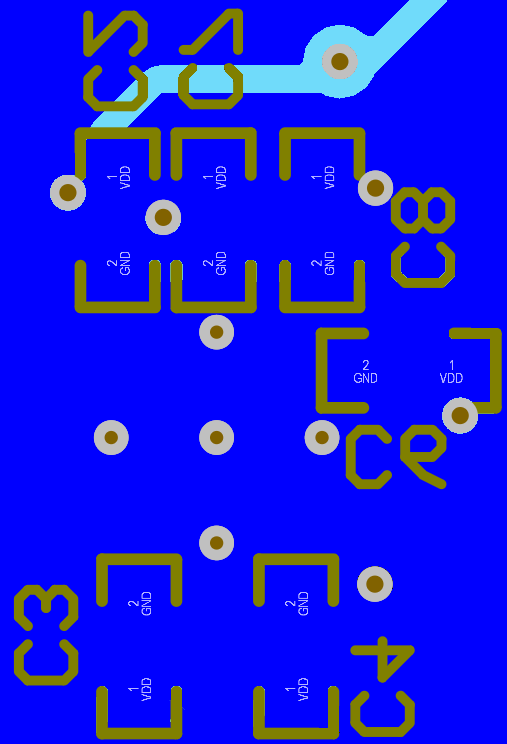

Figure 11-2 PCB
Layout Example for CDCDB400, GND Layer

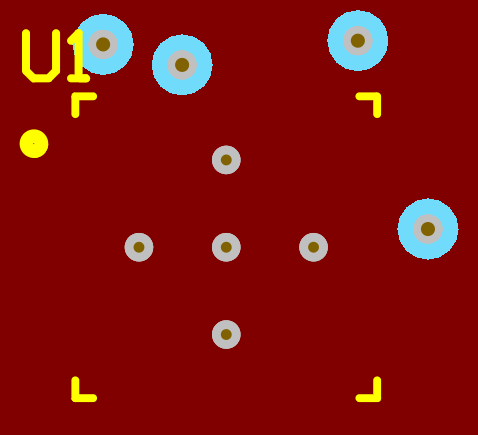

Figure 11-3 PCB
Layout Example for CDCDB400, Bottom Layer
