8.5 Programming
The CDCDB400 uses SMBus to program the states of its four output drivers. See Section 8.3.3 for more information on the SMBus programming, and Section 8.6 for information on the registers.
Table 8-3 Command Code
Definition
| BIT | DESCRIPTION |
|---|---|
| 7 | 0 = Block Read or Block Write
operation 1 = Byte Read or Byte Write operation |
| (6:0) | Register address for Byte operations, or starting register address for Block, operations |

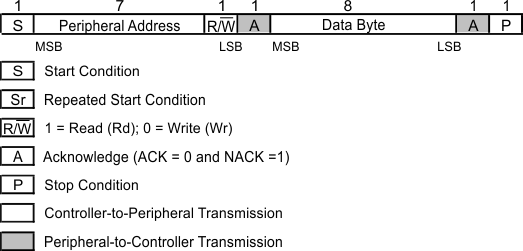

Figure 8-2 Generic Programming Sequence
Figure 8-3 Byte
Write Protocol

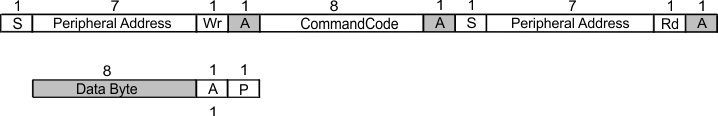

Figure 8-4 Byte Read Protocol
Figure 8-5 Block
Write Protocol

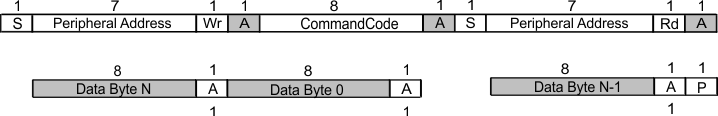

Figure 8-6 Block Read Protocol
Figure 8-7 SMBus Timing Diagram
