14 Analog Test Circuits

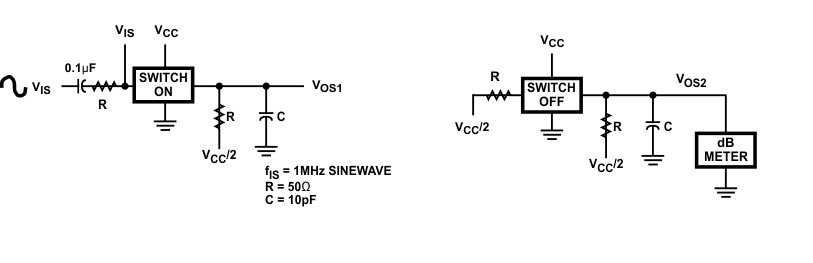

Figure 14-1 Crosstalk
Between Two Switches Test Circuit

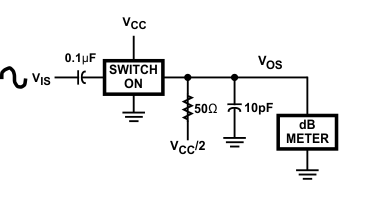

Figure 14-2 Frequency Response Test Circuit

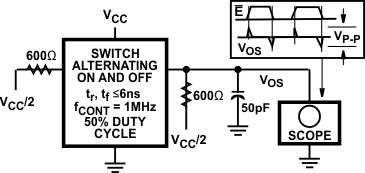

Figure 14-4 Control-To-Switch Feedthrough Noise Test Circuit

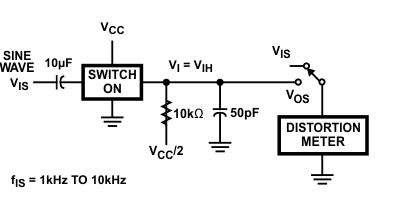

Figure 14-3 Total
Harmonic Distortion Test Circuit

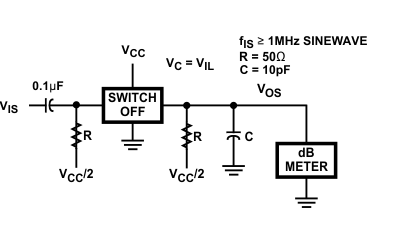

Figure 14-5 Switch OFF Signal Feedthrough
