6 Parameter Measurement Information
Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 ?, tt < 6 ns.
For clock inputs, fmax is measured when the input duty cycle is 50%.
The outputs are measured one at a time with one input transition per measurement.
(1) CL includes probe
and test-fixture capacitance.
Figure 6-1 Load Circuit for Push-Pull
Outputs
(1) The
greater between tPLH and tPHL is the same as
tpd.

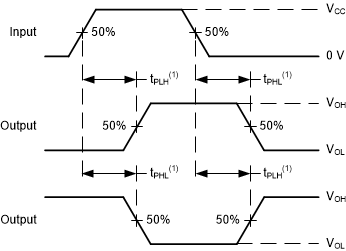

Figure 6-2 Voltage Waveforms,
Propagation Delays for Standard CMOS Inputs
(1) The greater between
tr and tf is the same as tt.

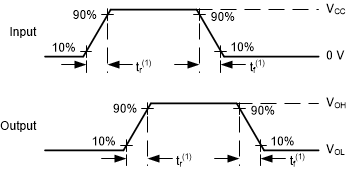

Figure 6-3 Voltage Waveforms, Input
and Output Transition Times for Standard CMOS Inputs
(1) The greater between
tPLH and tPHL is the same as
tpd.

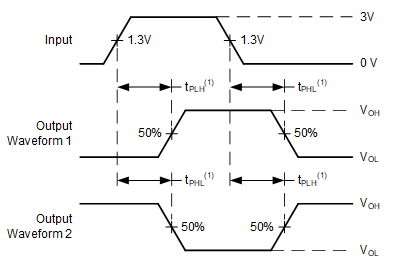

Figure 6-4 Voltage Waveforms,
Propagation Delays for TTL-Compatible Inputs
