3 Pin Configurations and Functions

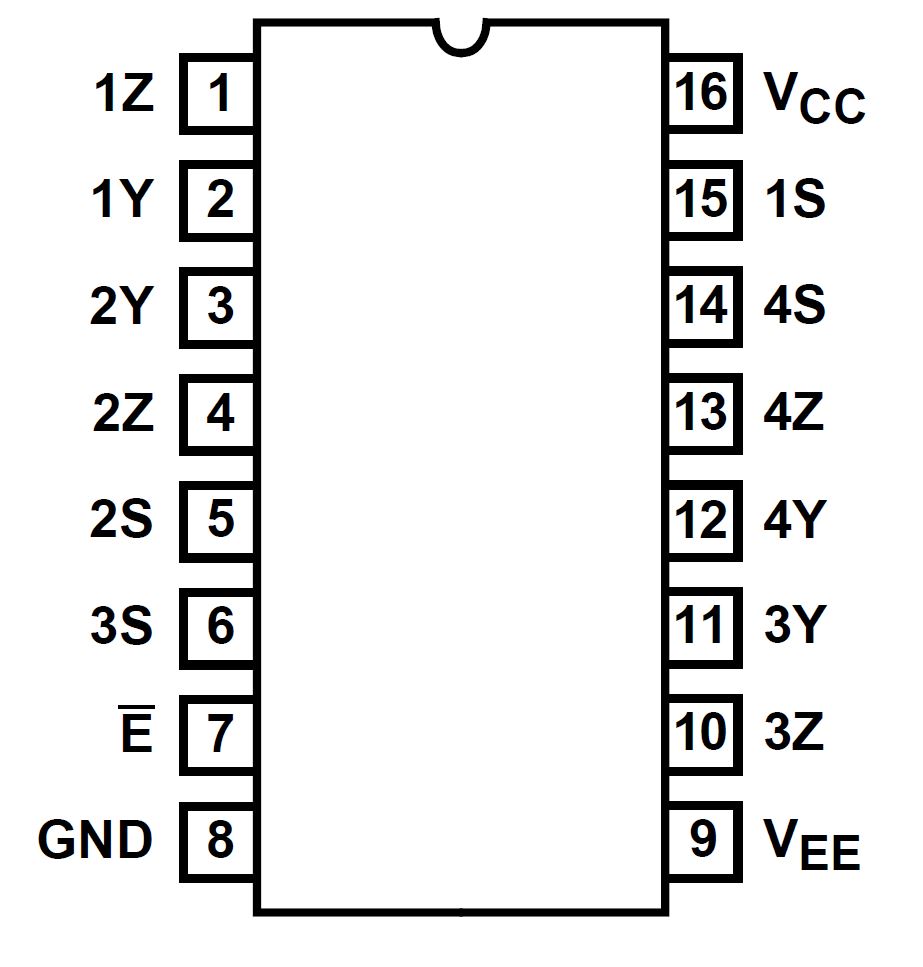

Figure 3-1 CD74HC4316 (TSSOP)Table 3-1 Pin Functions
| PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| 1Z | 1 | I/O | Input/Output for Switch 1 |
| 1Y | 2 | I/O | Input/Output for Switch 1 |
| 2Y | 3 | I/O | Input/Output for Switch 2 |
| 2Z | 4 | I/O | Input/Output for Switch 2 |
| 2S | 5 | I | Control pin for Switch 2 |
| 3S | 6 | I | Control pin for Switch 3 |
| E | 7 | I | Enable Pin |
| GND | 8 | - | Ground Pin |
| VEE | 9 | - | Power Pin |
| 3Z | 10 | I/O | Input/Output for Switch 3 |
| 3Y | 11 | I/O | Input/Output for Switch 3 |
| 4Y | 12 | I/O | Input/Output for Switch 4 |
| 4Z | 13 | I/O | Input/Output for Switch 4 |
| 4S | 14 | I | Control pin for Switch 4 |
| 1S | 15 | I | Control pin for Switch 1 |
| VCC | 16 | - | Power Pin |
