6 Parameter Measurement Information
tpd is the maximum between tPLH and tPHL
tt is the maximum between tTLH and tTHL

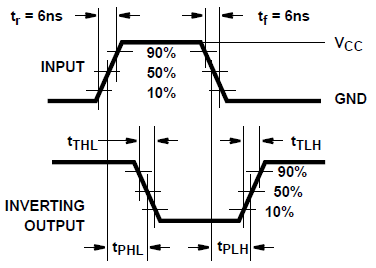

Figure 6-1 HC transition times and
propagation delay times, combination logic

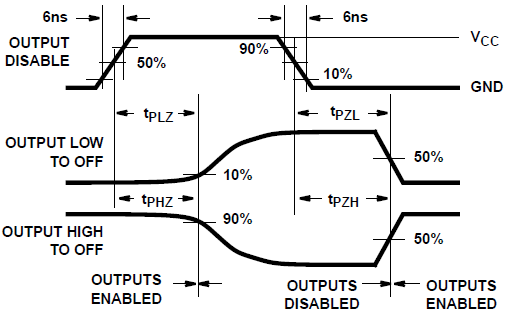

Figure 6-3 HC three-state propagation
delay waveform

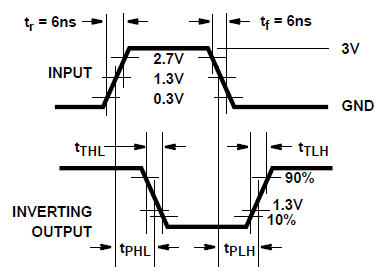

Figure 6-2 HCT transition times and
propagation delay times, combination logic

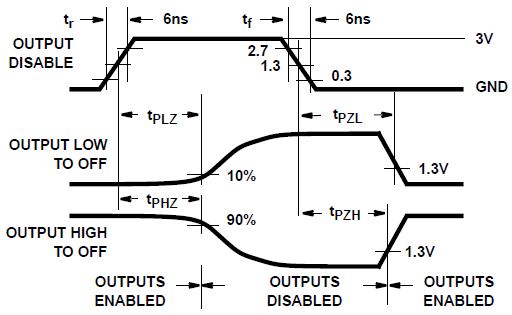

Figure 6-4 HCT three-state
propagation delay waveform

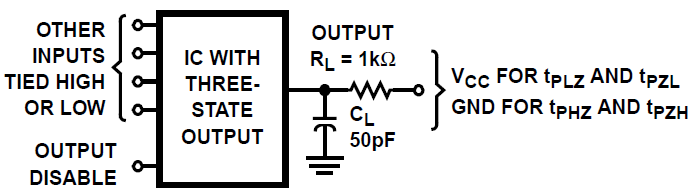

Figure 6-5 HC and HCT three-state
propagation delay test circuit
