6 Parameter Measurement Information

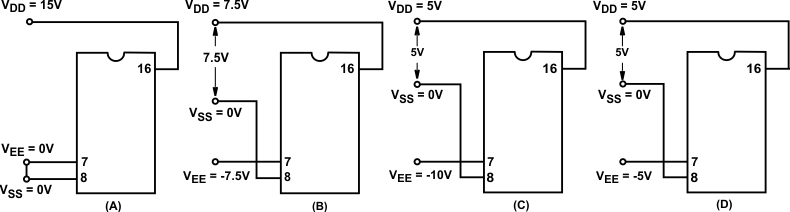

Figure 6-1 Typical Bias VoltagesNote:
The ADDRESS (digital-control inputs) and INHIBIT logic levels are: 0 = VSS
and 1 = VDD. The analog signal (through the TG) may swing from VEE to VDD.
Figure 6-2 Waveforms, Channel Being Turned ON (RL = 1 kΩ)
Figure 6-3 Waveforms, Channel Being Turned OFF (RL = 1 kΩ)

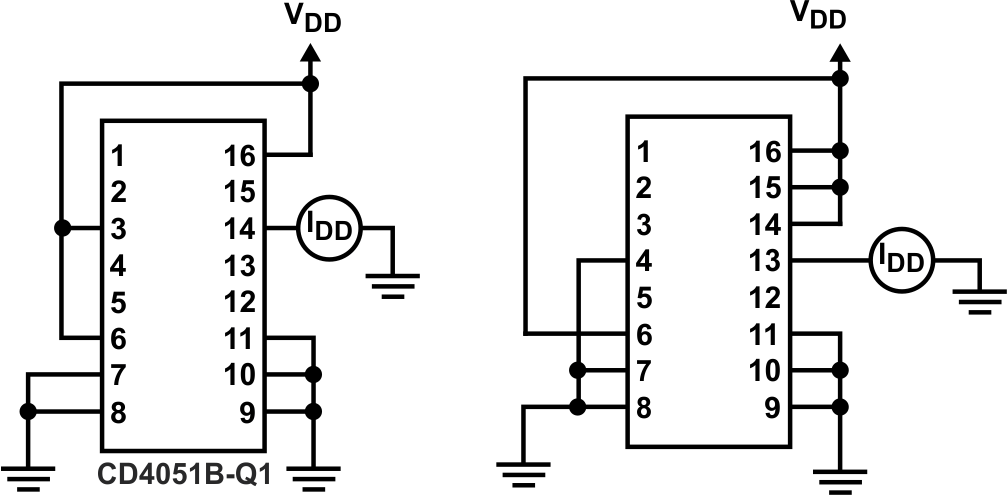

Figure 6-4 OFF Channel Leakage Current – Any Channel OFF

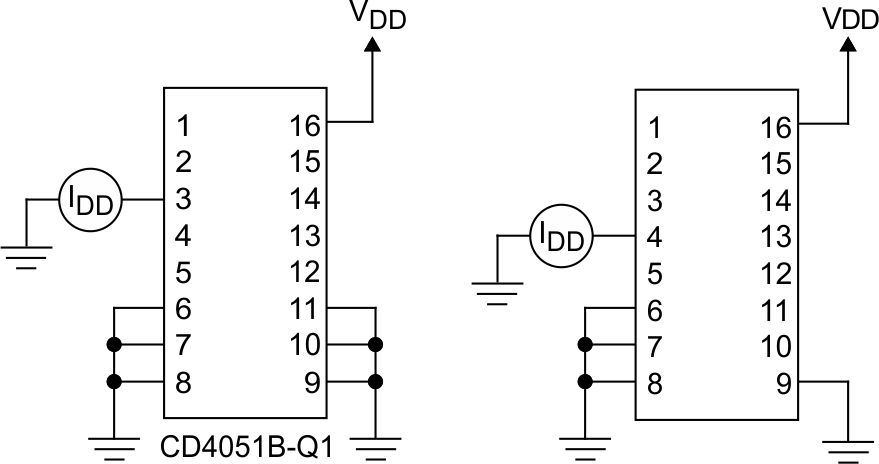

Figure 6-5 On Channel Leakage Current – Any Channel On

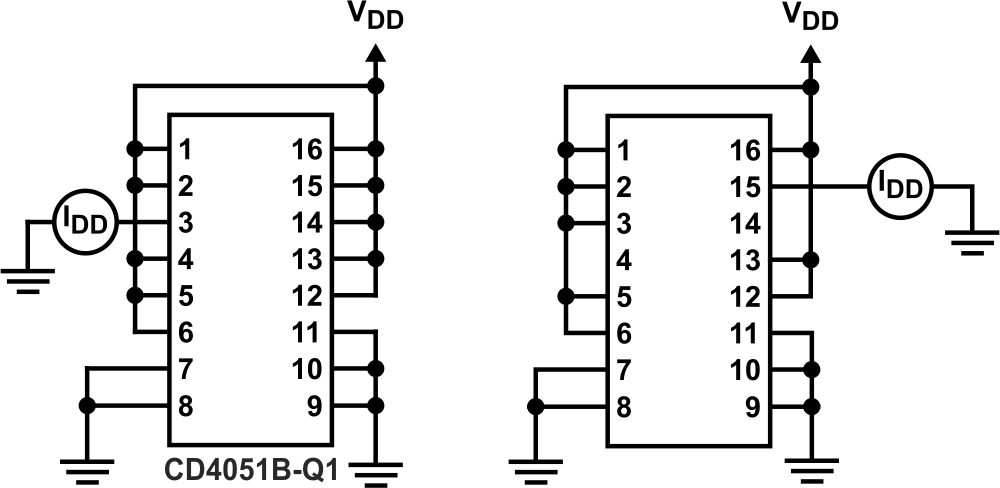

Figure 6-6 OFF Channel Leakage Current – All Channels OFF
Figure 6-7 Propagation Delay – Address Input to Signal Output

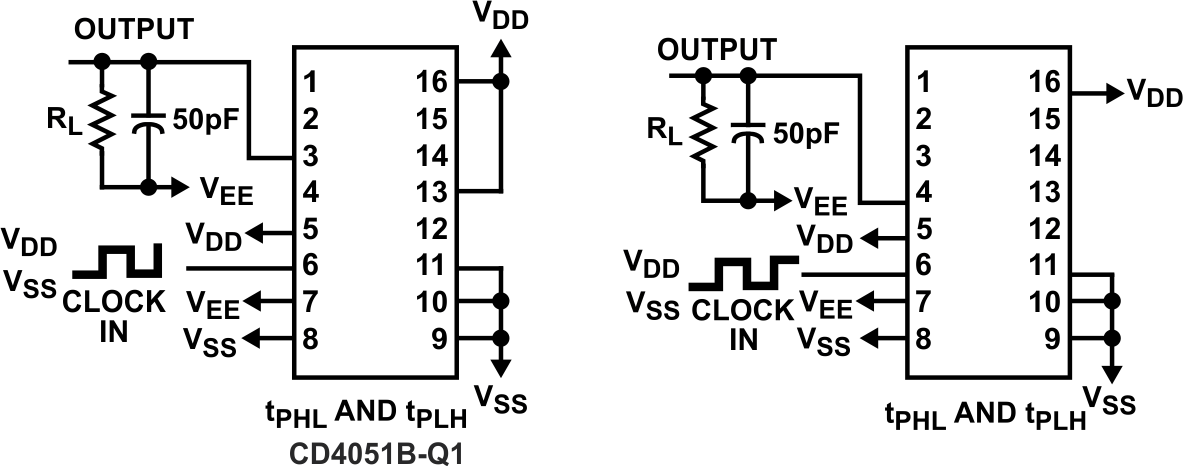

Figure 6-8 Propagation Delay – Inhibit Input to Signal Output

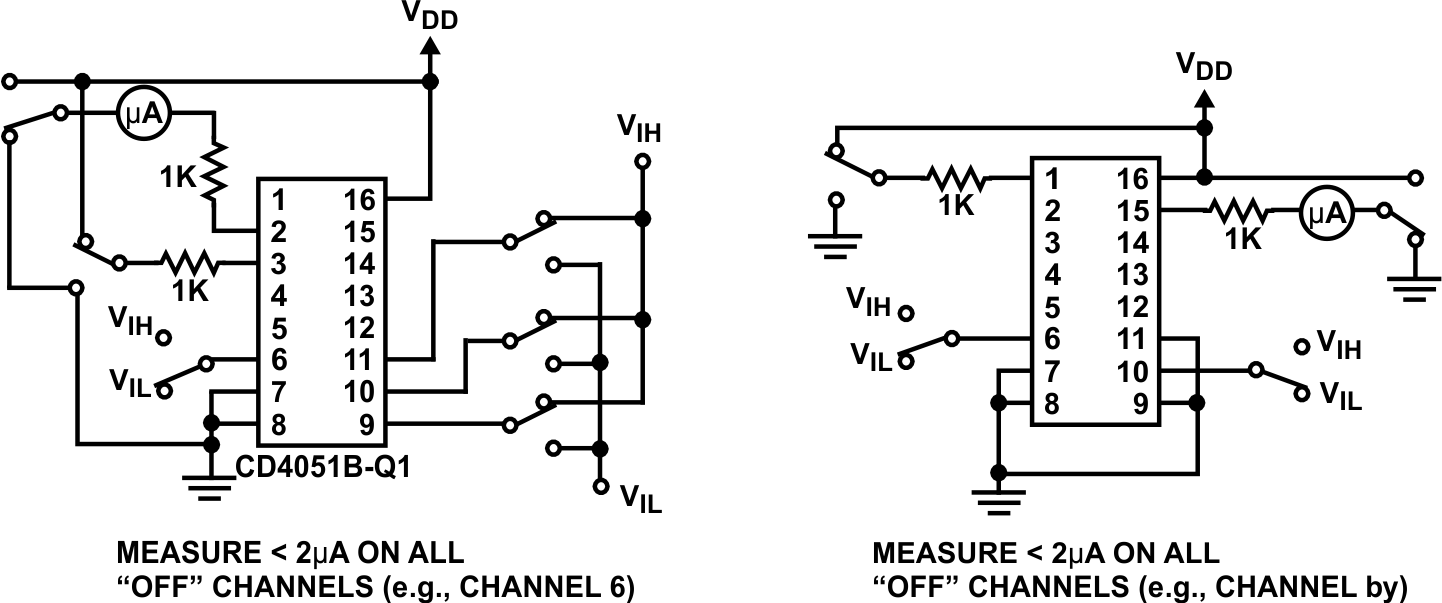

Figure 6-9 Input Voltage Test Circuits (Noise Immunity)
Figure 6-10 Quiescent Device Current

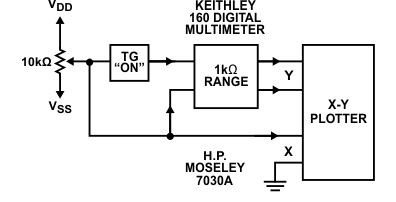

Figure 6-11 Channel ON Resistance Measurement Circuit
Figure 6-12 Input Current
Figure 6-13 Feed-Through (All Types)

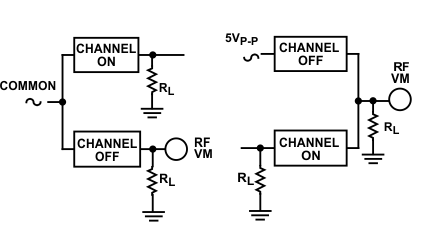

Figure 6-14 Crosstalk Between Any Two Channels (All Types)
Figure 6-15 Crosstalk Between Duals or Triplets ()
Figure 6-16 24-to-1 MUX Addressing
