This section presents the BQ79616-Q1 Evaluation Module (EVM) design as a layout example.
Figure 12-4 Top
Signal Layer
Figure 12-5 Second Layer with Solid, Separate Ground Planes

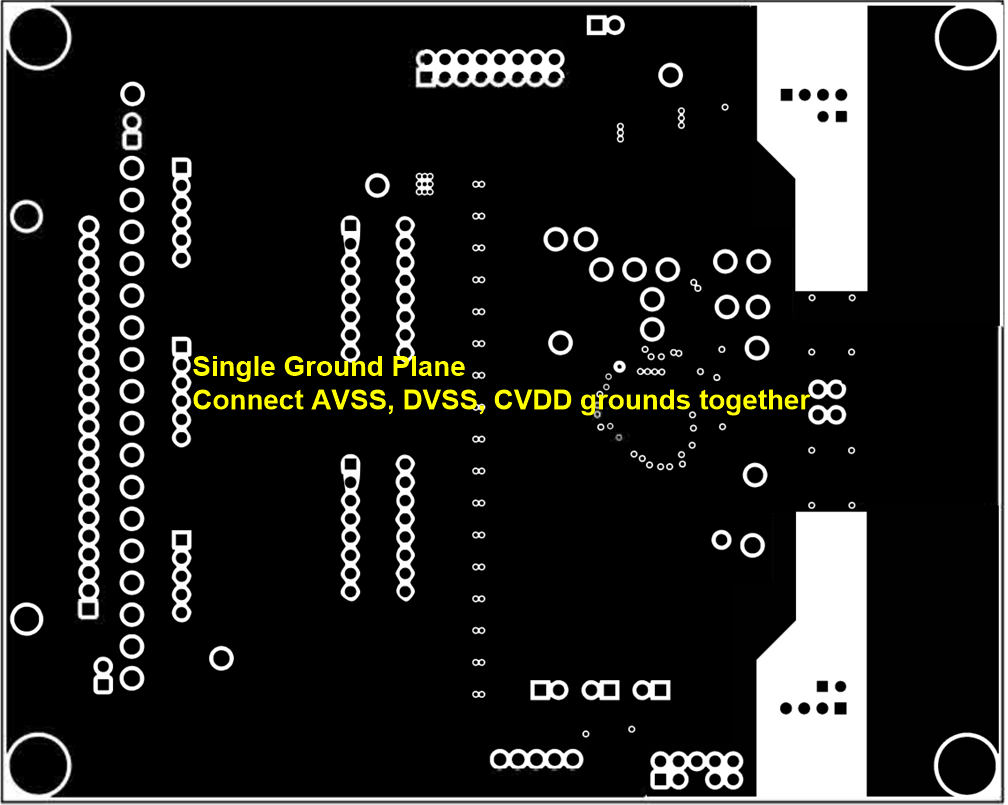

Figure 12-6 ThIrd Layer with Single Ground Plane
