Typical characteristics are taken with
the BMS041 for switching test and GRM188R61C226M is used as CFLY.
| VBAT
= 4.0 V, FSW = 500 kHz |

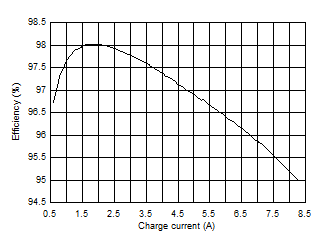

Figure 8-1 Battery Charge Efficiency vs. Charge Current, 1 x 22-μF CFLY per Phase
Switching Frequency
| VBAT
= 4.0 V, FSW = 500 kHz |

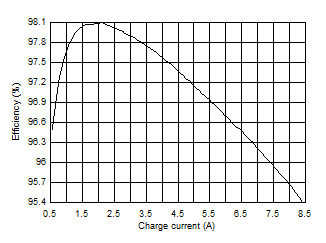

Figure 8-3 Battery Charge Efficiency vs. Charge Current, 2 x 22-μF CFLY per Phase
| VBAT
= 4.0 V, FSW = 500 kHz |

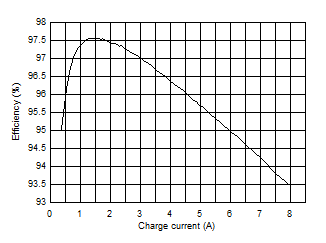

Figure 8-5 Battery Charge Efficiency vs. Charge Current, 3 x 22-μF CFLY per
Phase
| VBAT
= 4.0 V, FSW = 500 kHz |

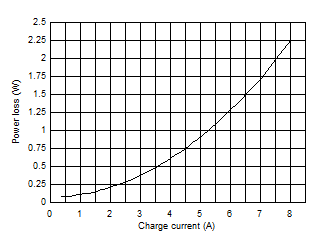

Figure 8-2 Battery Charge Power Loss
vs. Charge Current, 1 x 22-μF CFLY per Phase Switching Frequency
| VBAT
= 4.0 V, FSW = 500 kHz |

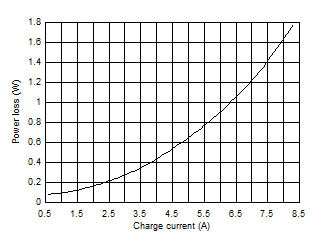

Figure 8-4 Battery Charge Power Loss vs. Charge Current, 2 x 22-μF CFLY per
Phase
| VBAT
= 4.0 V, FSW = 500 kHz |

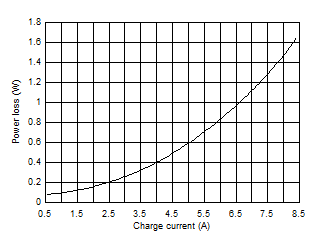

Figure 8-6 Battery Charge Power Loss vs. Charge Current, 3 x 22-μF CFLY per
Phase
