10.2.1.3 Application Curves

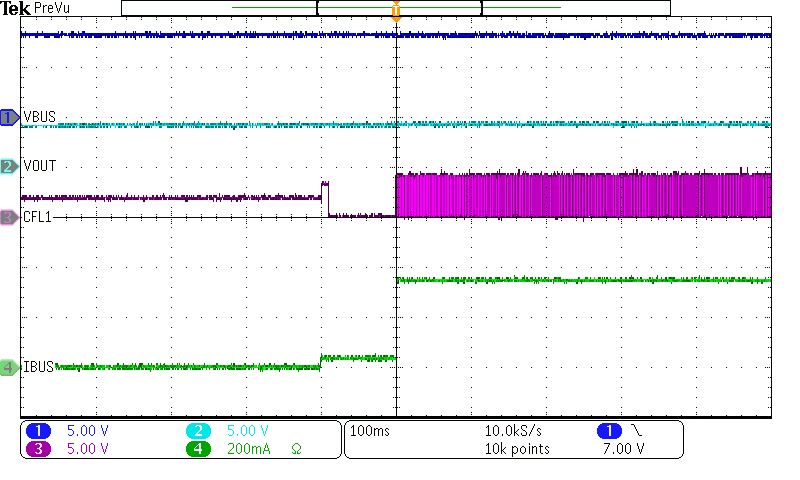

Figure 10-3 Switched Cap Mode Power Up

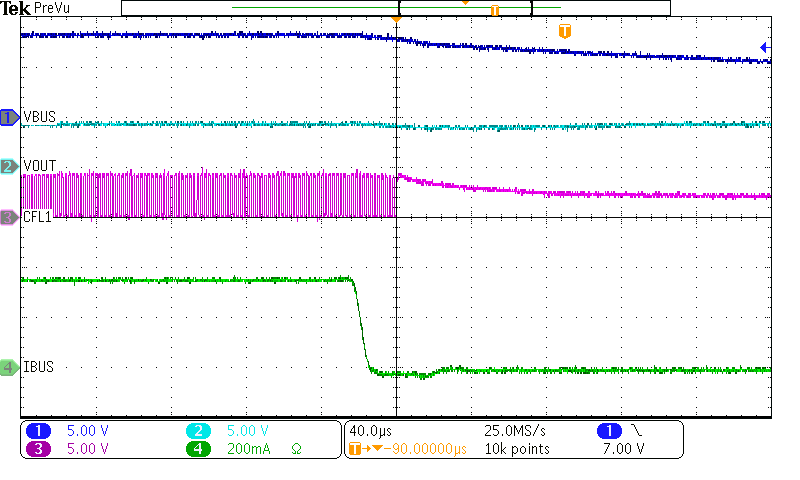

Figure 10-5 Adapter Unplug in Switched Cap Mode
Figure 10-7 VBUSOVP in Switched Cap Mode

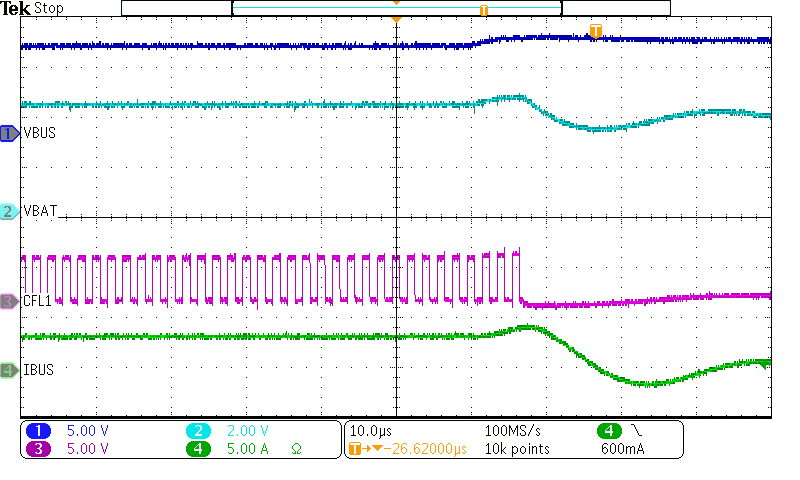

Figure 10-9 IBUSOCP in Switched Cap Mode
Figure 10-11
VBATOVP in Switched Cap Mode

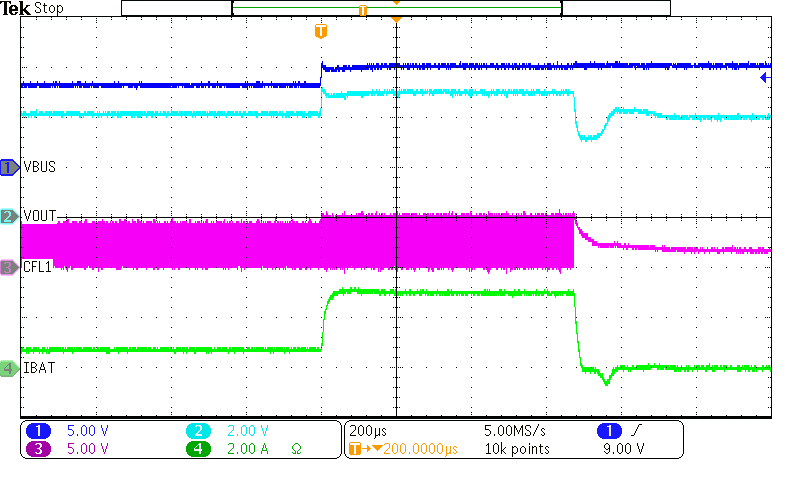

Figure 10-13 IBATOCP in Switched Cap Mode
| VAC1 and VAC2 short to VBUS, ACDRV1 and ACDRV2 short to ground |
| VAC1 connected to input source 1, VBUS connected to input source 2, VAC2 short to VBUS, ACDRV1 active, ACDRV2 short to ground |

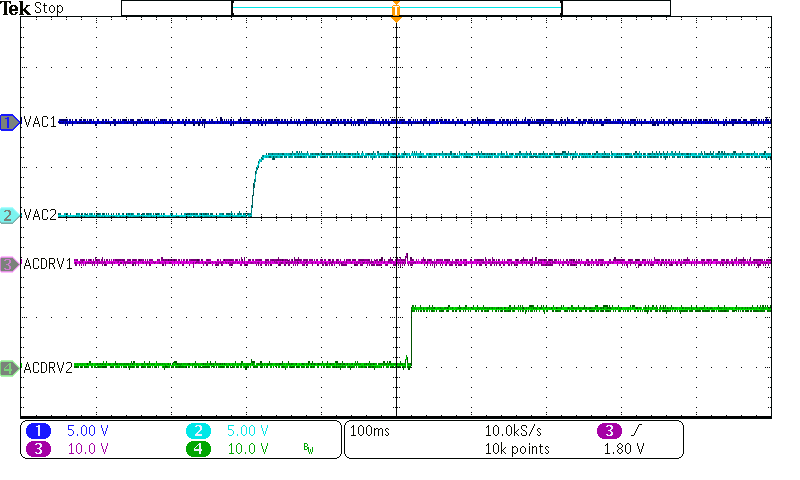

| VAC1 connected to input source 1, VAC2 connected to input source 2, ACDRV1 and ACDRV2 active |

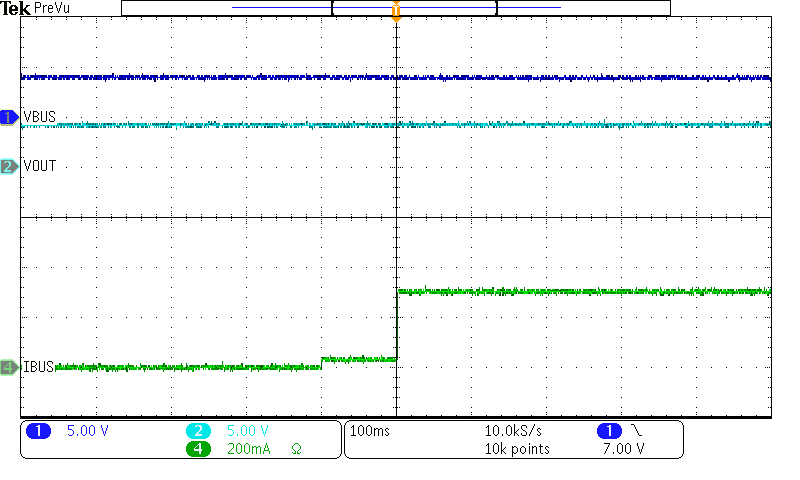

Figure 10-4 Bypass Mode Power Up

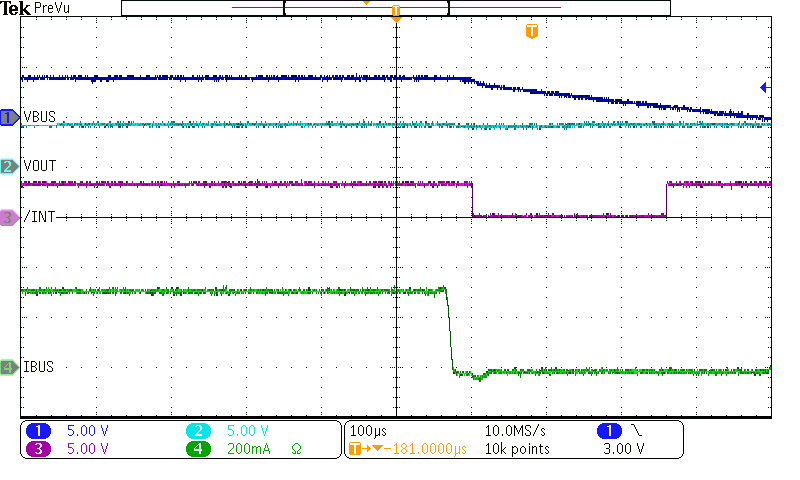

Figure 10-6 Adapter Unplug in Bypass Mode
Figure 10-8 VBUSOVP in Bypass Mode

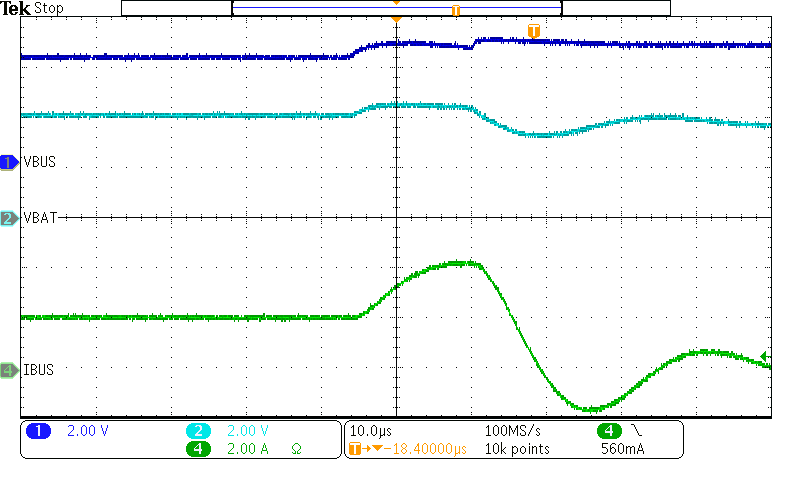

Figure 10-10 IBUSOCP in Bypass Mode
Figure 10-12 VBATOVP in Bypass Mode
Figure 10-14 IBATOCP in Bypass Mode

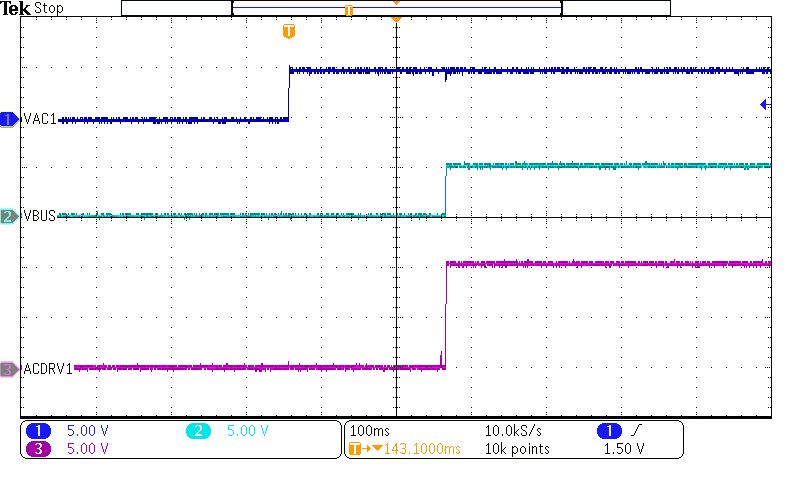

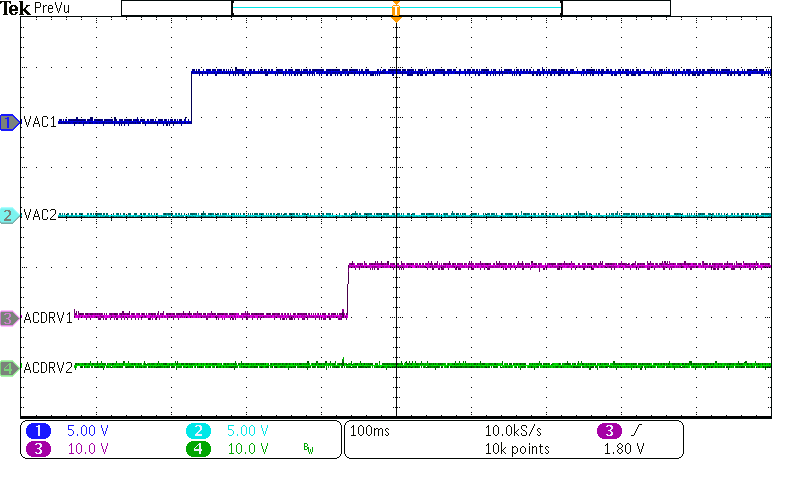

| VAC1 connected to input source, VAC2 short to VBUS, ACDRV1 active, ACDRV2 short to ground |
| VAC1 connected to input source 1, VBUS connected to input source 2, VAC2 short to VBUS, ACDRV1 active, ACDRV2 short to ground |
| VAC1 connected to input source 1, VAC2 connected to input source 2, ACDRV1 and ACumDRV2 active |
