ZHCS128B May 2011 – October 2015 AMC80

PRODUCTION DATA.

封裝選項

機械數據 (封裝 | 引腳)

PW|24
- MPDS363A

散熱焊盤機械數據 (封裝 | 引腳)

訂購信息

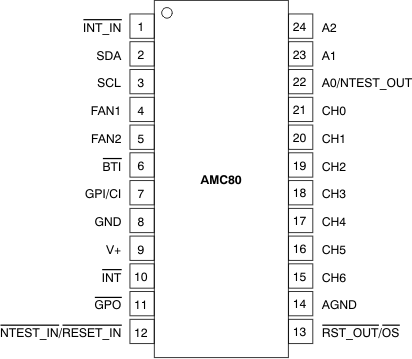

5 Pin Configuration and Functions

PW Package

24-Pin TSSOP

Top View

Pin Functions

PIN		I/O	TYPE	DESCRIPTION
NO.	NAME	I/O	TYPE	DESCRIPTION
1	INT_IN	Input	Digital	Interrupt input pin. An active low input that extends the INT_IN signal to the INT output of the AMC80.
2	SDA	I/O	Digital	Serial bus data line for SMBus, open-drain; requires pull-up resistor.
3	SCL	I/O	Digital	Serial bus clock line for SMBus, open-drain; requires pull-up resistor.
4	FAN1	Input	Digital	Fan tachometer input pin
5	FAN2	Input	Digital	Fan tachometer input pin
6	BTI	Input	Digital	Board temperature interrupt pin. BTI is driven by the over-temperature shutdown (OS) outputs of the additional temperature sensors. This pin has an internal 10-kΩ pull-up resistor.
7	GPI(CI)	Input	Digital	General-purpose input pin (chassis interrupt). An active high interrupt input pin to latch a chassis interrupt event.
8	DGND	Power	Analog	Digital ground.
9	V+	Power	Analog	Positive supply voltage (3V to 5.5V).
10	INT	Output	Digital	Non-maskable interrupt (active high, PMOS, push-pull) or interrupt request (active low, NMOS, push-pull) pin. The INT pin becomes active when INT_IN, BTI, or GPI interrupts. This pin does not require a pullup resistor to V+.
11	GPO	Output	Digital	General-purpose output pin. GPO is an active low, NMOS, open-drain output. This pin is intended to drive an external power PMOS for software power control or to control power to a cooling fan.
12	NTEST_IN/RESET_IN	Input	Digital	This pin is an active-low input that enables NAND tree board-level connectivity testing. The AMC80 resets to its power-on state when NAND tree connectivity is enabled.
13	RST_OUT/OS	Output	Digital	This pin is an NMOS open-drain output. RST_OUT provides a master reset to devices connected to this line. OS is dedicated to the temperature reading alarm.
14	AGND	Power	Analog	Analog ground. This pin must be tied to a low-noise analog ground plane for optimum performance.
15	CH6	Input	Analog	Analog input channel 6
16	CH5	Input	Analog	Analog input channel 5
17	CH4	Input	Analog	Analog input channel 4
18	CH3	Input	Analog	Analog input channel 3
19	CH2	Input	Analog	Analog input channel 2
20	CH1	Input	Analog	Analog input channel 1
21	CH0	Input	Analog	Analog input channel 0
22	A0/NTEST_OUT	I/O	Digital	The lowest order bit of the serial bus address. During a NAND tree test for ATE board-level connectivity, this pin functions as an output.
23	A1	Input	Digital	Address pin 1
24	A2	Input	Digital	Address pin 2
