8.3.5 Manchester Coding Feature

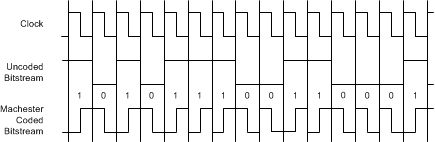

The AMC1306Ex offers the IEEE 802.3-compliant Manchester coding feature that generates at least one transition per bit to support clock signal recovery from the bitstream. A Manchester coded bitstream is free of dc components. The Manchester coding combines the clock and data information using exclusive or (XOR) logical operation and results in a bitstream as shown in Figure 52. The duty cycle of the Manchester encoded bitstream depends on the duty cycle of the input clock CLKIN.
Figure 52. Manchester Coded Output of the AMC1306Ex
