7.3.5.1 Decimation Filter Response
This section provides the different decimation filter responses with a normalized ADC sampling rate. The complex filter pass band is ~ 80% (-1 dB) with a minimum of 85 dB stop band rejection.
Figure 7-24 Complex Decimation by 4 Filter Response
Figure 7-26 Complex Decimation by 8 Filter Response

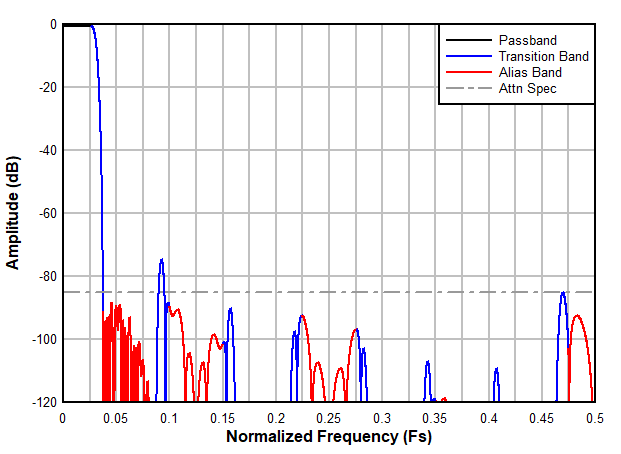

Figure 7-28 Complex Decimation by 16 Filter Response
Figure 7-30 Complex Decimation by 32 Filter Response

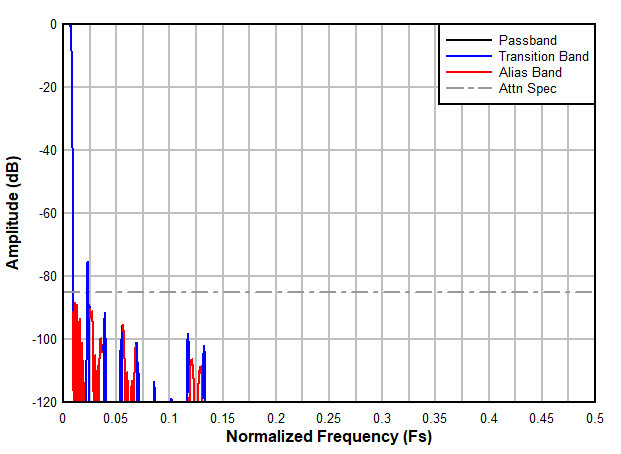

Figure 7-32 Complex Decimation by 64 Filter Response
Figure 7-34 Decimation by 64 Passband Ripple Response
Figure 7-36 Complex Decimation by 128 Filter Response
Figure 7-25 Decimation by 4 Passband
Ripple Response
Figure 7-27 Decimation by 8 Passband Ripple Response

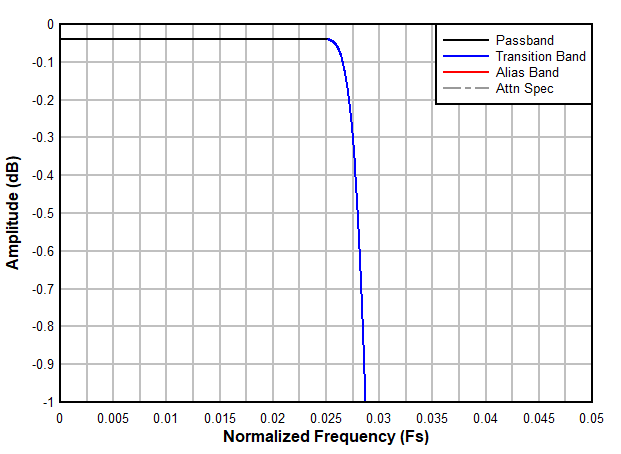

Figure 7-29 Decimation by 16 Passband Ripple Response
Figure 7-31 Decimation by 32 Passband Ripple Response
Figure 7-33 Complex Decimation by 64 Filter Response
Figure 7-35 Complex Decimation by 128 Filter Response
Figure 7-37 Decimation by 128 Passband Ripple Response
