6.2 Output Regulation

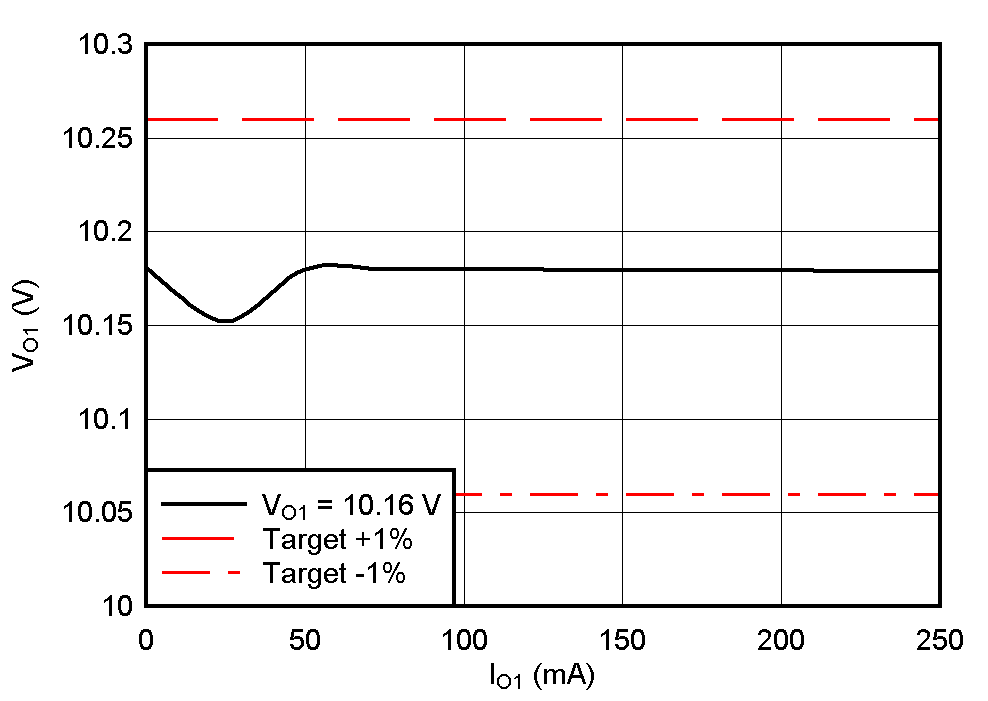

Figure 6-2 Main Output Voltage Regulation
Versus Main Output Load (Io2, Io3, Io4 = 10%)

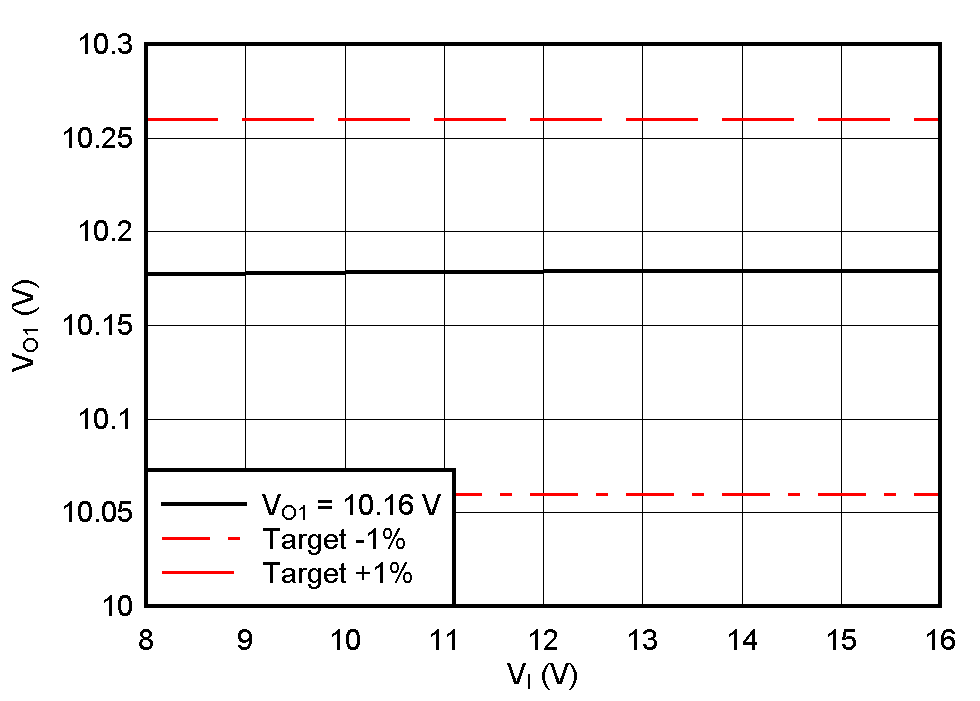

Figure 6-4 Main Output Voltage Regulation
Versus Input Voltage (Io2, Io3, Io4 = 100%)

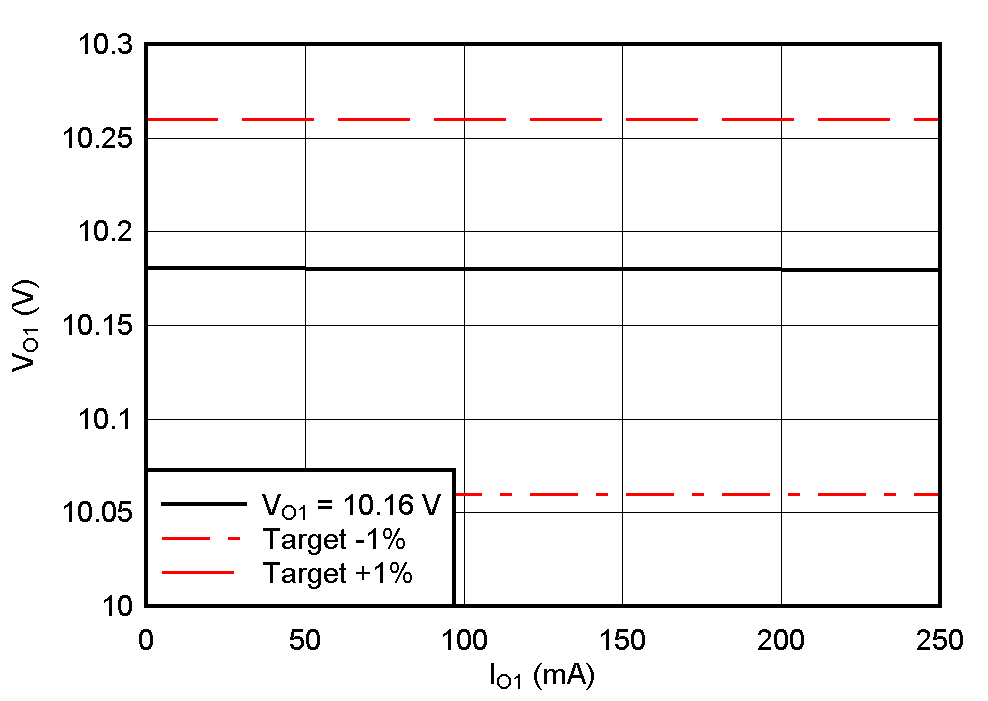

Figure 6-3 Main Output Voltage Regulation
Versus Main Output Load (Io2, Io3, Io4 = 100%)

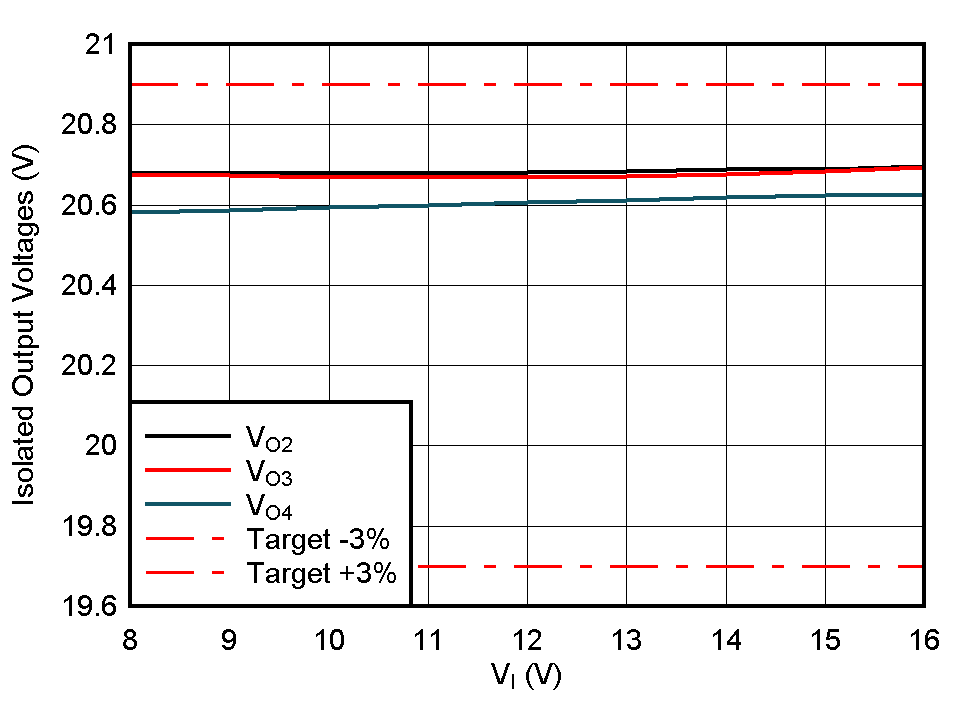

Figure 6-5 Voltage Regulation of Isolated
Outputs Versus Input Voltage at 10% load
