4.8 AC Loop Response

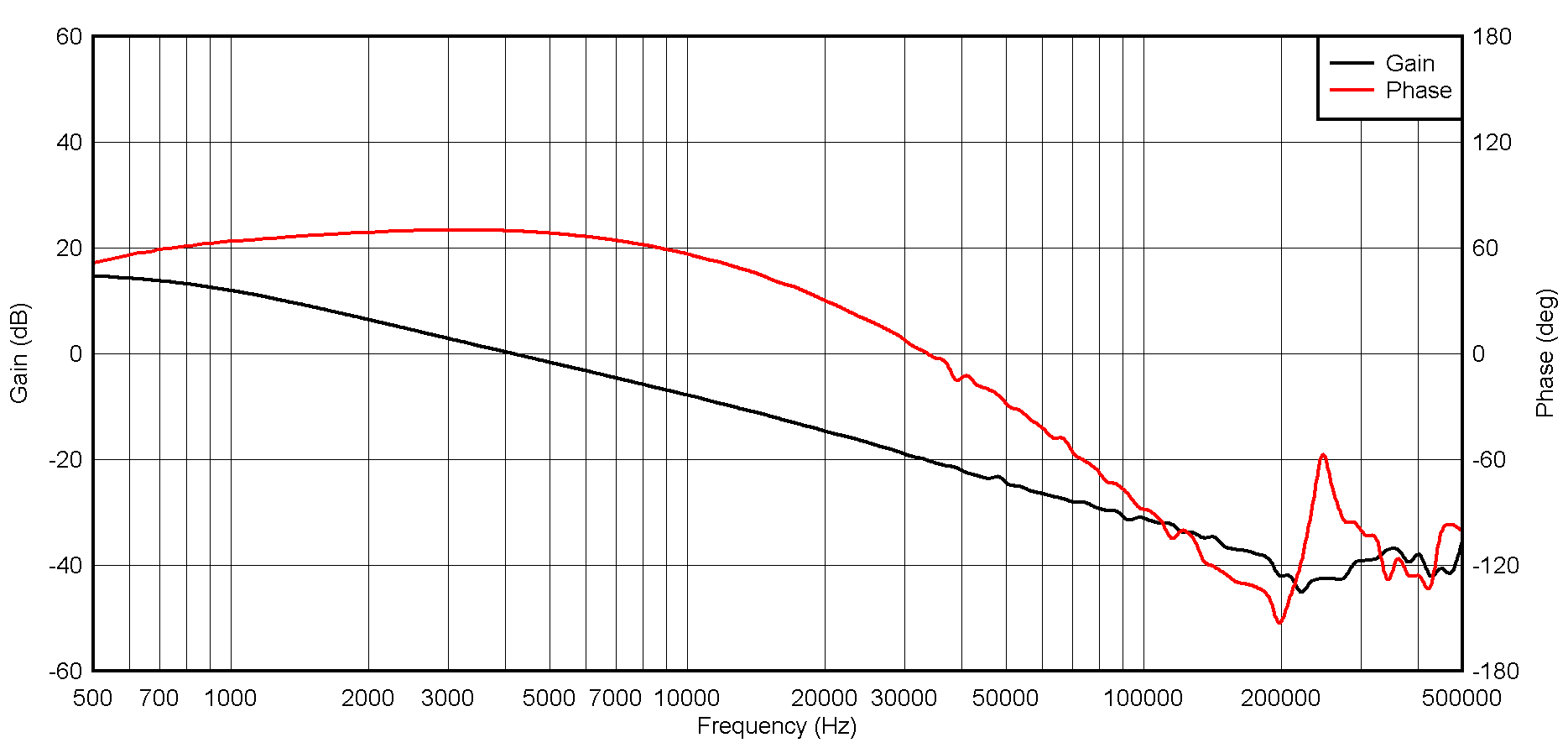

Figure 4-18 Control Loop Response
VSUPPLY = 18 V, ILOAD = 4 A

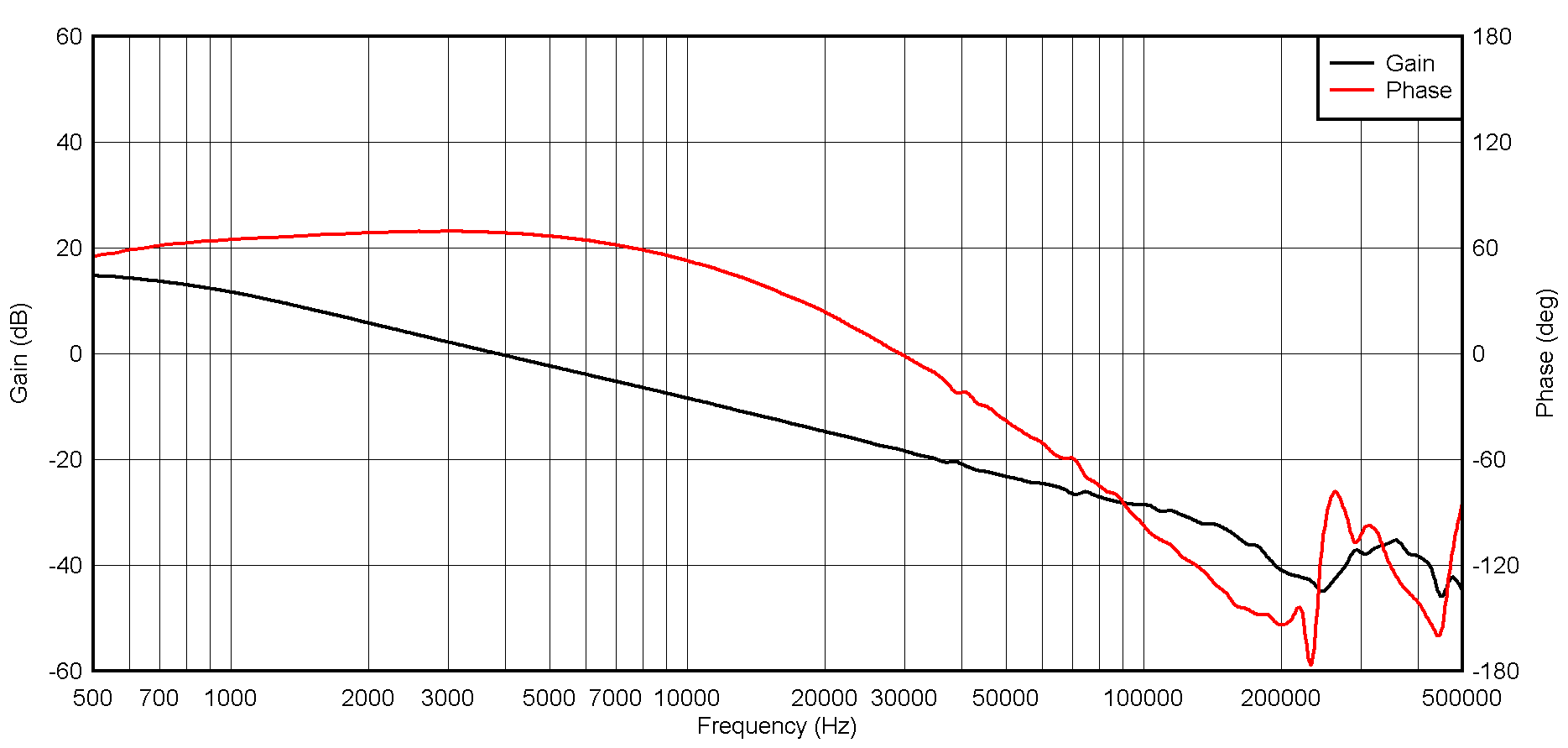

Figure 4-19 Control Loop Response
VSUPPLY = 24 V, ILOAD = 4 A
Figure 4-20 Control Loop Response
VSUPPLY = 36 V, ILOAD = 4 A
