The active monopole antenna was the first test performed. Figure 2-2 and Figure 2-3 show the test results along with the room baseline.

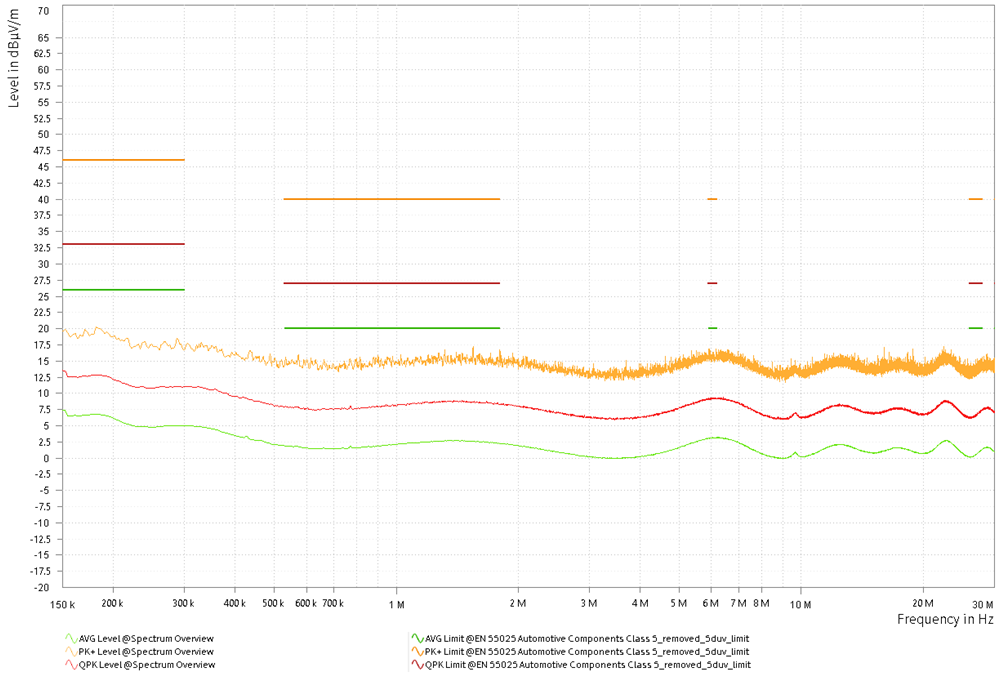

Figure 2-2 Active Monopole Antenna Baseline

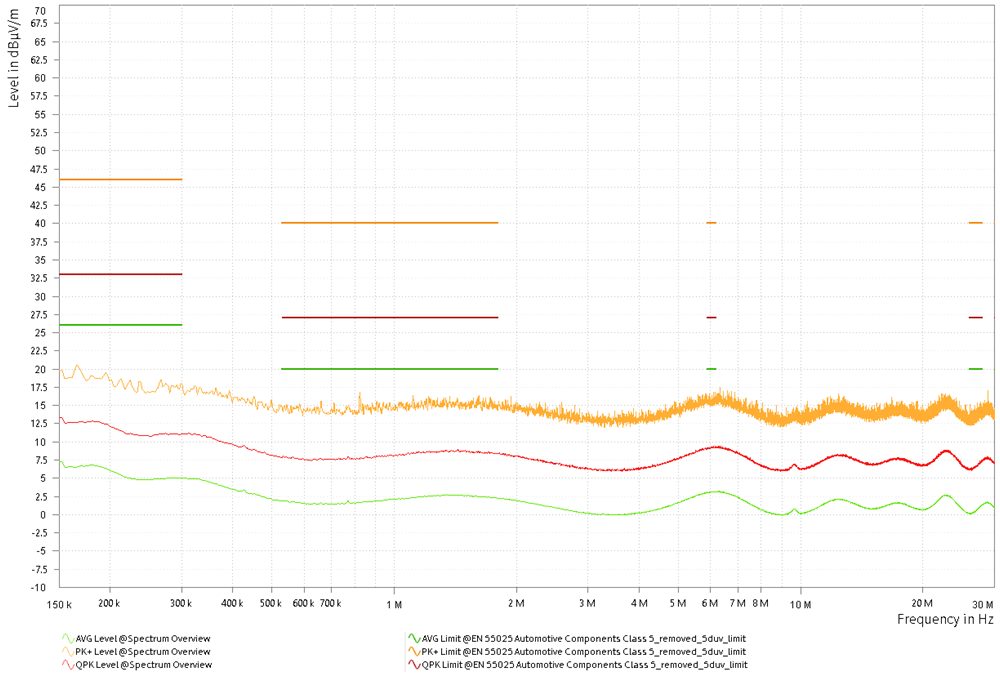

Figure 2-3 Active Monopole Antenna Results

The limits of the testing are shown on all graphs to create an easy visual for the device performance. The next test performed used the bi-conical antenna to measure the board.

Figure 2-4 Bi-Conical Antenna Baseline

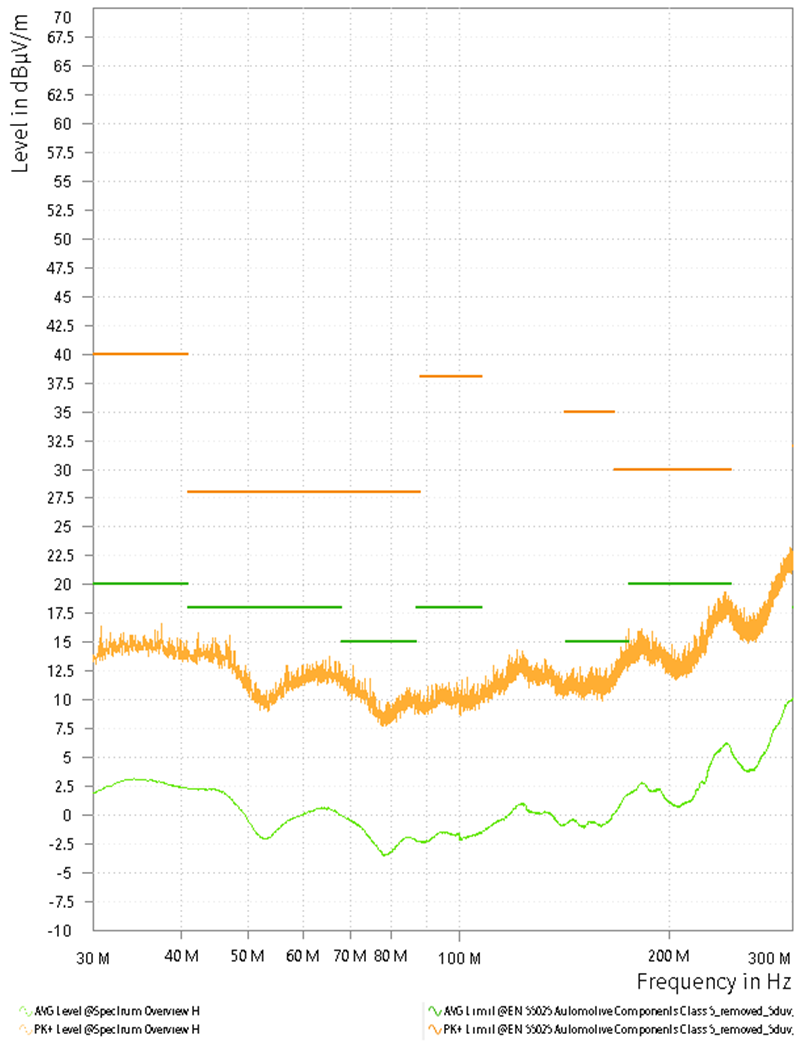

Figure 2-5 Bi-Conical Antenna Results

Next, the log-periodic antenna was used to perform the same test, see the results in Figure 2-6 and Figure 2-7.

Figure 2-6 Log-Periodic Antenna Baseline

Figure 2-7 Log-Periodic Antenna Results

Lastly, the horn antenna is used to perform the test. Figure 2-8 shows the horn antenna baseline and Figure 2-9 shows the horn antenna results.

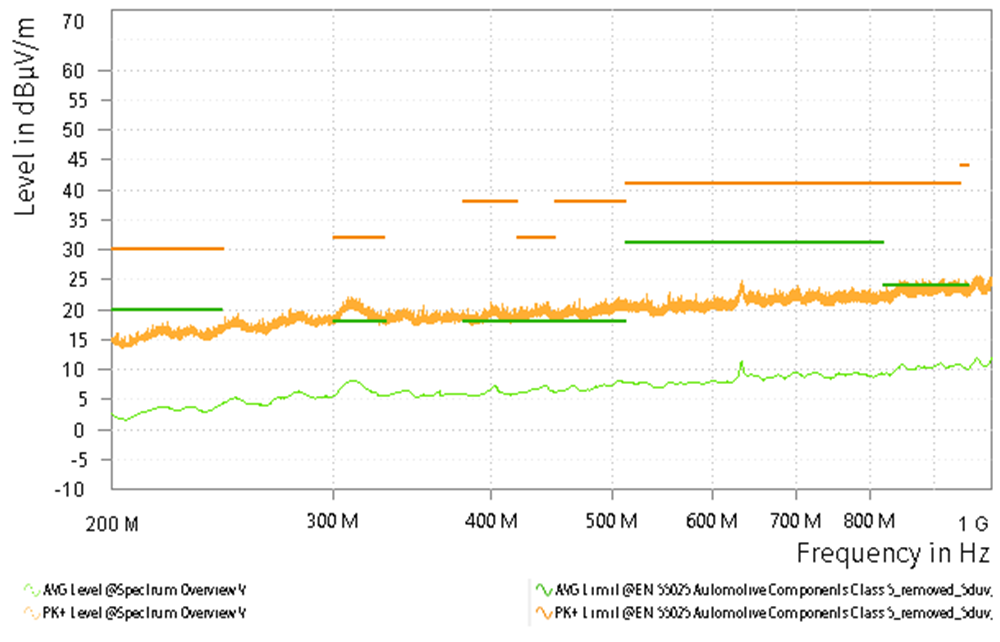

Figure 2-8 Horn Antenna Baseline

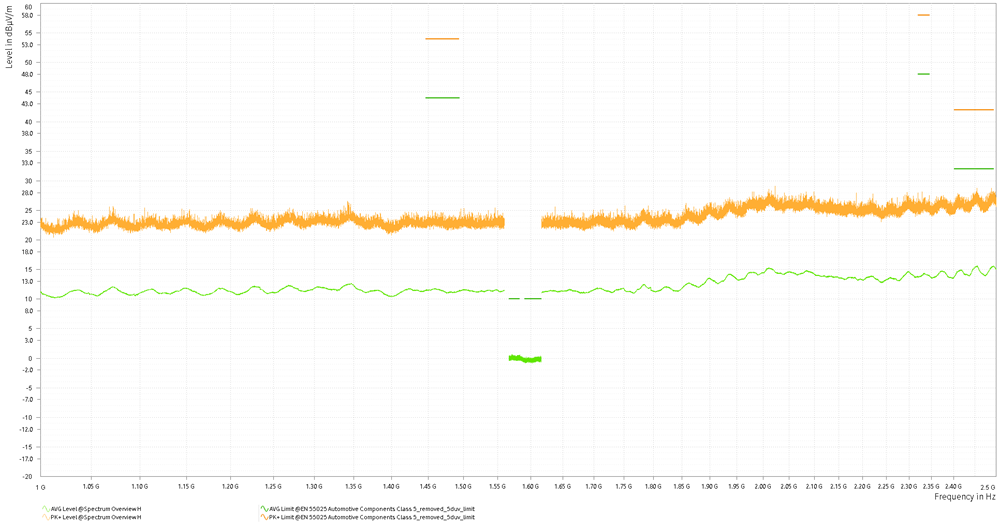

Figure 2-9 Horn Antenna Results

All of the radiated tests passed the CISPR25 requirements without concern or need for modification.
