SLVUBW7 May 2020
- TPS7H4001QEVM-CVAL Evaluation Module User's Guide
4.4 Soft Startup
Display CH1 (PH1) and CH2 (VOUT1) [DC coupled, 500 mV/div] on oscilloscope to monitor the switching phase and the soft start profile of the output voltage as shown in Figure 6.

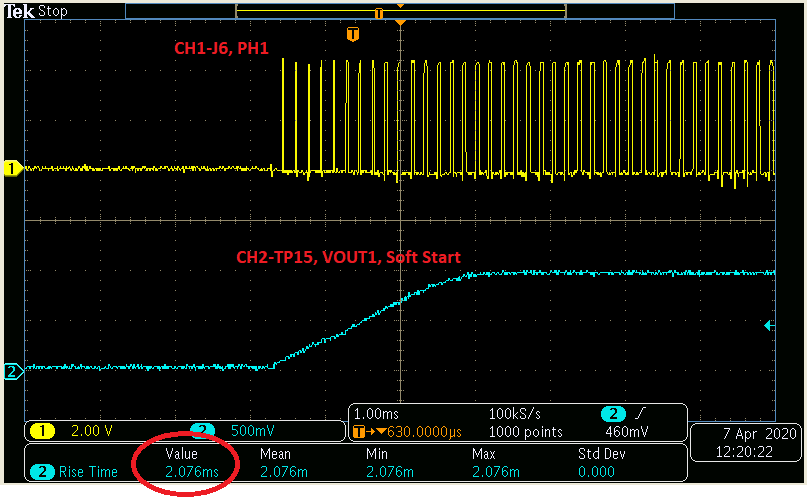

Figure 6. VOUT Soft Start (VIN = 5 V, VOUT = 1 V, IOUT = 72 A)
