4.6 Output Voltage Ripple
Figure 4-6, Figure 4-7, Figure 4-8 show the TPS56C230EVM output voltage ripple. The load currents are 10 mA, 800 mA, and 12 A. VIN = 12 V. The ripple voltage is measured directly across TP5 and TP11.

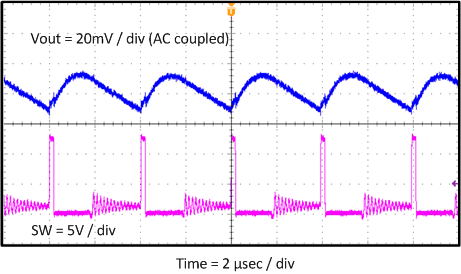

Figure 4-6 TPS56C230EVM Output Ripple, 10-mA Load

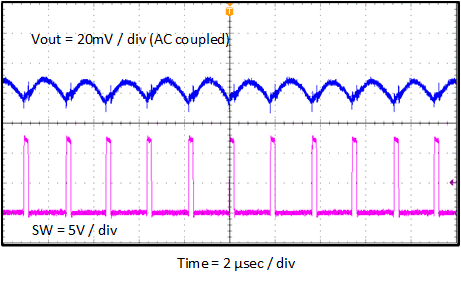

Figure 4-7 TPS56C230EVM Output Ripple, 800-mA Load
Figure 4-8 TPS56C230EVM Output Ripple, 12-A Load
