4 Board Layout
This section provides the TPS62184EVM-581 board layout and illustrations. The Gerbers are available on the EVM product page: TPS62184EVM-581. Rev. B of the PCB just filled the vias under U1 to improve manufacturability. No copper changes were made from Rev. A.
Figure 4-1 Assembly
Layer
Figure 4-2 Top Silk
Layer

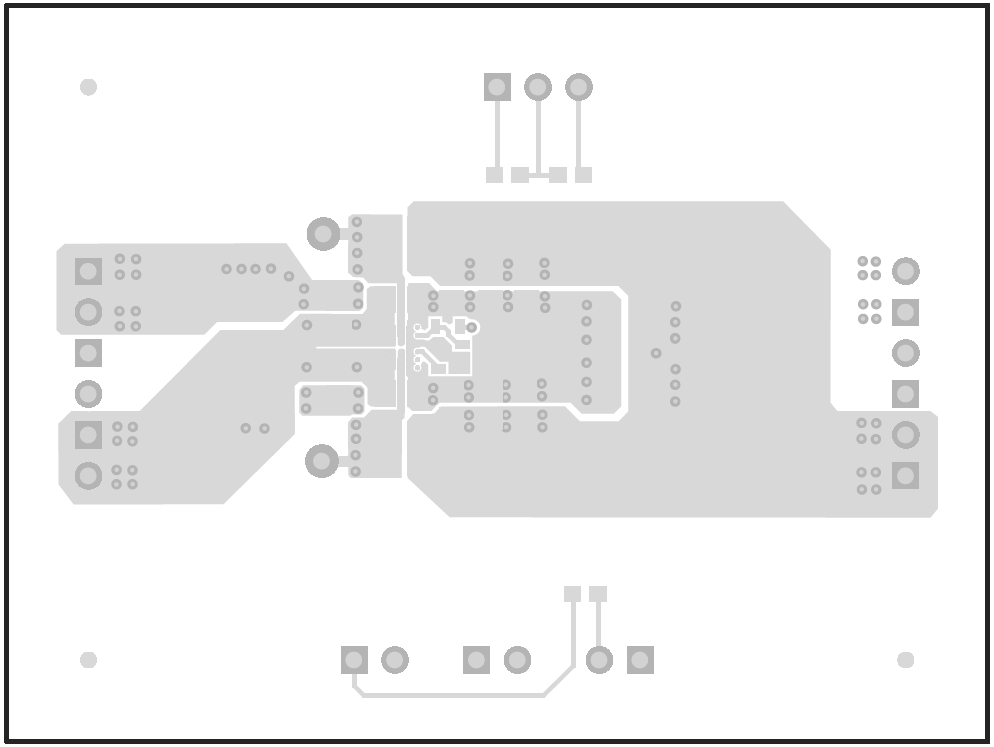

Figure 4-3 Top
Layer
Figure 4-4 Internal
Layer 1
Figure 4-5 Internal
Layer 2
Figure 4-6 Bottom
Layer
