8 EVM Assembly Drawing and PCB layout
Figure 8-1 through Figure 8-8 show the design of the TPS53819AEVM-123 printed-circuit board (PCB). The EVM has been designed using six layers, 2-oz copper circuit board.

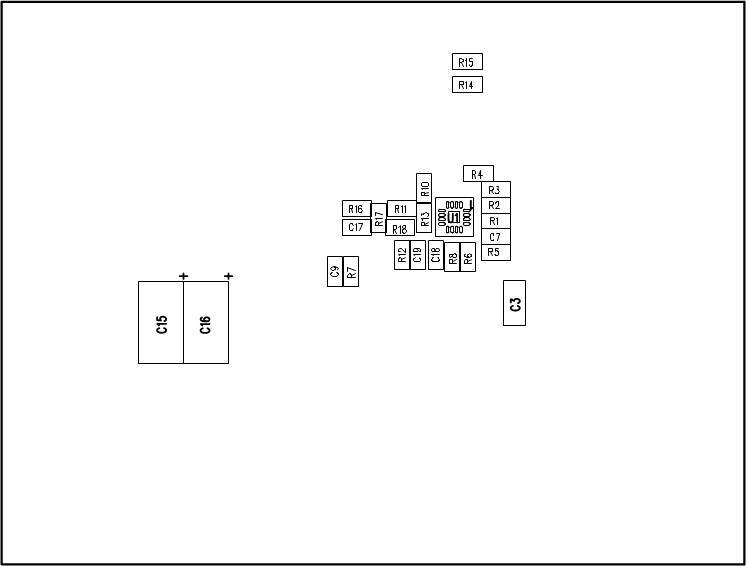

Figure 8-1 TPS53819AEVM-123 Top
Layer Assembly Drawing (Top View)
Figure 8-2 TPS53819AEVM-123 Bottom
Layer Assembly Drawing (Bottom View)

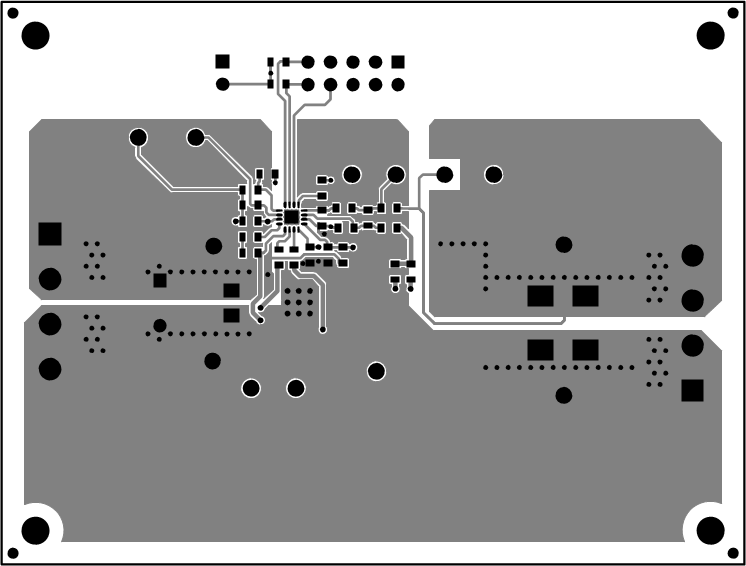

Figure 8-3 TPS53819AEVM-123 Top
Copper (Top View)

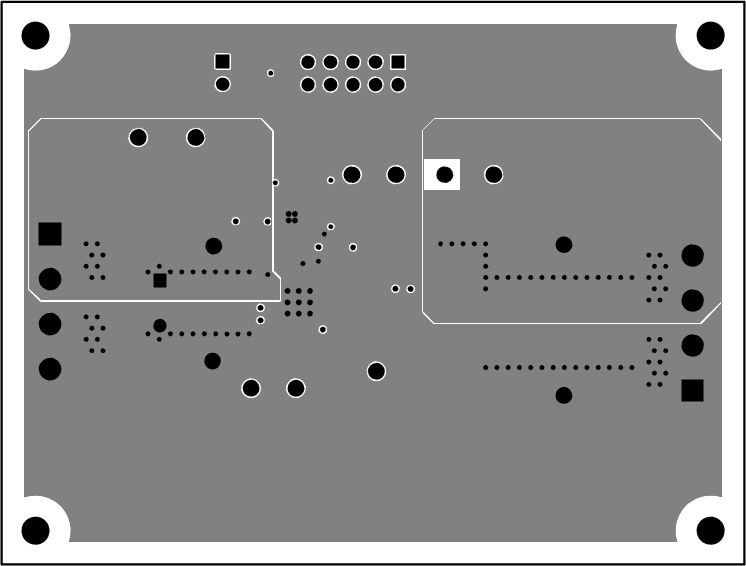

Figure 8-4 TPS53819AEVM-123 Internal
Layer 1 (Top View)

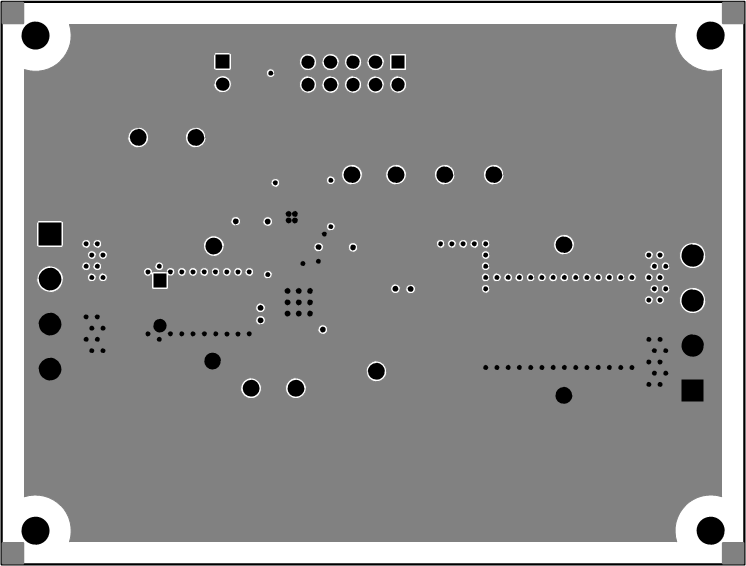

Figure 8-5 TPS53819AEVM-123 Internal
Layer 3 (Top View)

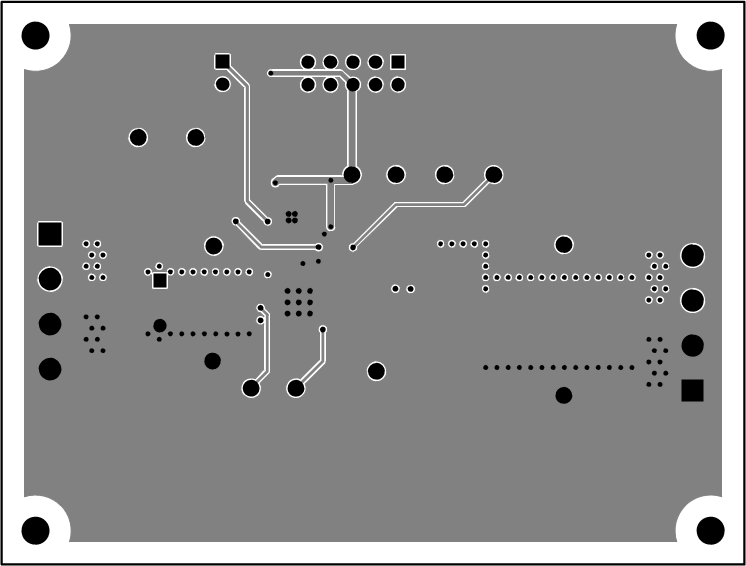

Figure 8-6 TPS53819AEVM-123 Internal
Layer 4 (Top View)

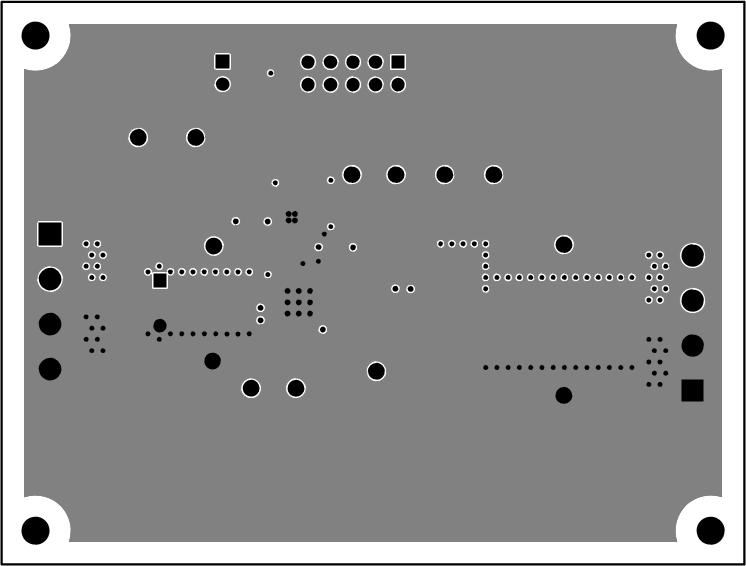

Figure 8-7 TPS53819AEVM-123 Internal
Layer 5 (Top View)

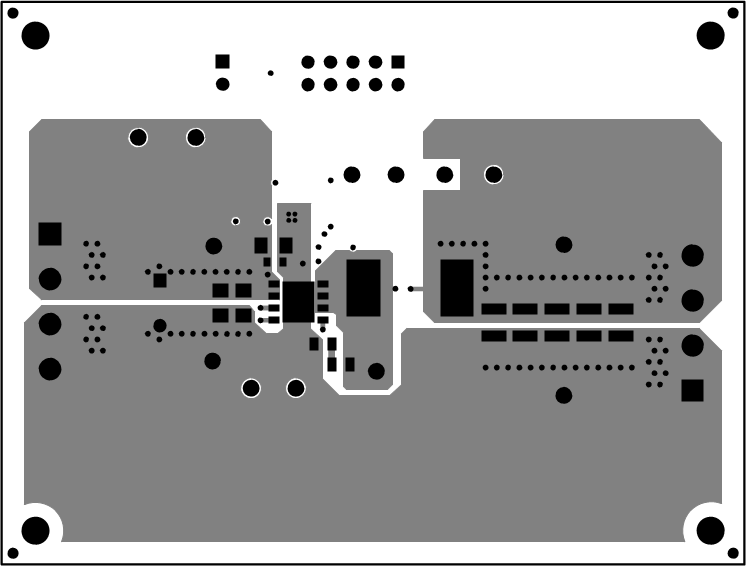

Figure 8-8 TPS53819AEVM-123 Bottom
Copper (Top View)
