4.9.1 Start-Up and Shutdown Converter 1

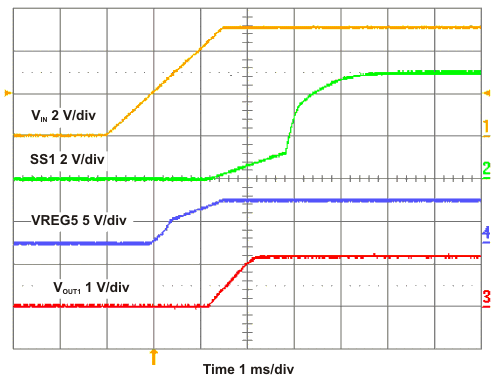

The TPS54295EVM start-up waveform of converter 1 relative to VIN is shown in Figure 4-16 and the shut-down waveform is shown in Figure 4-17.
Figure 4-16 TPS54295EVM Converter 1 Start-Up Relative to VIN

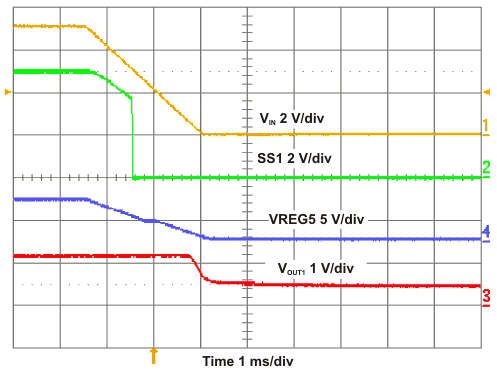

Figure 4-17 TPS54295EVM Converter 1 Shut-Down Relative to VINThe TPS54295EVM start-up waveform of converter 1 relative to EN1 is shown in Figure 4-18 and the shut-down waveform is shown in Figure 4-19.

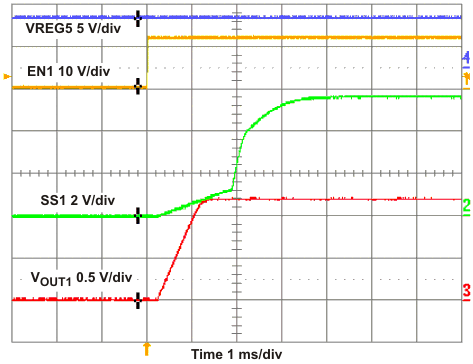

Figure 4-18 TPS54295EVM Start-Up Relative to EN1
Figure 4-19 TPS54295EVM Shut-Down Relative to EN1
