SLVU411A September 2010 – June 2021 TPS62120
5.2 Start-Up
Figure 5-2 through Figure 5-5 show the typical start-up performance for different TPS62120EVM boards.

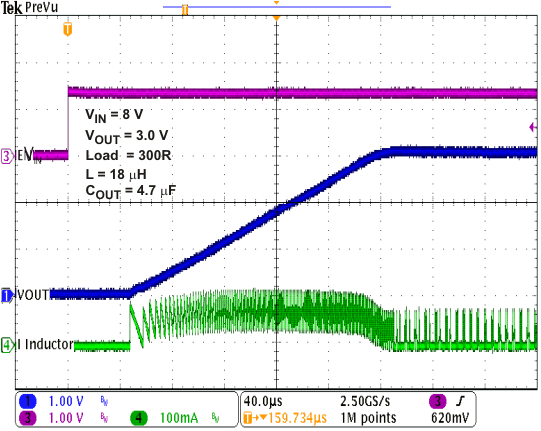

Figure 5-2 TPS62120EVM Startup into 300-Ω Load(VIN = 8.0 V, VOUT = 3.0 V)

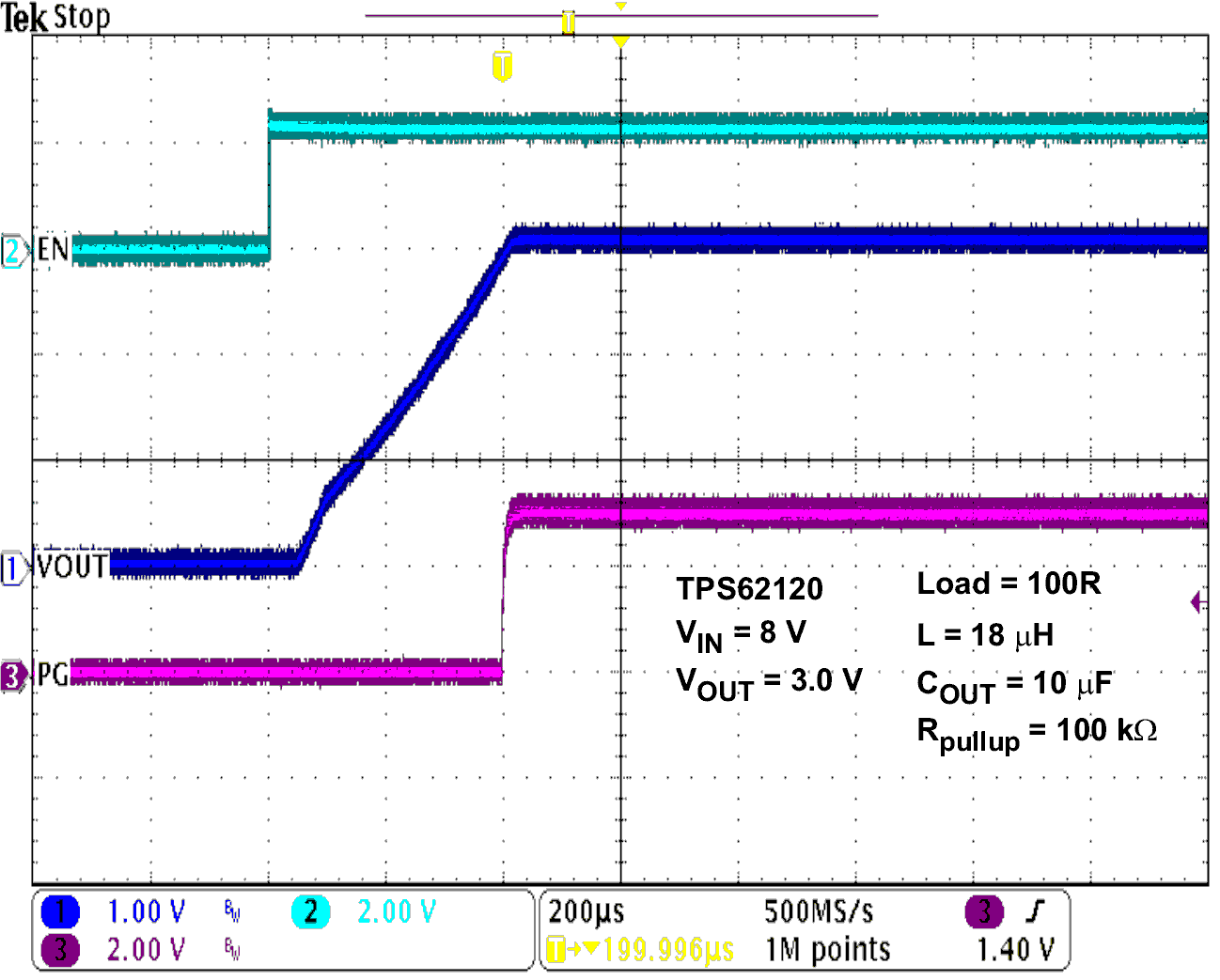

Figure 5-4 Power Good Output During Start-Up
Figure 5-3 TPS62120EVM Start-Up from a High-Impedance Source(VIN = 12.0 V, VOUT = 3.0 V)

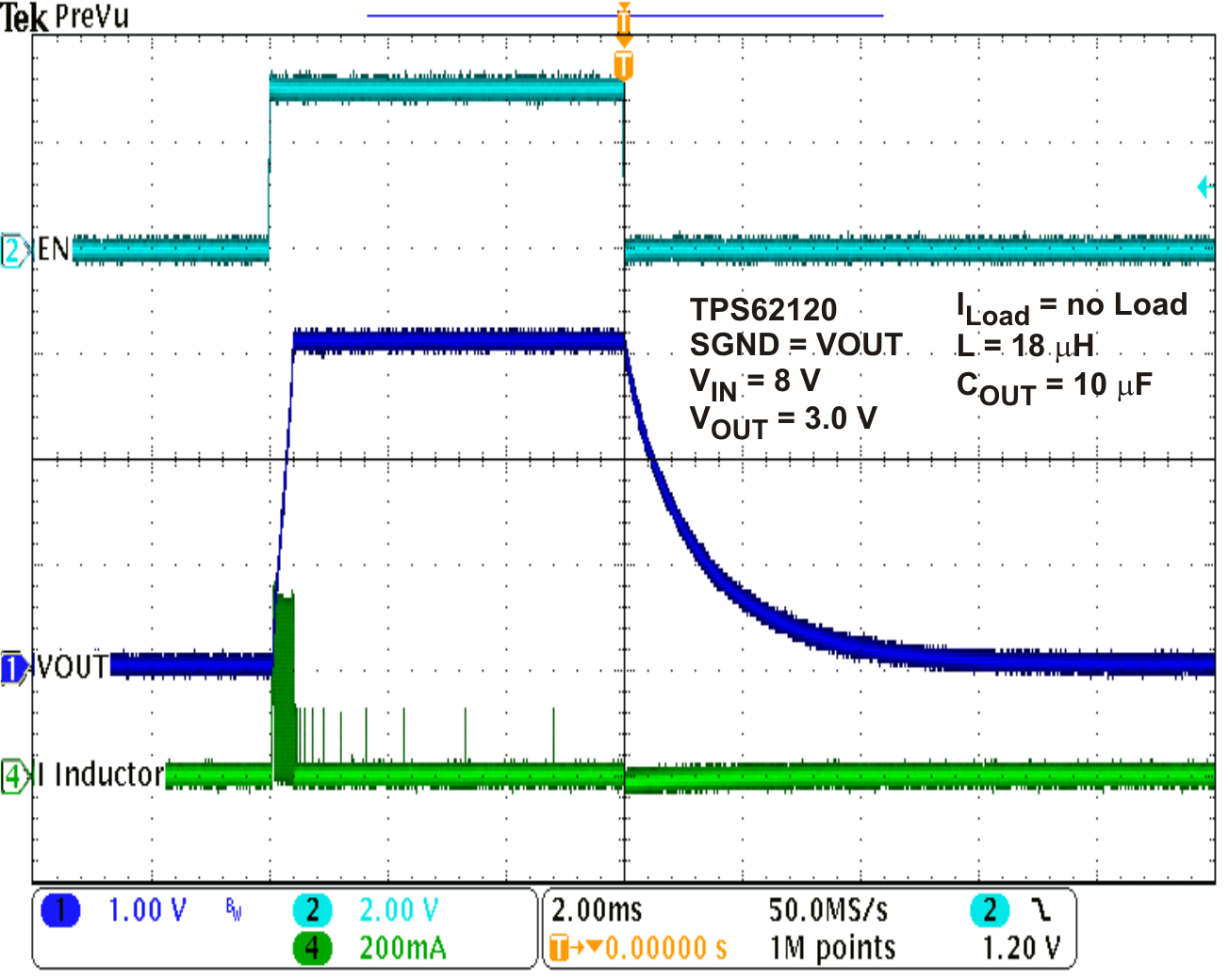

Figure 5-5 Output Discharge with SGND Pin Connected to VOUT
