SLVU382A August 2010 – September 2021 TPS54425
4.9 Start-Up

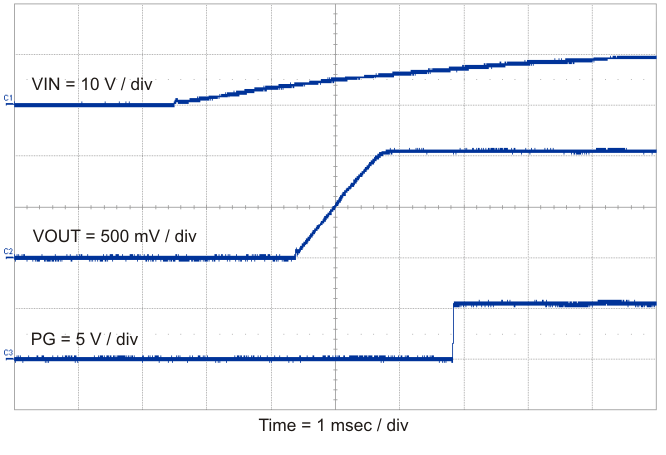

The TPS54425EVM-608 start-up waveform relative to VIN is shown in Figure 4-8.

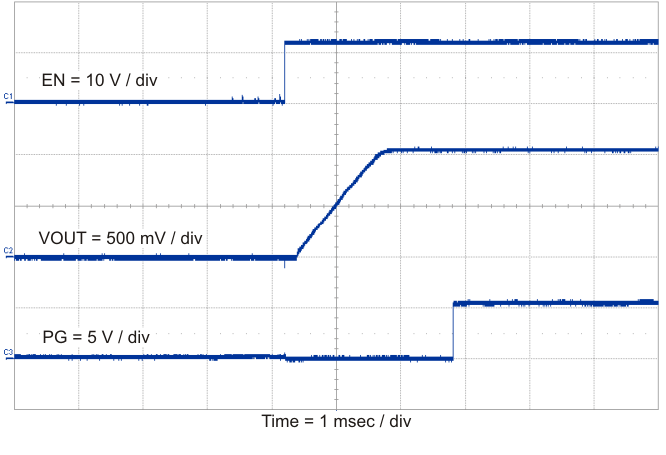

Figure 4-8 TPS54425EVM-608 Start-Up Relative to VINThe TPS54425EVM-608 start-up waveform relative to enable (EN) is shown in Figure 4-9.
Figure 4-9 TPS54425EVM-608 Start-Up Relative to EN
