SLUUC75B May 2020 – June 2021 TPS566238
The TPS566238EVM output voltage ripple is shown in Figure 4-3 and Figure 4-4. The output currents are as indicated.

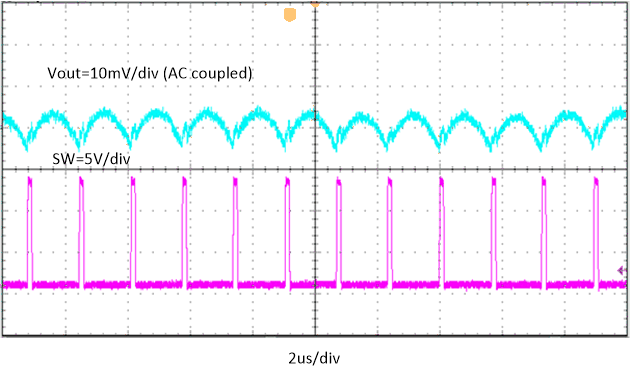

Figure 4-3 TPS566238 Output Voltage Ripple, IOUT = 0.01A

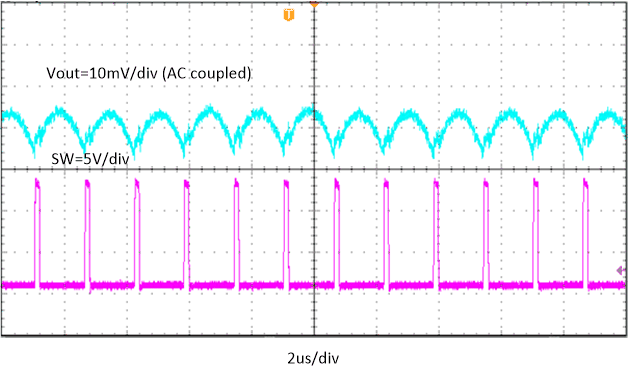

Figure 4-4 TPS566238 Output Voltage Ripple, IOUT = 6A
