2.5.2 Soft Start Initial Voltage Programming

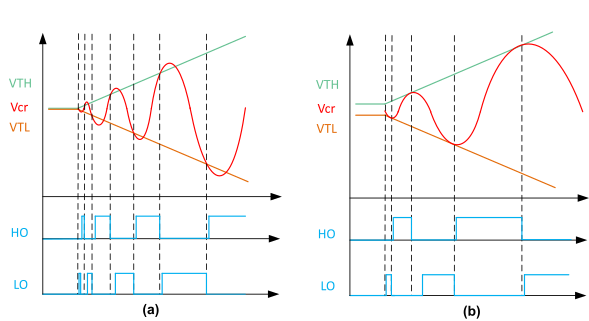

Figure 2-22 a) With Soft Start Initial Voltage (Vssinit) is Zero
Volts b) Vssinit not at 0 V- Figure 2-22 shows that, Vssinit voltage adjusts the maximum startup switching frequency. This helps to prevent the hard switching at the startup which is shown in Figure 2-23.
- The suggested range for the Vssinit would be 0 V to 1 V.

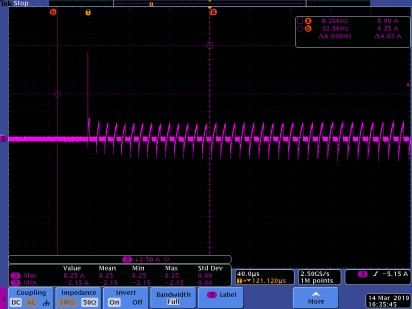

Figure 2-23 High
Side MOS Current Without Initial Voltage on LL/SS Pin

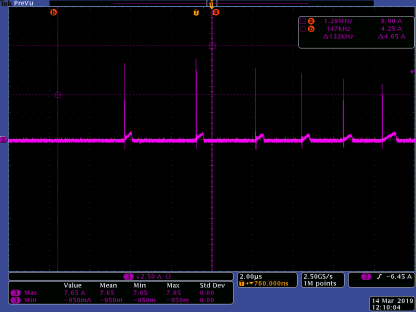

Figure 2-24 High
Side MOS Current with 0.5 V Initial Voltage on LL/SS Pin
