SLAT159 August 2021 TMUXHS4412
3 Test Report
3.1 Test Summary
TX presets: BRCM, J16 meets the PCI Express? 4.0 requirement.
ISI Eye openings:
- BRCM meets all preset requirements
- J16 is able to pass P06, P07, P08, and P09 only. Technically, at least one preset needs to pass to claim compatibility
Figure 3-1 through Figure 3-4 illustrate the test reports for preset and ISI eye opening test.

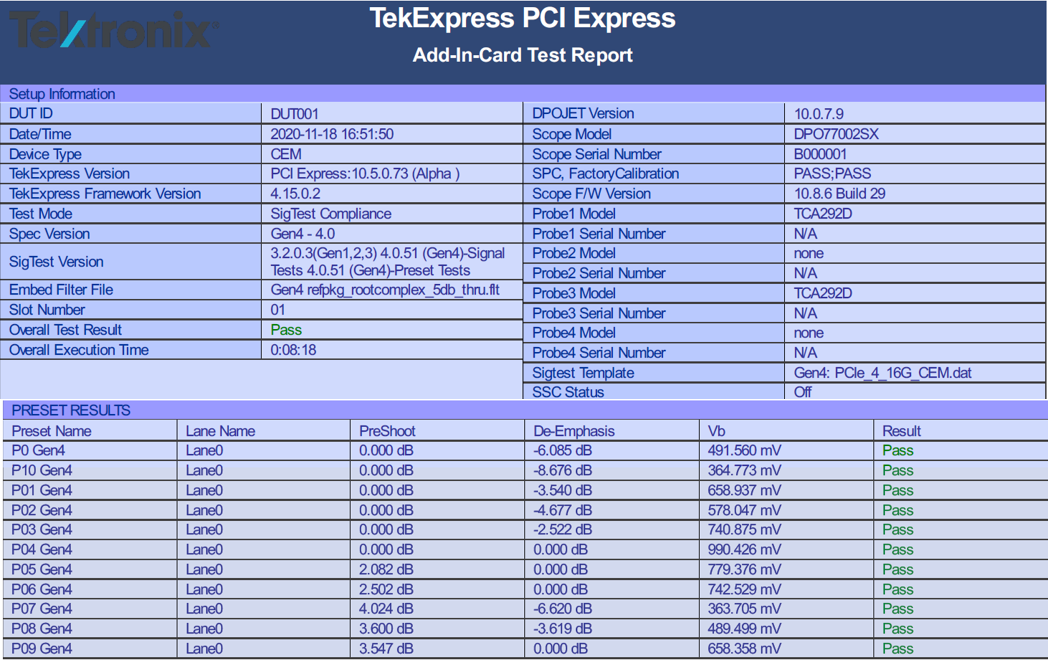

Figure 3-1 Test Report of Presets - 1

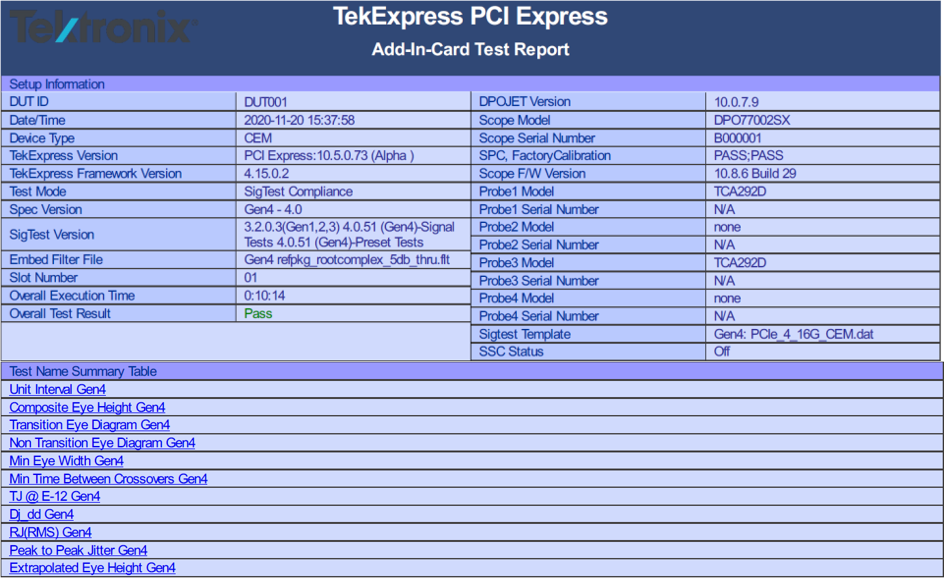

Figure 3-2 ISI Test Report

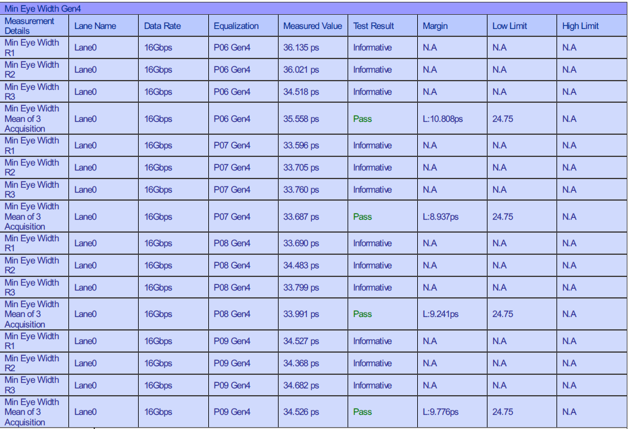

Figure 3-3 Test Report of ISI Eye Diagram Test

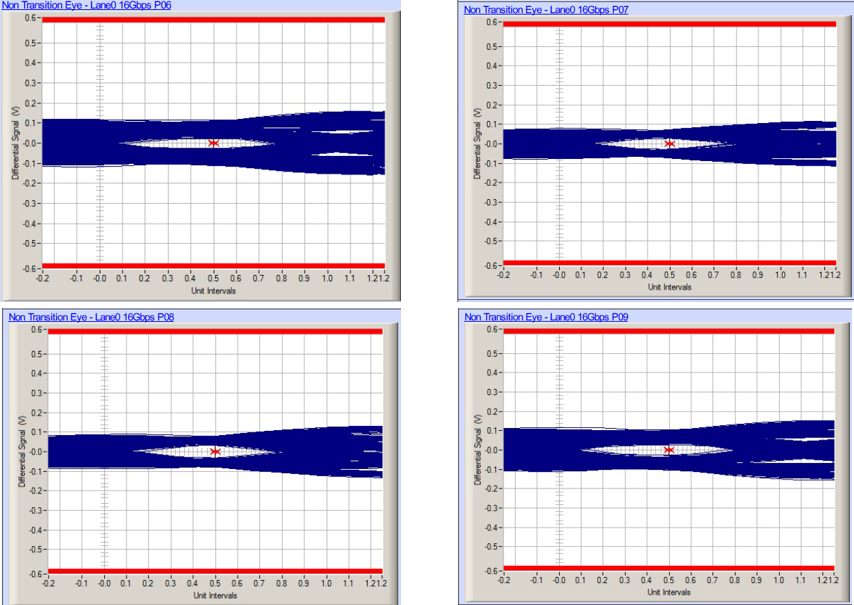

Figure 3-4 ISI Eye Diagram
