3 Pin Failure Mode Analysis (Pin FMA)

This section provides a Failure Mode Analysis (FMA) for the pins of the TPS6292xx-Q1. The failure modes covered in this document include the typical pin-by-pin failure scenarios:

Pin short-circuited to Ground (see Table 3-2)
Pin open-circuited (see Table 3-3)
Pin short-circuited to an adjacent pin (see Table 3-4)
Pin short-circuited to VIN (see Table 3-5)

Table 3-2 through Table 3-5 also indicate how these pin conditions can affect the device as per the failure effects classification in Table 3-1.

Table 3-1 TI Classification of Failure Effects

Class	Failure Effects
A	Potential device damage that affects functionality
B	No device damage, but loss of functionality
C	No device damage, but performance degradation
D	No device damage, no impact to functionality or performance

Figure 3-1 shows the TPS6292xx-Q1 pin diagram. For a detailed description of the device pins please refer to the 'Pin Configuration and Functions' section in the TPS6292xx-Q1 datasheet.

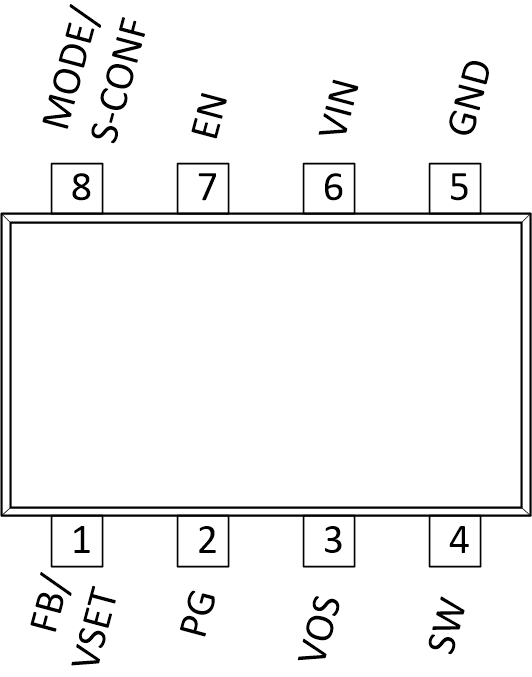

Figure 3-1 PIin Diagram

Following are the assumptions of use and the device configuration assumed for the pin FMA in this section:

The device is operating in one of the two typical application configurations show in Figure 3-2 or Figure 3-3.

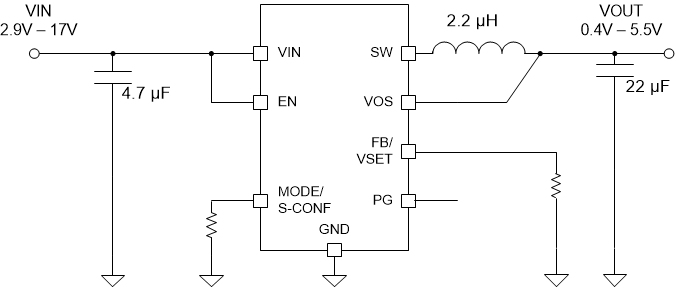

Figure 3-2 Adjustable V_O Operation Schematic

Figure 3-3 Set-able V_O Operation Schematic

Table 3-2 Pin FMA for Device Pins Short-Circuited to Ground

Pin Name	Pin No.	Application Configuration	Description of Potential Failure Effect(s)	Failure Effect Class
FB/VSET	1	External FB⁽³⁾	Loss of output voltage regualtion. Output voltage will go to Vin Possible device damge. ⁽²⁾ Abs Max voltage may be exceeded.	A
FB/VSET	1	Internal FB⁽⁴⁾	Device will regulate output voltage to 1.2V	D
PG	2		Loss of PG functionality	C
VOS	3		Loss of output volatge	B
SW	4		Possible device damage	A
GND	5		Intended pin connection	D
VIN	6		Deice does not power on	B
EN	7		Device does not power on	B
MODE/S-CONF	8	External FB⁽³⁾	Part will run in 2.5MHz APFM with AEE mode⁽⁵⁾	C⁽⁵⁾
MODE/S-CONF	8	Internal FB⁽⁴⁾	Loss of output voltage regualtion. Output voltage will go to Vin⁽⁵⁾ Possible device damge. ⁽²⁾ Abs Max voltage may be exceeded.	A⁽⁵⁾

Table 3-3 Pin FMA for Device Pins Open-Circuited

Pin Name	Pin No.	Application Configuration	Description of Potential Failure Effect(s)	Failure Effect Class
FB/VSET	1	External FB⁽³⁾	Loss of output voltage regualtion. Output voltage may go to Vin Possible device damge. ⁽²⁾ Abs Max voltage may be exceeded.	A
FB/VSET	1	Internal FB⁽⁴⁾	Device will regulate output voltage to 3.3V	D
PG	2		Loss of PG functionality	C
VOS	3	External FB⁽³⁾	Open loop operation. Undetermined outputt voltage behavior	B
VOS	3	Internal FB⁽⁴⁾	Loss of output voltage regualtion. Output voltage may go to Vin Possible device damge. ⁽²⁾ Abs Max may be exceeded.	A
SW	4		Loss of output voltage regulation	B
GND	5		Potential device damage	A
VIN	6		Device does not power on	B
EN	7		Device does not power on	B
MODE/S-CONF	8	External FB⁽³⁾	Part will run in 2.5MHz APFM with AEE mode⁽⁵⁾	C⁽⁵⁾
MODE/S-CONF	8	Internal FB⁽⁴⁾	Loss of output voltage regualtion. Output voltage will go to Vin⁽⁵⁾ Possible device damge. ⁽²⁾ Abs Max voltage may be exceeded.	A⁽⁵⁾

Table 3-4 Pin FMA for Device Pins Short-Circuited to Adjacent Pin

Pin Name	Pin No.	Shorted to	Application Configuration	Description of Potential Failure Effect(s)	Failure Effect Class
FB/VSET	1	PG		Loss of output voltage regualtion. Possible device damge⁽¹⁾. Abs Max voltage may be exceeded if PG is connected to Vin through a resitor.	A
PG	2	VOS		Loss of output voltage regualtion. Possible device damge⁽¹⁾. Abs Max voltage may be exceeded if PG is connected to Vin through a resitor.	A
VOS	3	SW		Loss of output voltage regualtion. Possible device damge⁽¹⁾. Abs Max volatge may be exceeded.	A
GND	5	VIN		Device not functional	B
VIN	6	EN		Device cannot be disabled	B
EN	7	MODE/S_CONF	External FB⁽³⁾	Part will run in 2.5MHz FPFM mode	C
EN	7	MODE/S_CONF	Internal FB⁽⁴⁾	Loss of output voltage regualtion. Output voltage will go to Vin⁽⁵⁾ Possible device damge. ⁽²⁾ Abs Max voltage may be exceeded.	A

Table 3-5 Pin FMA for Device Pins Short-Circuited to VIN

Pin Name	Pin No.	Application Configuration	Description of Potential Failure Effect(s)	Failure Effect Class
FB/VSET	1		Possible device damge⁽¹⁾. Abs Max volatge may be exceeded.	A
PG	2		Potential device damage. Abs Max current rating for pin	A
VOS	3		Possible device damge⁽¹⁾. Abs Max volatge may be exceeded.	A
SW	4		Possible device damge. ⁽²⁾ Abs Max voltage may be exceeded.	A
GND	5		Device not functional	B
VIN	6		Intended pin connection	D
EN	7		Device cannot be disabled	B
MODE/S-CONF	8	External FB⁽³⁾	Part will run in 2.5MHz FPFM mode ⁽⁵⁾	C⁽⁵⁾
MODE/S-CONF	8	Internal FB⁽⁴⁾	Loss of output voltage regualtion. Output voltage will go to Vin⁽⁵⁾ Possible device damge. ⁽²⁾ Abs Max voltage may be exceeded.	A⁽⁵⁾

(1) Damage will occur if Vin is greater than the 6-V Absolute Maximum Rating for the pin

(2) Damage will occur if Vin is greater than the 6-V Absolute Maximum Rating for the VOS pin.

(3) Applies to a typical application schematic as show in Figure 3-2

(4) Applies to a typical application schematic as show in Figure 3-3

(5) Assumes Pin FMA condition occurs prior to device being enabled. If Pin FMA conditon occurs after device is operating, the part will continue operating as previously configured.
